QoS
Advanced Mode
SPS208G/SPS224G4/SPS2024 Service Provider Switches User Guide 181
9

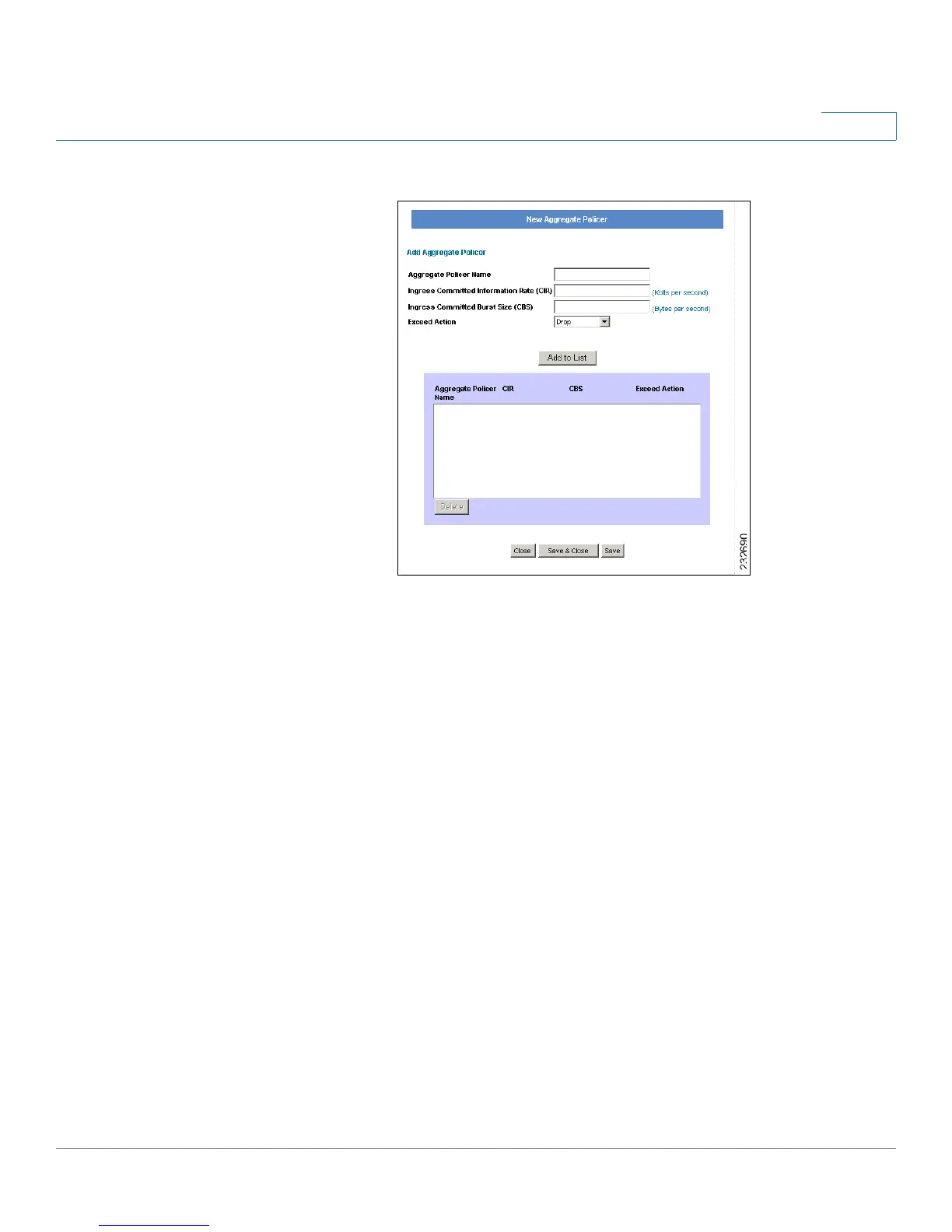

Figure 81 New Aggregate Policer Screen
The
New Aggregate Policer Screen
is divided into the following areas:
• Aggregate Policer Parameters
• Aggregate Policer Table
The Aggregate Policer Parameters area contains the following fields:
• Aggregate Policer Name— Specifies the Aggregate Policer Name.
• Ingress Committed Information Rate (CIR) — Defines the Committed
Information Rate (CIR) in bits per second.
• Ingress Committed Burst Size (CbS) — Defines the Committed Burst Size
(CbS) in bytes per second.
• Exceed Action — Action assigned to incoming packets exceeding the CIR.
Possible values are:
-
Drop
— Drops packets exceeding the defined CIR value.
-
Remark DSCP
—Remarks packet’s DSCP values exceeding the defined
CIR value.
-
None
— Forwards packets exceeding the defined CIR value.
STEP 3 Define the relevant fields.
