Spanning Tree
MSTP Instance Settings
SPS208G/SPS224G4/SPS2024 Service Provider Switches User Guide 203
10

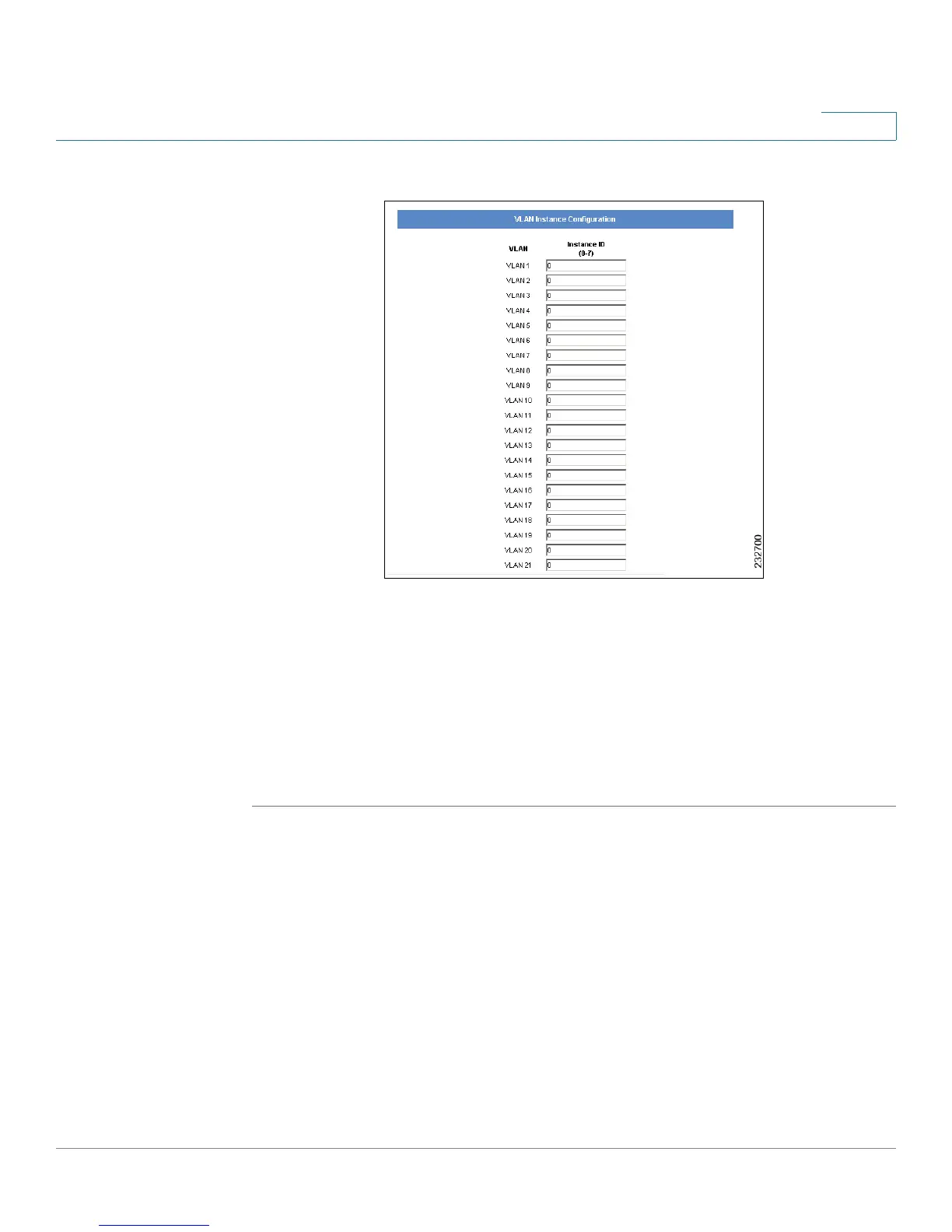

Figure 91 VLAN Instance Configuration Screen
The
VLAN Instance Configuration Screen
contains the following fields:
• VLAN — Indicates the VLAN for which the MSTP instance ID is defined.
• Instance ID (0-7) — Indicates the MSTP instance ID assigned to the VLAN.
The possible field range is 0-7.
STEP 3 Click Save & Close to save the modified Instance-to-VLAN mapping and close the
VLAN Instance Configuration Screen
(clicking Save keeps the
VLAN Instance
Configuration Screen
open). The device is updated.
