• Forward Transitions — Indicates the number of times the port has changed
from Forwarding state to Blocking state.
• Remain Hops — Indicates the hops remaining to the next destination.
STEP 2 Define the relevant fields.
STEP 3 Click Save Settings. The MSTP interface configuration is saved and the details
appear in the MSTP Interface Table on the bottom half of the screen. The device is
updated.

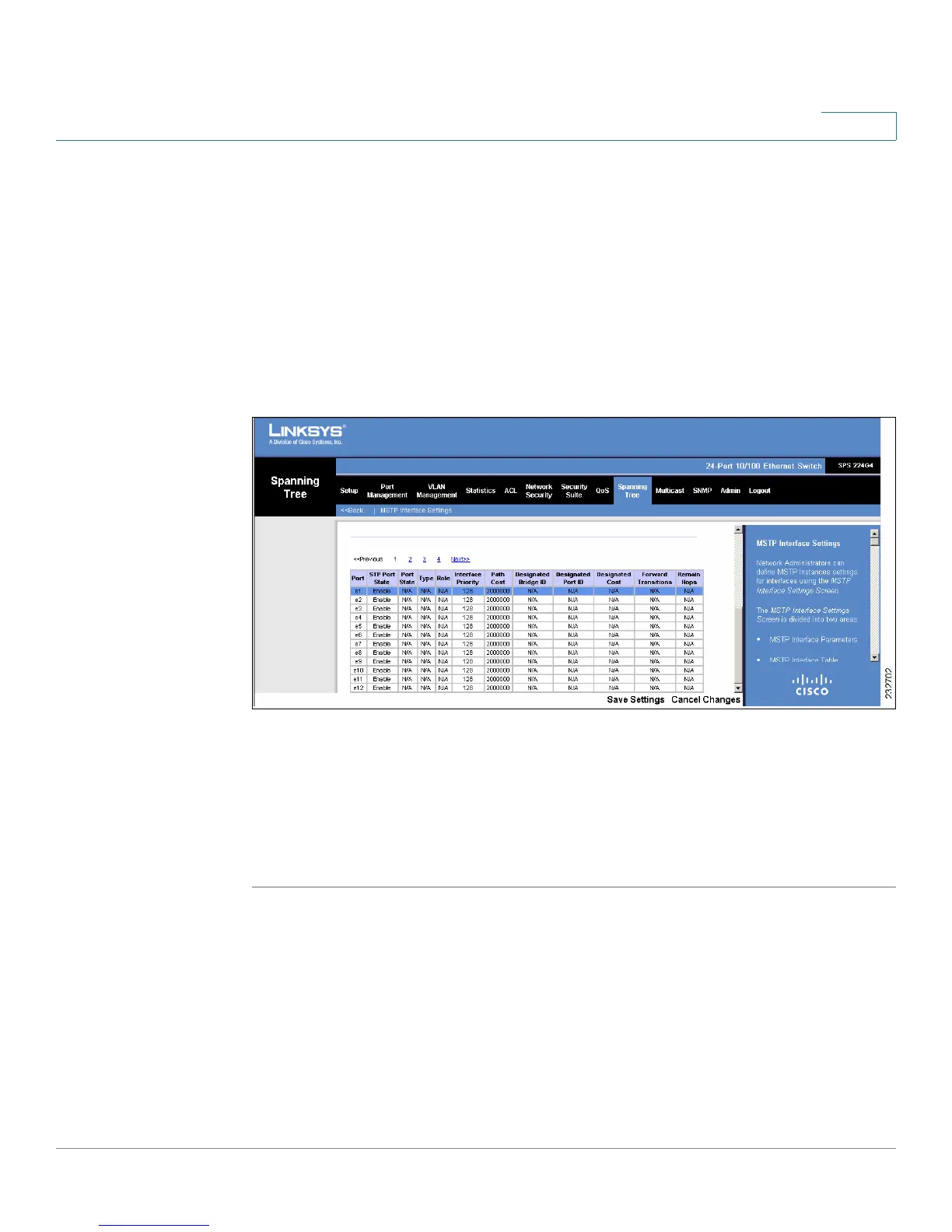

Figure 93 MSTP Interface Table
For 8-port devices, the MSTP Interface Table displays the interfaces on multiple
screens. To browse to a specific interface entry, click the Previous, 1, 2, and Next
links above the table.
For 24-port devices, the MSTP Interface Table displays the interfaces on multiple
screens. To browse to a specific interface entry, click the Previous, 1, 2, 3, and Next
links above the table.
