Port Management
Port Settings
SPS208G/SPS224G4/SPS2024 Service Provider Switches User Guide 36
3
To modify port settings:
STEP 1 Click Port Management > Port Settings. The
Port Settings Screen
opens.

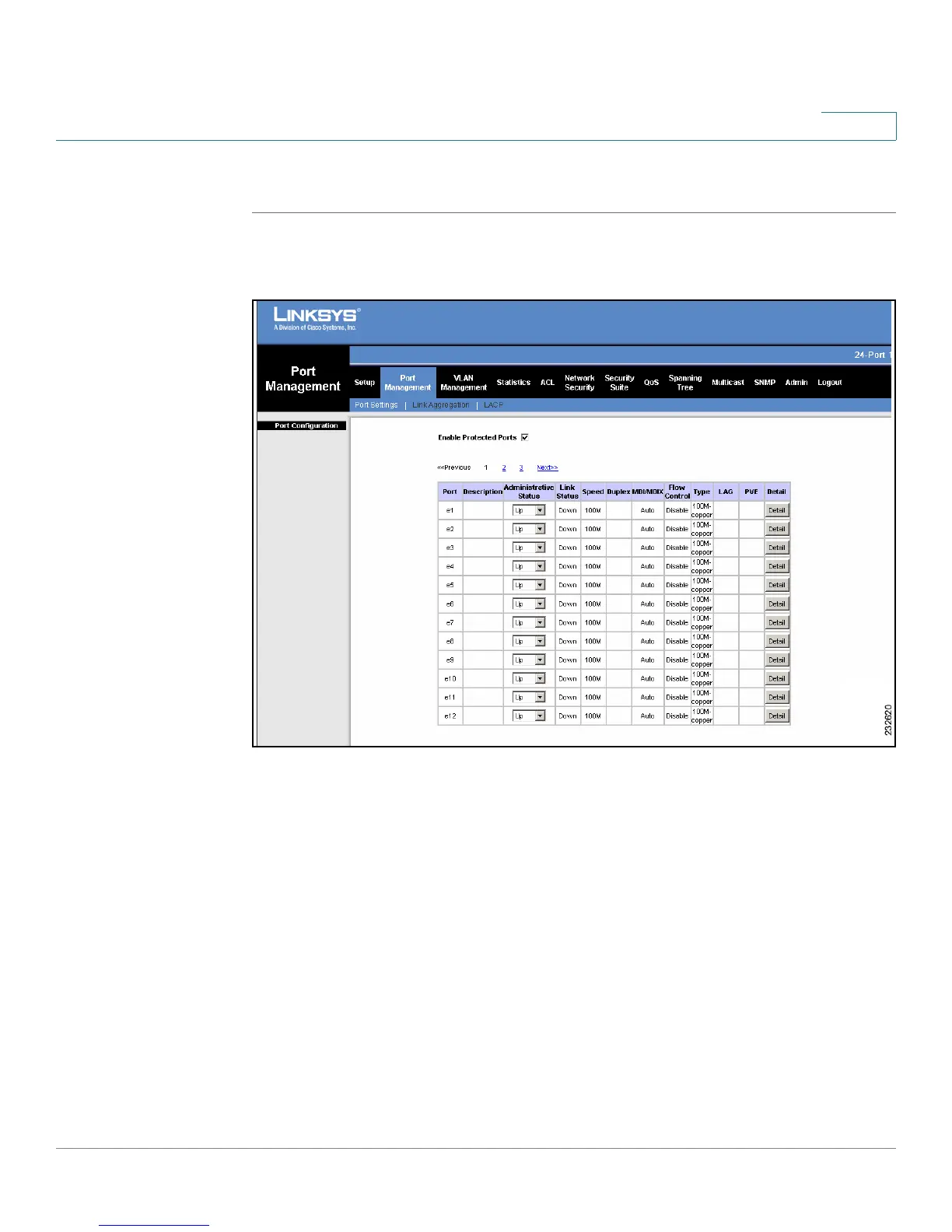

Figure 11 Port Settings Screen
For 24-port devices, the
Port Settings Screen
displays the ports on multiple
screens. To browse to a specific port entry, click the Previous, 1, 2, 3, and Next
links above the table.
The
Port Settings Screen
contains the following fields:
• Enable Protected Ports — The Protected Ports feature provides layer-2
isolation between ports that share the same broadcast domain (VLAN). The
feature defines two types of ports:
- Protected ports: Only sends traffic to uplink ports
- Uplink ports: Can send traffic to any port
When selected, all FE ports are defined as protected ports for each VLAN, so
that they are isolated from other ports within the same VLAN. The GE ports
remain as unprotected ports that function as normal VLAN member ports.
