ACL
IP Based ACL
SPS208G/SPS224G4/SPS2024 Service Provider Switches User Guide 99
6
To define IP based ACLs:
STEP 1 Click ACL > IP Based ACL. The
IP Based ACL Screen
opens.

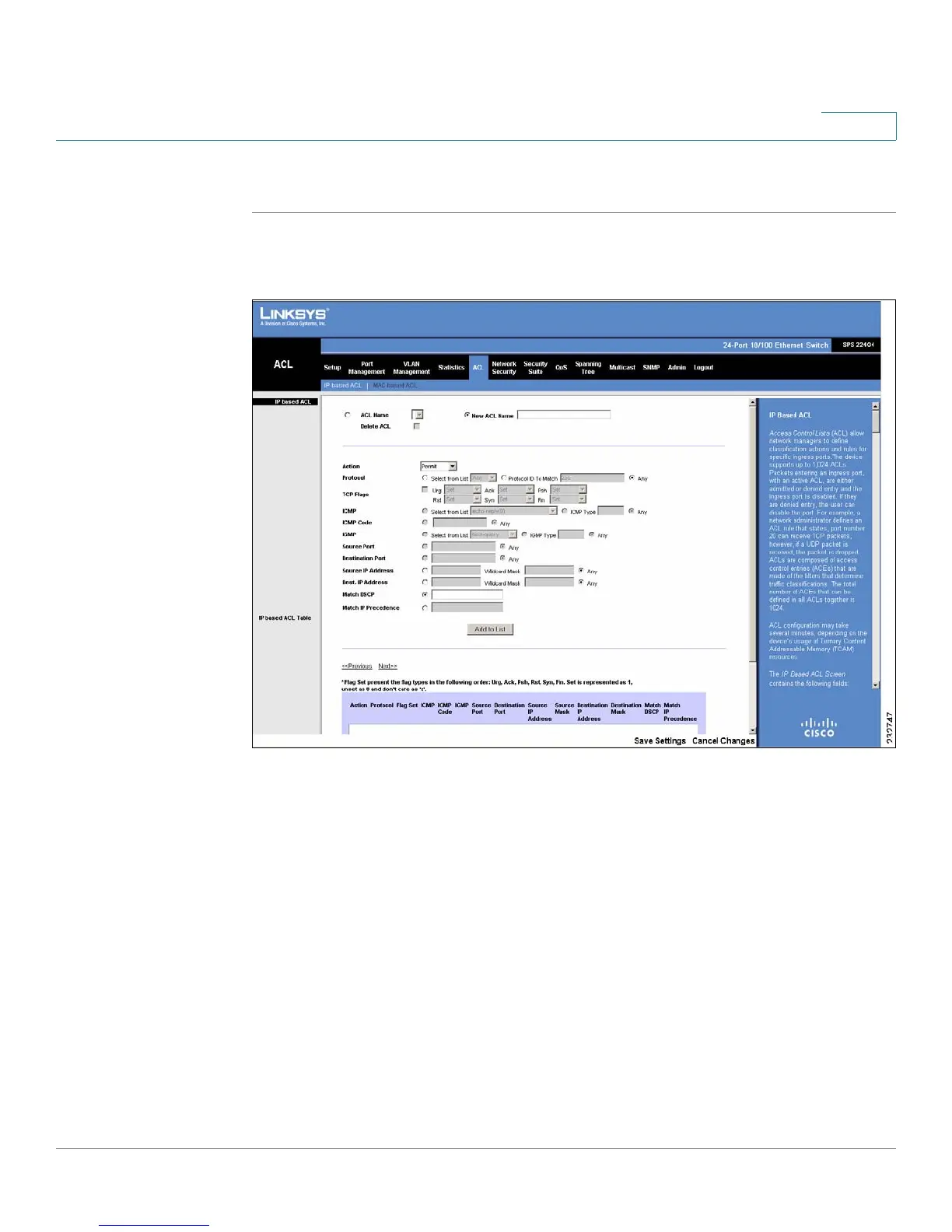

Figure 44 IP Based ACL Screen
The
IIP Based ACL Screen
contains the following fields:
• ACL Name — User-defined ACLs.
• New ACL Name — Defines a new ACL name. Enter the name in the box.
• Delete ACL — Removes the IP based ACLs. The possible field values are:
-
Checked
— Deletes the selected IP based ACL.
-
Unchecked
— Maintains the IP based ACLs.
STEP 2 To display an IP Based ACL configuration, select an ACL Name or enter a new
name to create a new ACL.
• Action — Indicates the ACL forwarding action. The possible field values are:
-
Permit
— Forwards packets which meet the ACL criteria.
To Next Page
