Cisco Telepresence MX800 User Manual

39
D1534504 User Guide
Cisco TelePresence
Produced: November 2016 for CE 8.2
All contents © 2010–2016
Cisco Systems, Inc. All rights reserved.
Share content
Change Presentation Layout In a Call
You may change the layout of the
screen during presentations. Typical
options available will be with or
without showing the presenter and
showing the presenter as either
a PiP (Picture in Picture) or PoP
(Picture outside Picture).
The layout options available on
your system may dier from those
shown here, but the layouts shown
are always those you may choose
between.

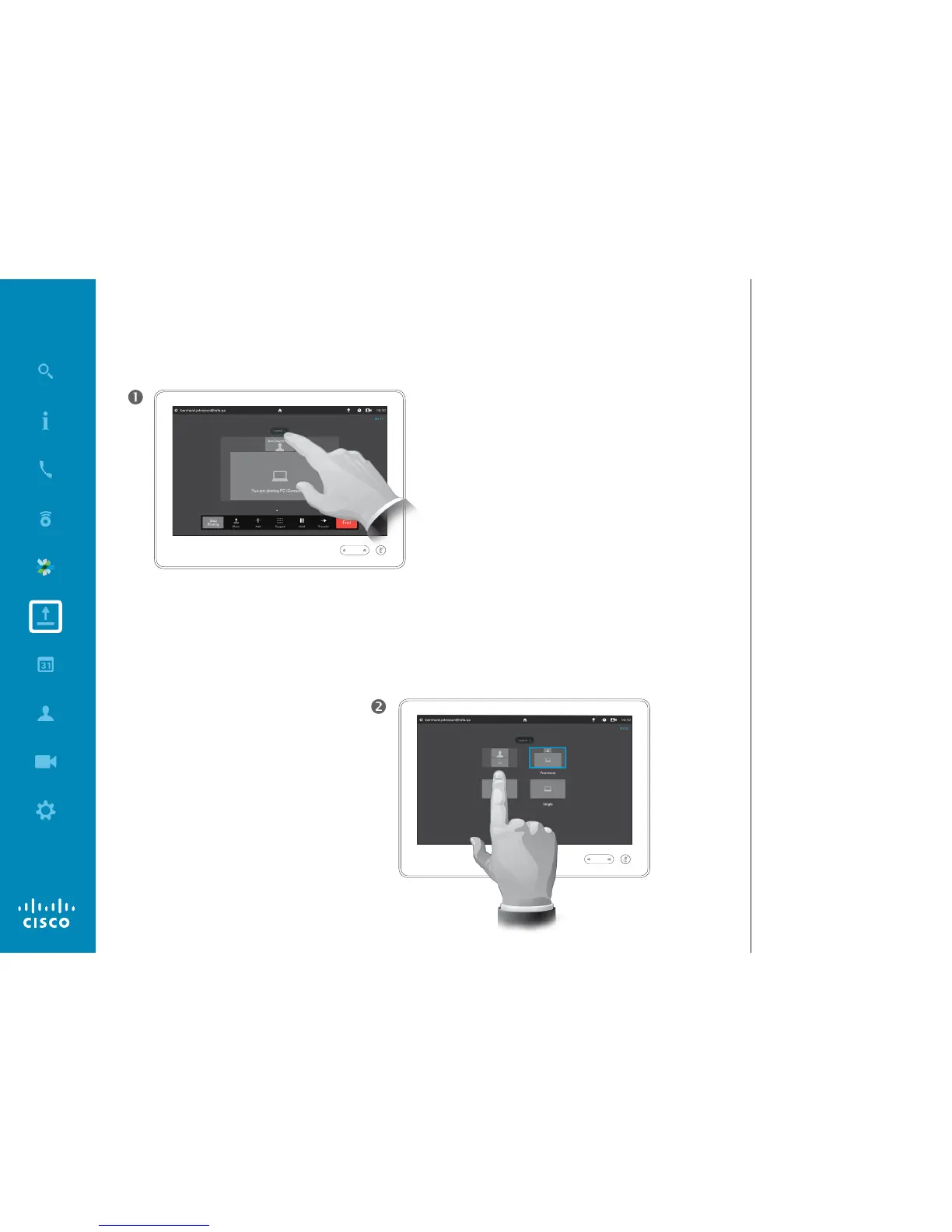

About Presentation Layout
Tap Layout to invoke the layout options.
Select your preferred layout
by tapping it.

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
