Camera
Move the Selfview PiP
The Selfview shows what others see
from your video system. You will
normally use it to conrm that they
see what you want them to see.
The Selfview appears as a PiP
(Picture-in-Picture).
From time to time you may want to
have the Selfview activated during
the meeting. This could, for example,
be to ensure that a lecturer in your
room remains seen on the screen
despite constantly moving around.
It may happen that the current
position of the Selfview blocks
important parts of the image on your
screen. You may therefore want to
move it.
Why Move the Selfview?
As soon as it turns
blue drag the selfview
to the new location.
Possible locations are
indicated.

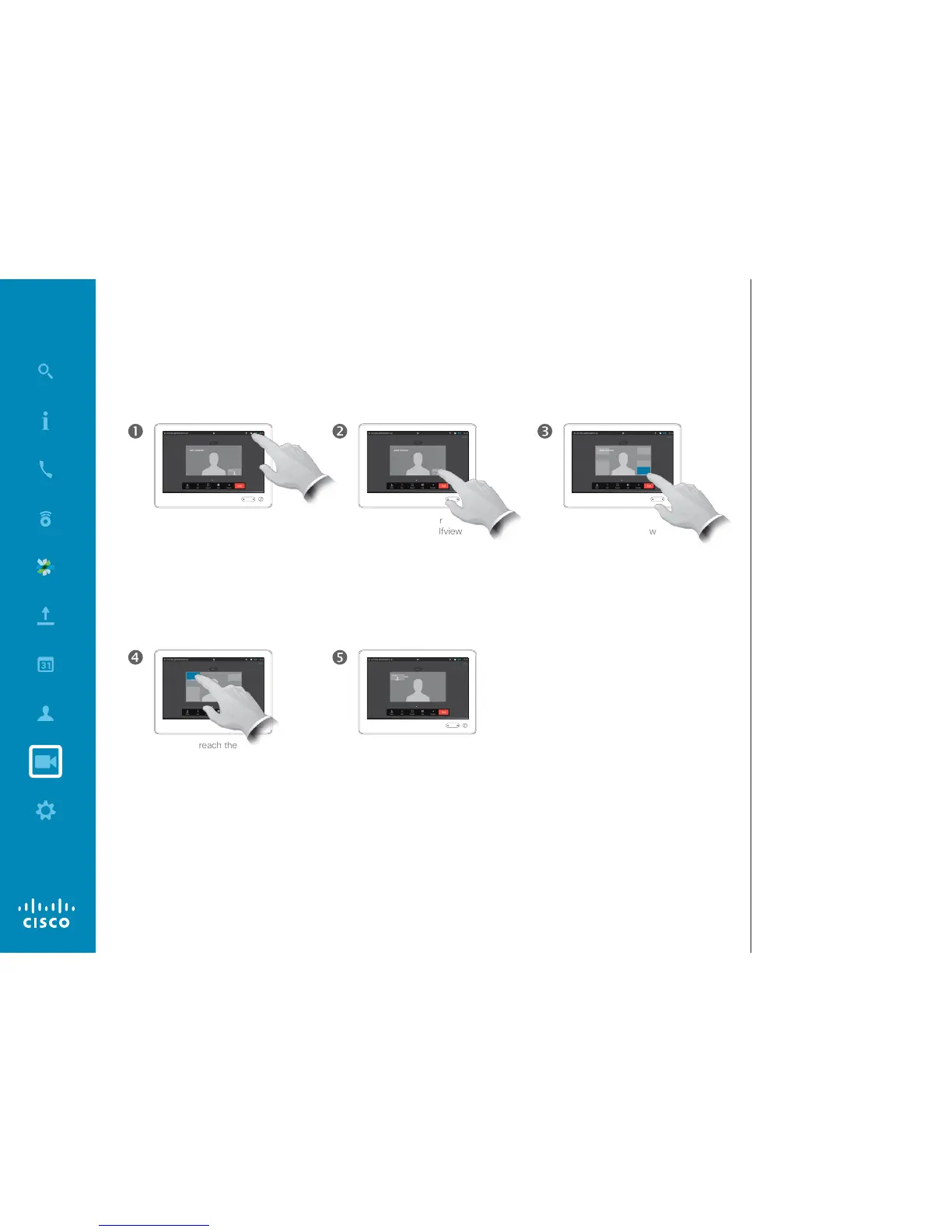

Tap Selfview in the upper right
part of the screen to invoke the
selfview, if needed.
Press and hold your
nger within the selfview
area.
Once you reach the
location you want to
have it in, lift your nger
from the touchscreen.
The selfview will now assume
its new location.

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
