Camera

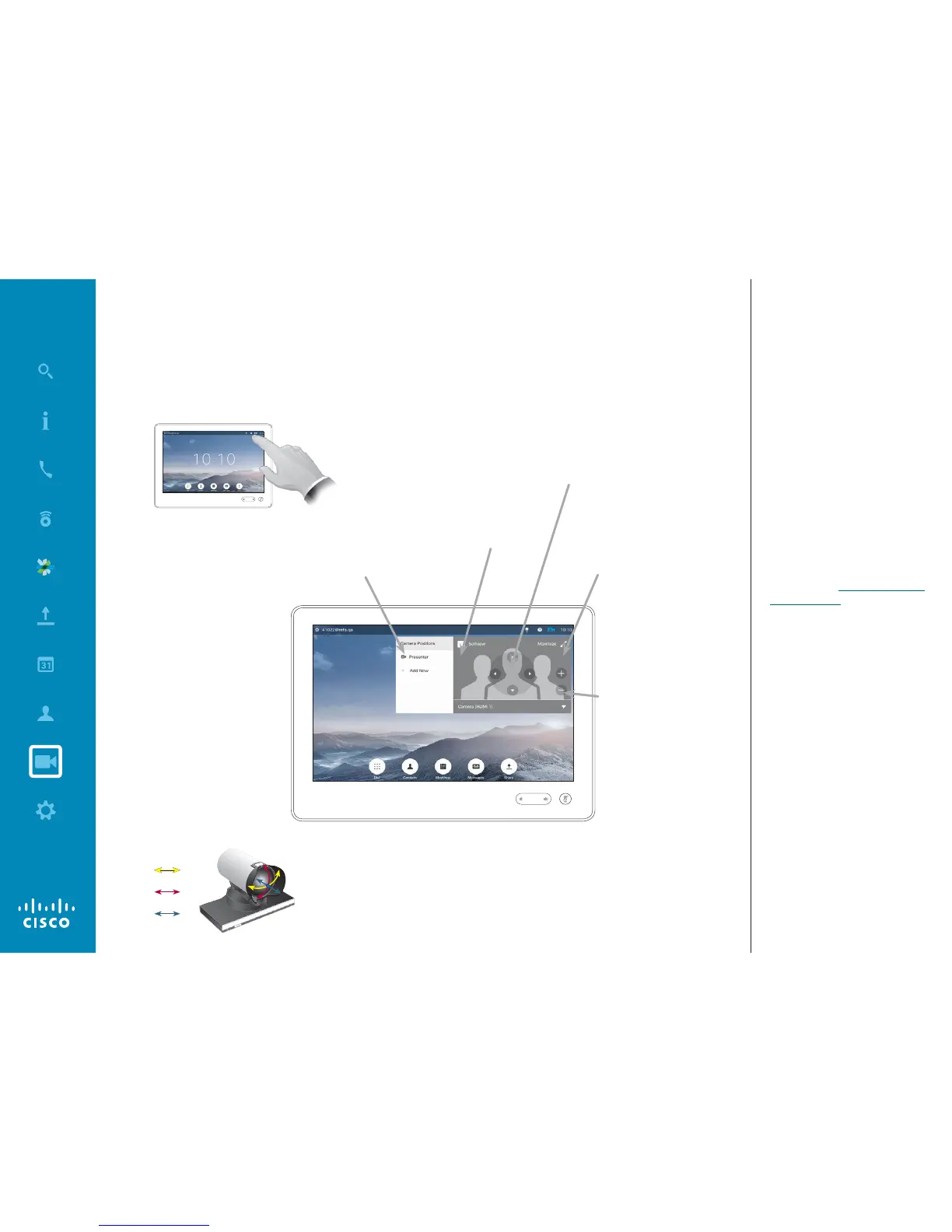

View Camera Settings
Tap Camera to invoke the
camera adjustment menu.
Turn Selfview
On and O.
Maximize/minimize Selfview.
Zoom in and out.
Pan and tilt controls.
Any camera presets
dened will be listed
here.
About Camera Settings
The camera settings let you control
the zoom, pan and tilt of the camera
as well as dene and edit camera
position presets.
In addition selfview (the image that
the others see from your system)
can be turned on and o as well as
be shown minimized or maximized.
If the position of the selfview blocks
important parts of the image on your
screen, it can be moved. How to do
this is shown in “Move the Selfview
PiP” on page 60.
Pan
Tilt
Zoom
