Cisco Telepresence MX800 User Manual

54
D1534504 User Guide
Cisco TelePresence
Produced: November 2016 for CE 8.2
All contents © 2010–2016
Cisco Systems, Inc. All rights reserved.
Camera
Speaker Tracking
Systems equipped with a speaker
tracking camera system use two
cameras working together with
a built-in microphone array. The
system will track and show the
person speaking so that you won’t
have to use the Camera Control
menu or Camera Presets to zoom in
and out.
When speaker tracking has been
activated, the camera position
presets will still be available.
However, if you tap a camera
position preset while in speaker
tracking mode, one of the cameras
will respond accordingly and the
speaker tracking will be deactivated.
Activate speaker tracking as shown
on this page again, if needed.
Note S
peaker tracking will not work if
the microphones are muted.
Speaker tracking may be expanded
to include the Snap to Whiteboard
feature, as outlined on the following
page.
About Speaker Tracking

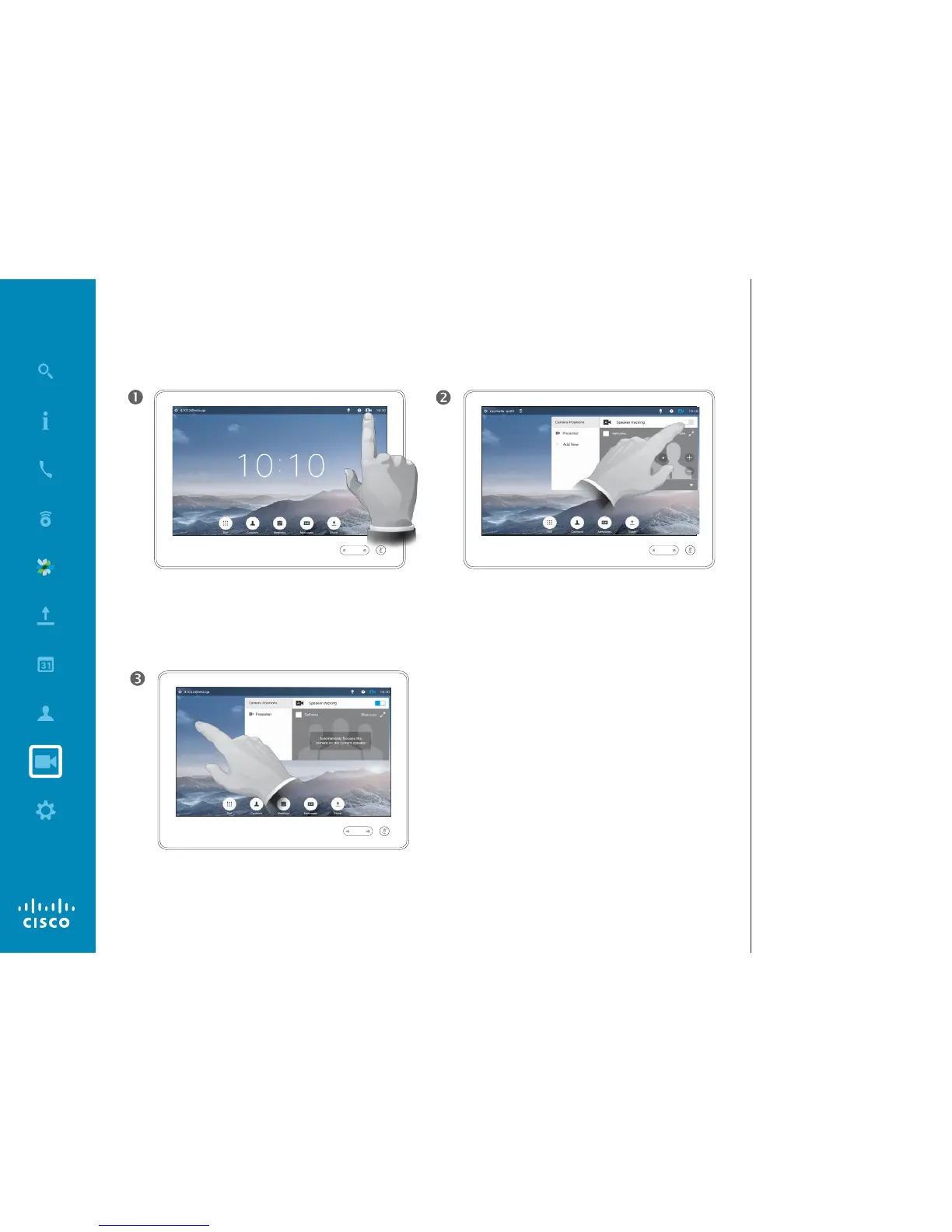

To enable Speaker Tracking, tap Camera, in the upper
right corner.
Activate the Speaker Tracking feature by tapping the
button in the upper right corner.
Tap anywhere outside the menu to exit.
To deactivate Speaker Tracking, repeat the procedure.

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
