Cisco Telepresence MX800 User Manual

6
D1534504 User Guide
Cisco TelePresence
Produced: November 2016 for CE 8.2
All contents © 2010–2016
Cisco Systems, Inc. All rights reserved.
When set to Do Not Disturb,
ringtones are muted and call
attempts made by others to reach
you will appear as missed calls.
You may, however, place calls as
much as you like.
As default, there is a 60 minutes
timeout on the Do Not Disturb (after
which the system will return to
normal operation), but this may have
been changed to a dierent setting
by your video support team.
Note! Your video system may,
or may not, display all the icons
shown here. Some of the features
described in this user guide are
optional in certain markets and they
may therefore not apply to your
system.
Introduction to Video Conferencing

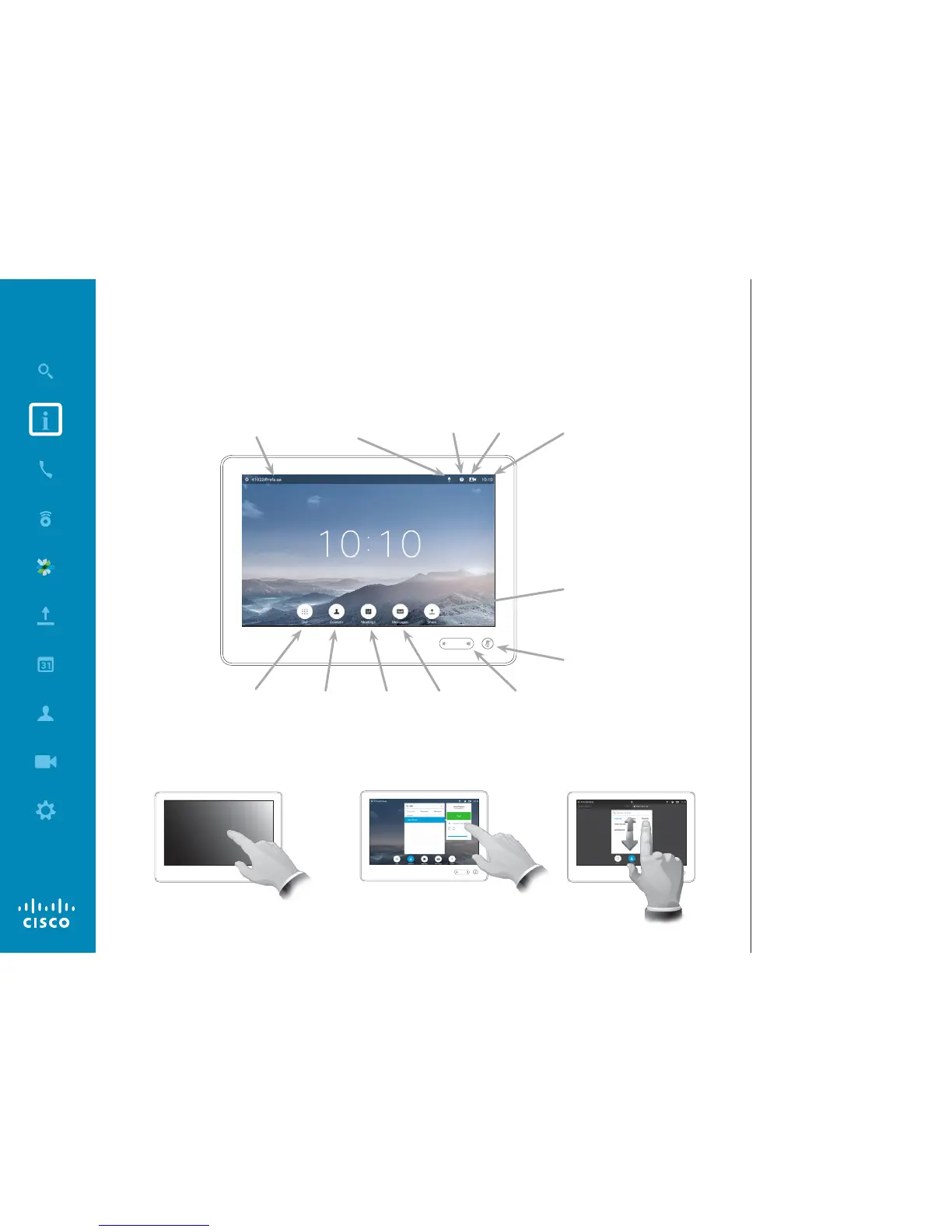

Tour the Touch Screen
About Do Not Disturb
Tap Dial to
invoke the dial
pad.
Tap Contacts
to invoke the
list of contacts
including Favorites,
Directory and
Recents.
Tap
Meetings to
invoke a list
of upcoming
scheduled
meetings.
Tap
Messages
to invoke the
voice mail
system, if
applicable.
Tap Share to
start sharing
content and
to conduct
presentations.
Press and hold
the left side of the
Volume button
to decrease the
loudspeaker volume
and the right side to
increase the volume.
Press the
Microphone
button to
mute / unmute
microphone.
Tap the touch screen
to wake up the system,
if needed.
Tap a button to activate
its function.
Scroll in lists
as on a smart
phone.
Time of day is
indicated in the
upper right corner.
Tap the upper left corner to activate /
deactivate the Do Not Disturb
feature, to activate /deactivate the
Standby feature, and to access the
Settings.
Tap the ? to
contact or access
the Help desk,
if applicable.
Tap Camera to
activate selfview
and camera
settings.
Room control
(see page 8)

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
