Cisco Telepresence MX800 User Manual

57
D1534504 User Guide
Cisco TelePresence
Produced: November 2016 for CE 8.2
All contents © 2010–2016
Cisco Systems, Inc. All rights reserved.
Camera
Control Own Camera
Existing camera presets can be used
right away during a call.
Your video system may have more
than one camera, for example one
camera showing the participants,
while another shows the whiteboard.
If you need to add new or modify
existing camera presets, this is done
in the same way as you do outside
a call—turn to “Edit Existing Camera
Position Preset” on page 53 for
details.
As an alternative to adding or editing
presets, a simple adjustment of your
camera’s pan tilt and zoom should
also be considered.
About Camera control
Pan
Tilt
Zoom
In a call or
outside a call
(shown here),
tap Camera.
Tap anywhere outside the
menu to exit.
Adjust Pan, Tilt and
Zoom. The selfview will
be temporarily turned on
to assist you.

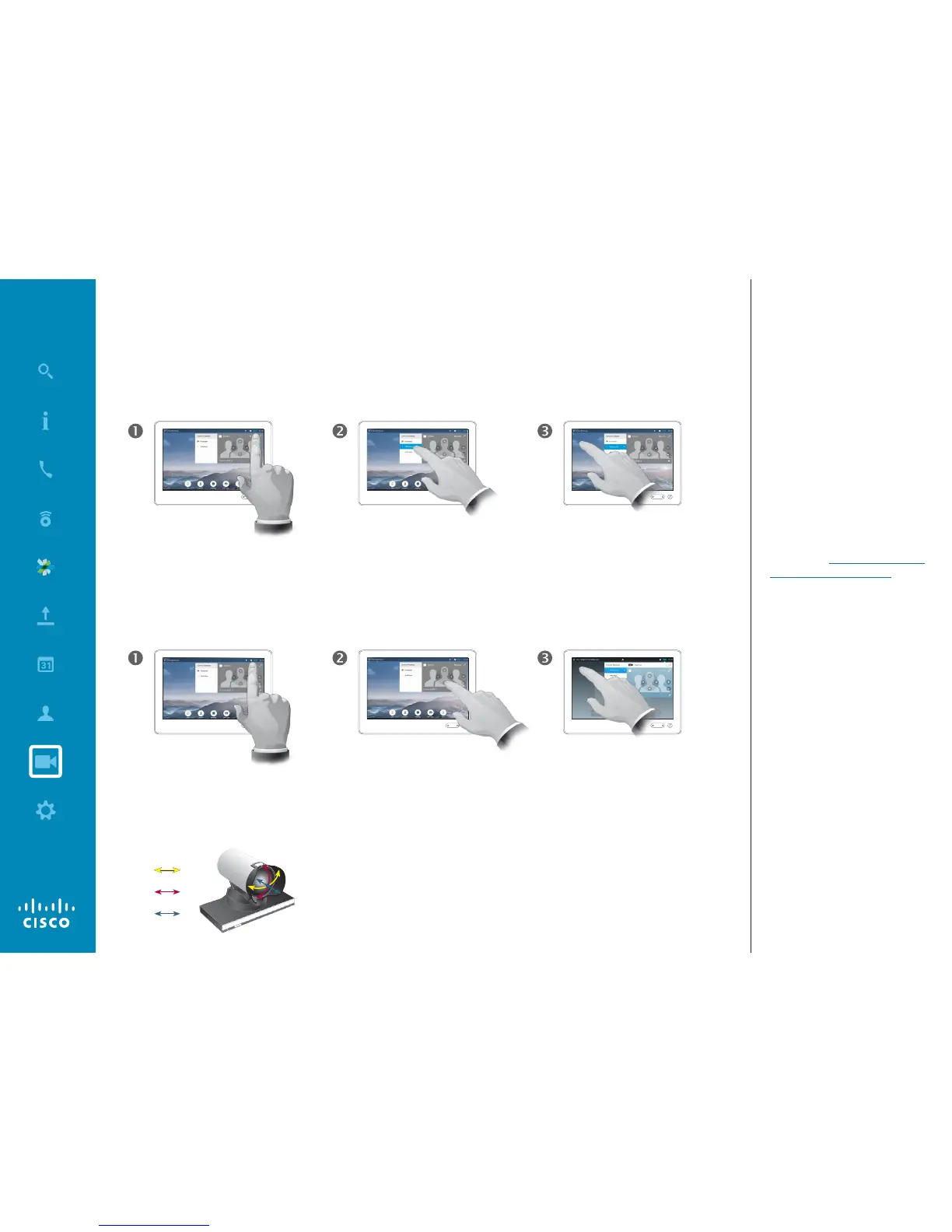

Adjusting your camera’s pan, tilt and zoom:
In a call or
outside a call
(shown here), tap
Camera.
Select the preset
to use.
Tap anywhere outside
the menu to exit.
Using your camera presets:
Pos. 1
Pos. 1

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
