Scheduled Meetings
View Meeting List
Your video system may be connected
to a management system capable
of scheduling video meetings. Any
meetings scheduled will then appear
in a List of Meetings.
The List of Meetings contains a list of
upcoming, meetings scheduled to
take place during the next 14 days
(this setting may have been changed
by your video support team). The
list is sorted using grouping headers.
The main grouping category is by
day (e.g.: TODAY, TOMORROW, then
WEDNESDAY, JUNE 20, 2014 etc).
If you tap an item in the list then
more information will become
available.
When a scheduled meeting appears
as Private meeting it will contain
information about the organizer only.
There will be no title, no expandable
meeting outline as well as no dial-in
information.

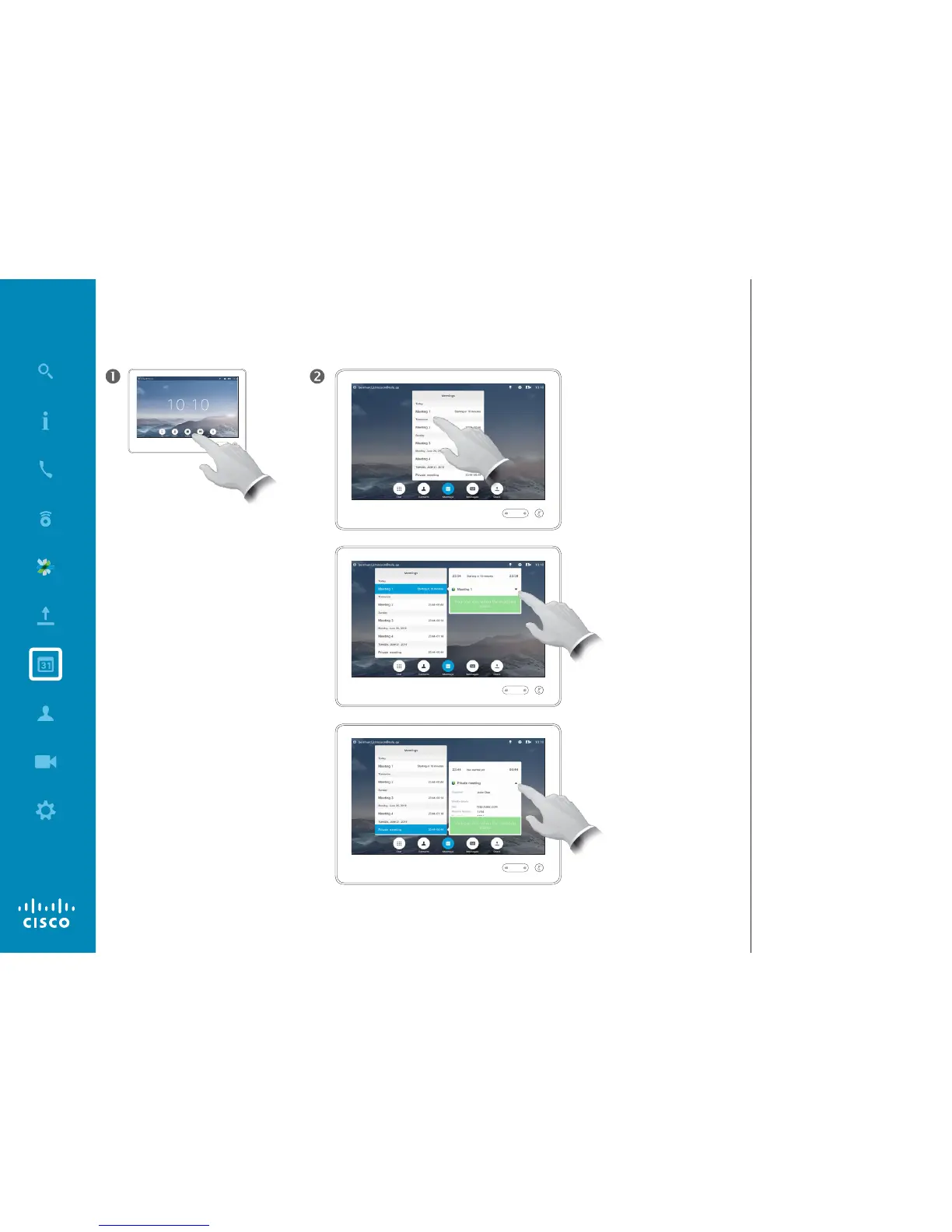

Meeting List Basics
Tap Meetings
to invoke the
list of meetings.
The meeting list will
typically look like
shown here.
Tap an entry in the
list to obtain more
information about the
meeting.
Tap on the little
expansion symbol
to get even more
information.
Tap again to collapse
the information box.

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
