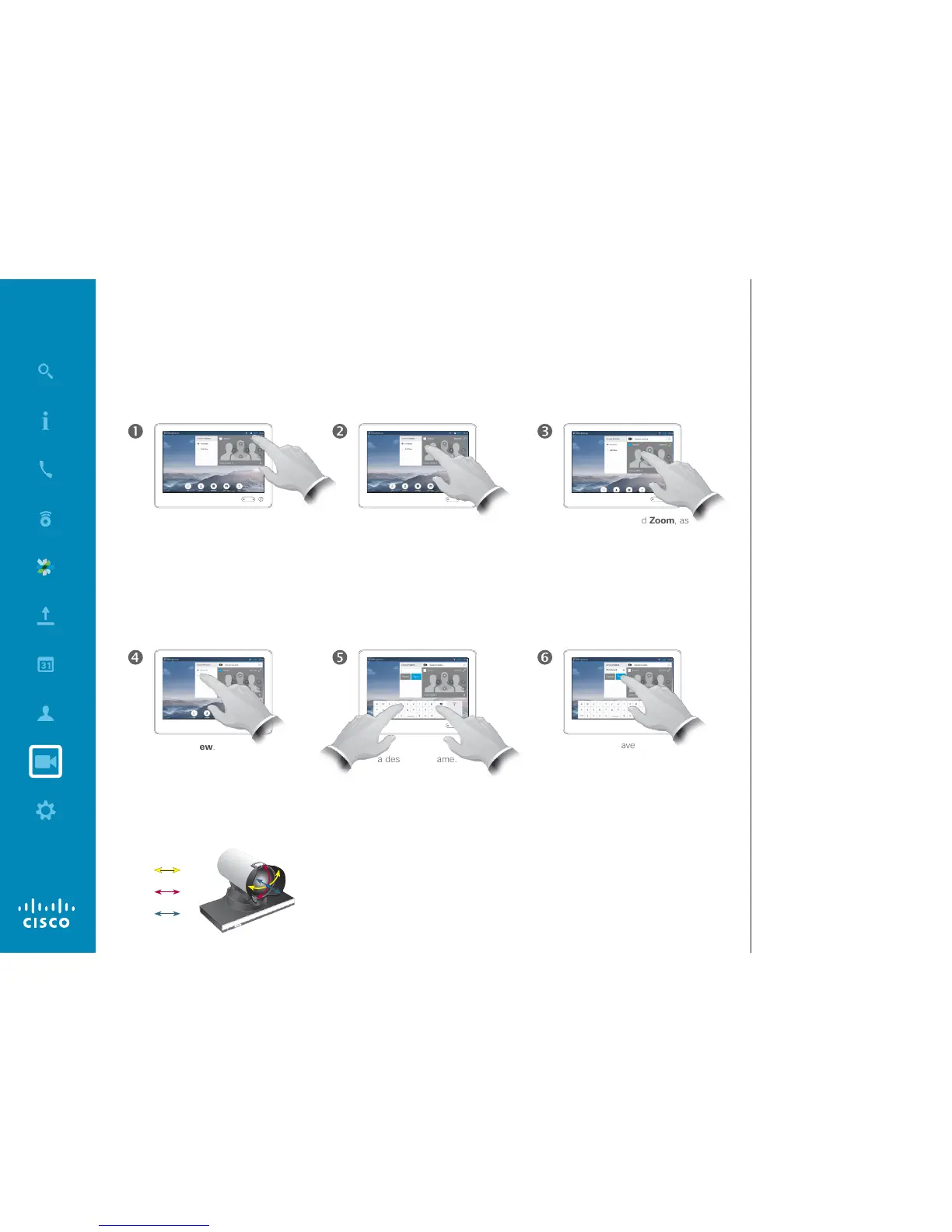

Add Camera Position Preset
Tap Camera to invoke the
camera adjustment menu.
Adjust Tilt, Pan and Zoom, as
required.
Tap Selfview to activate it.
Tap Add New.
Key in
a descriptive name.
Tap Save to leave
the menu putting
changes into eect,
or tap Cancel to
leave menu undoing
any changes.
About Camera Presets
Your video system lets you create
predened zoom and camera
pointing directions (also known as
pan and tilt). Use these to zoom into
the person speaking, if appropriate.
Do not forget to zoom out again
afterwards.
This means that if you want to create
one or more zoom-in presets you
should also create a zoom-out
(overview) preset to conveniently
switch back to overview mode.
Although you may control the far end
camera, i.e. the camera of any of the
other participants (given that those
cameras are remotely controllable),
you cannot dene nor make use of
their presets.
Camera
Pan
Tilt
Zoom
