Cisco Telepresence MX800 User Manual

7
D1534504 User Guide
Cisco TelePresence
Produced: November 2016 for CE 8.2
All contents © 2010–2016
Cisco Systems, Inc. All rights reserved.
Video systems located in meeting
rooms and quiet rooms and running
under CUCM (Cisco Unied
Communications Manager) may
allow you to log in to the video
system with your own personal
credentials.
CUCM will then route all incoming
calls destined for you to that specic
video system.

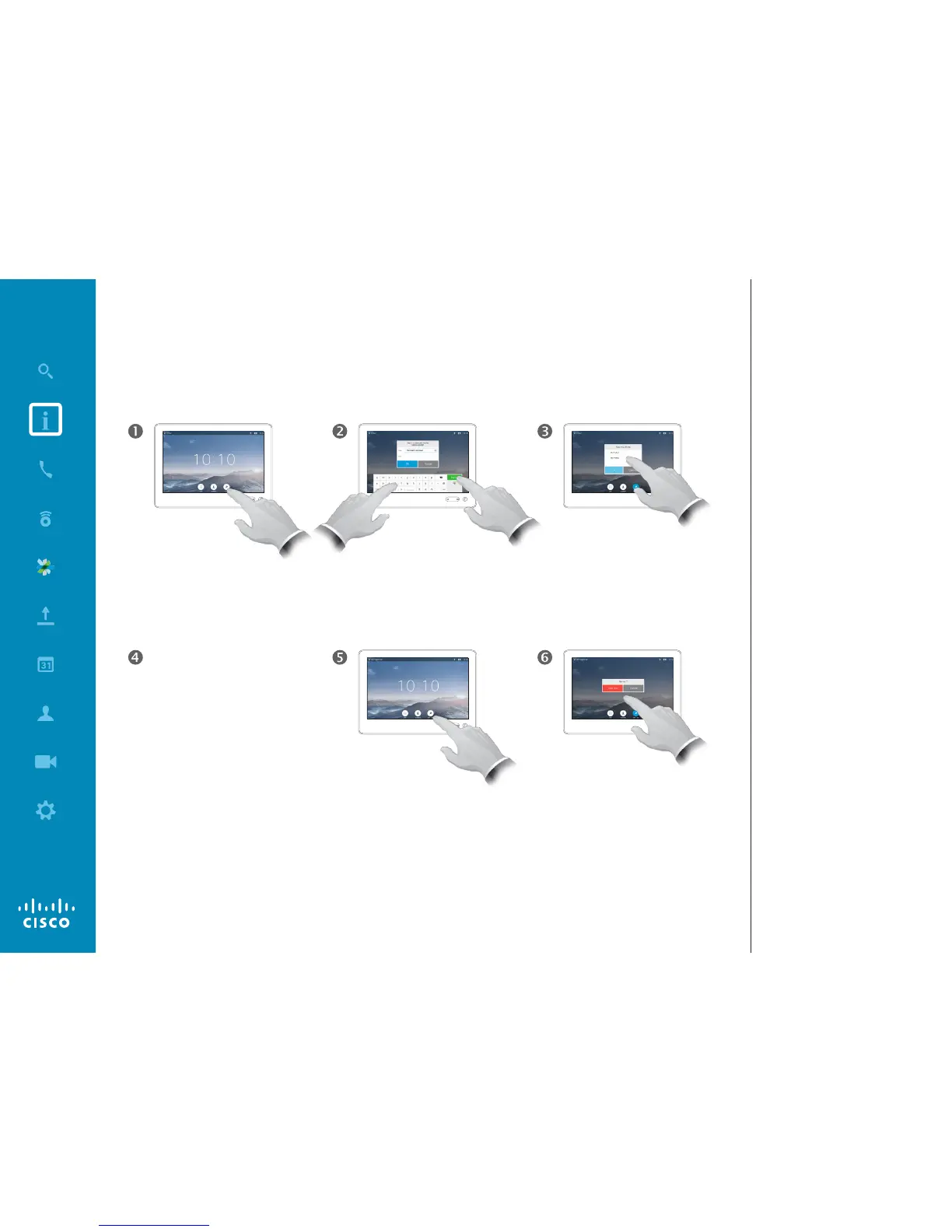

About Hot-desking
Log Onto a System with Your Own Credentials
Introduction to Video Conferencing
Type in your
credentials
and tap Sign In.
Tap Sign In.
Select your prole among
those you may choose
between.
The system will conrm a
successful sign-in. You will now
receive calls destined for you.
To sign out tap
Sign-out.
You will
be prompted
to conrm your
intentions.

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
