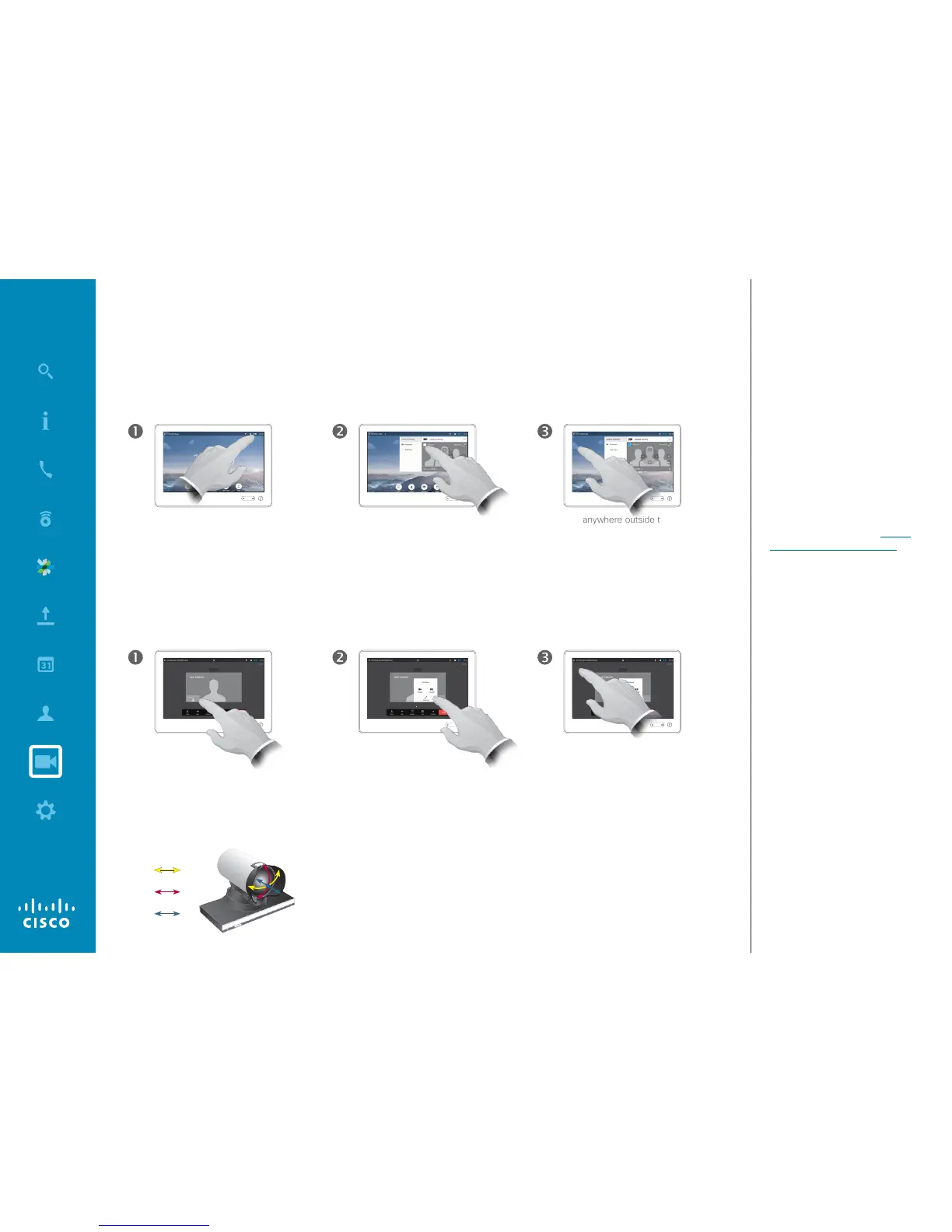

The Selfview shows what others see
from your video system. You will
normally use it to conrm that they
see what you want them to see.
The Selfview appears as a PiP
(Picture-in-Picture).
The position of Selfview PiP can be
changed if you wish—see “Move
the Selfview PiP” on page 60 for
details on this.
Camera
Manage Selfview
About Selfview
Tap Camera. Tap Selfview
to turn it on, if needed.
You may now resize the selfview
image (see the following
page for more), or control the
camera’s pan, tilt and zoom (see
the previous page for more).
Tap anywhere outside the
menu to exit.
Tap the
selfview
avatar.
In a call:
Outside a call:
You may now switch
the selfview o, maximize
or minimize it, or select
Camera to gain access to
the camera control (see the
previous page for more on
camera control).
Tap anywhere outside the
menu to exit.
Pan
Tilt
Zoom

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
