APPENDIX A
Technical Specifications
This appendix lists the technical specifications for the Cisco UCS X9508 server chassis and includes the
following sections:
• KVM Cable, on page 107
• Chassis Specifications, on page 108
• Environmental Specifications, on page 110
• Specifications for the Cisco UCS X9508 Chassis Power Supply Units, on page 111
• Supported AC Power Cords and Plugs, on page 111
KVM Cable
The KVM cable (UCSX-C-DEBUGCBL) provides a connection into a Cisco UCS compute node, providing
a DB-9 serial connector, a DB-15 connector, and a USB ports for a keyboard and mouse. With this cable you
can create a direct connection to the operating system and the BIOS running on a compute node.

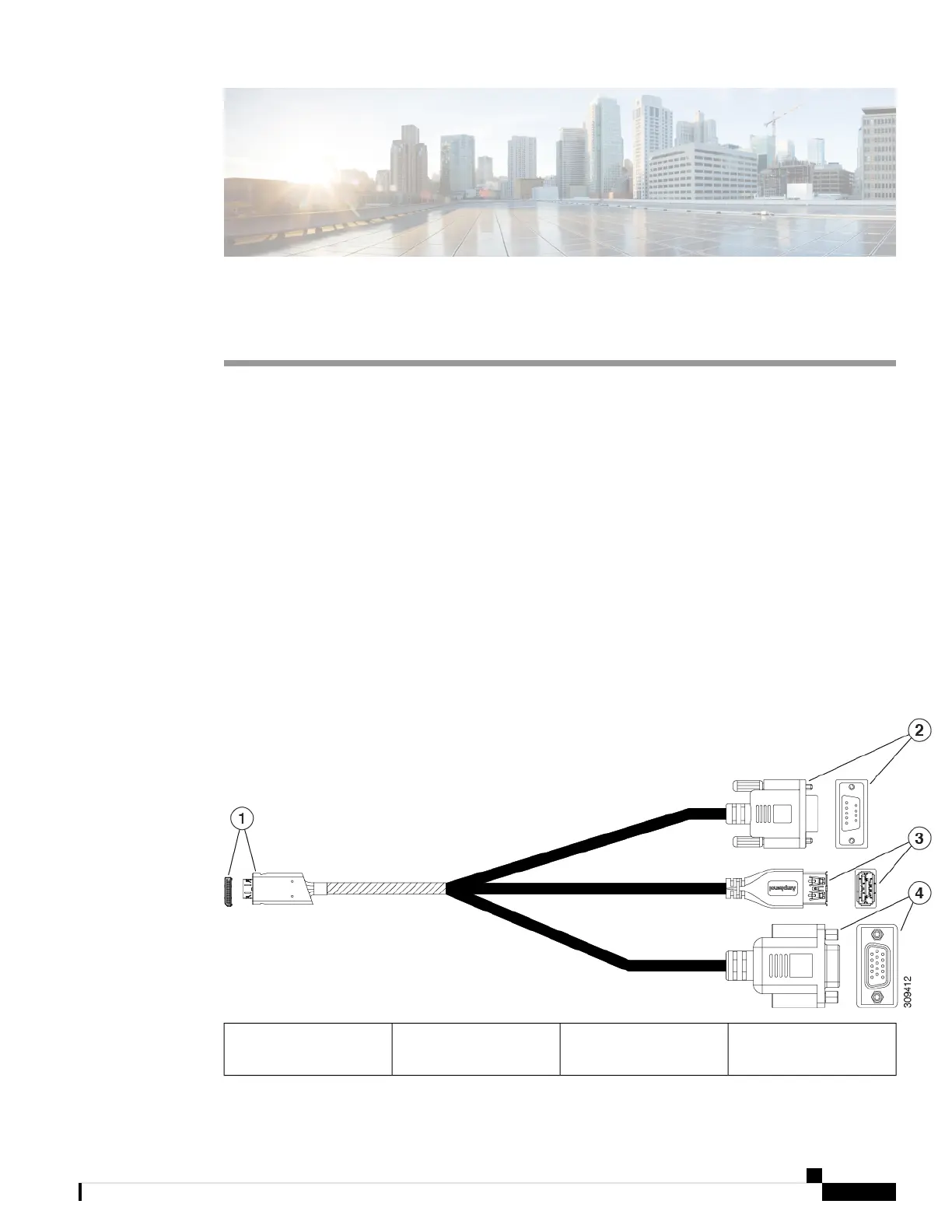

Figure 52: KVM Cable for Compute Nodes
DB-9 serial connector to
host Console port
2Oculink Connector to
compute node
1
