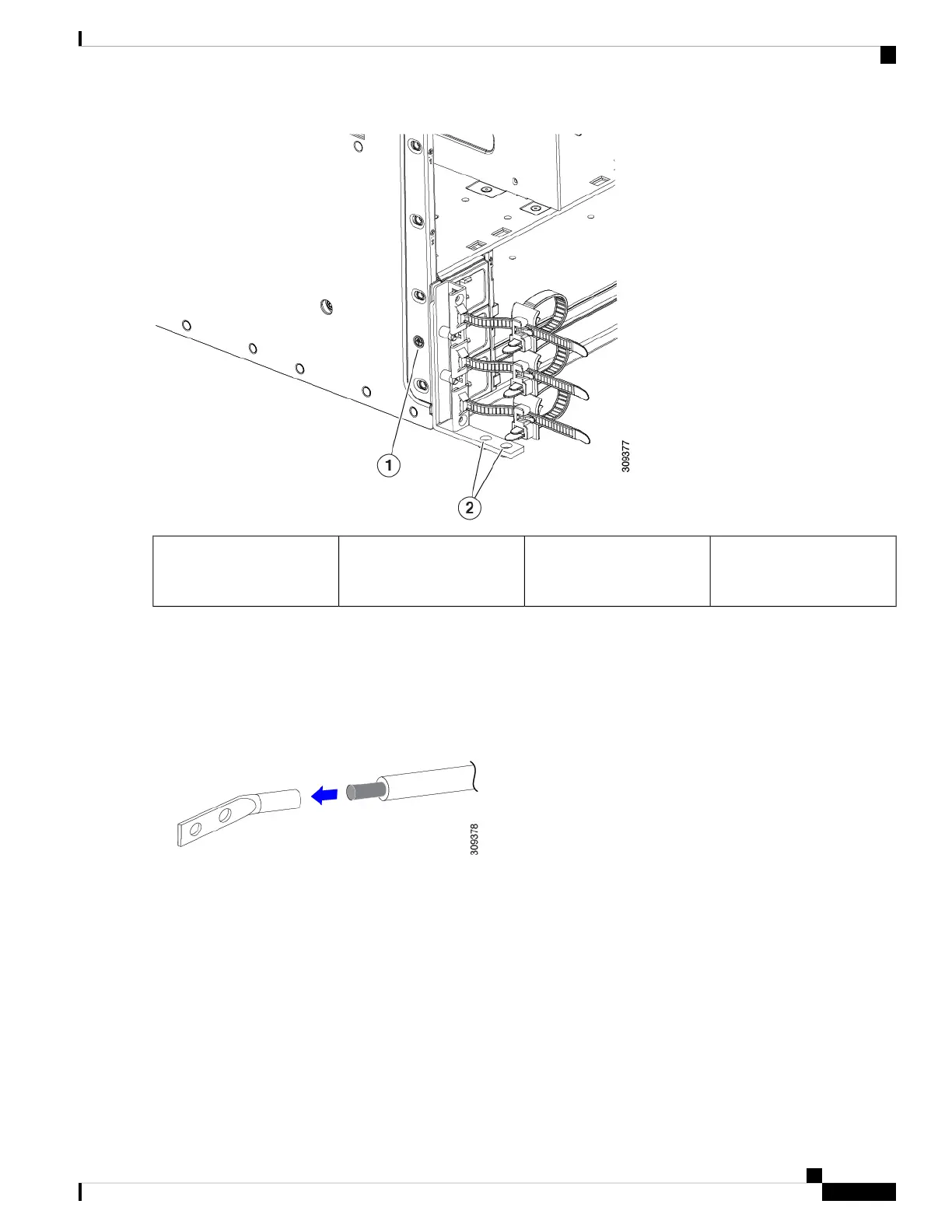

Ground Bracket, terminal
holes for attaching the
ground cable
2Earth Ground Symbol1
Step 2 Assemble the ground cable.
a) Use a wire-stripping tool to remove approximately 0.75 inches (19 mm) of the covering from the end of the grounding
cable.
b) Insert the stripped end of the grounding cable into the open end of the grounding lug.
We recommend 6-AWG wire for the U.S. installations. Make sure to use the proper grounding cable and grounding
wire as appropriate for your country or region.
c) Use a crimping tool to secure the grounding cable in the grounding lug.
d) Prepare the other end of the grounding cable and connect it to an appropriate ground point at the facility.
Step 3 Attach the grounding cable to the grounding bracket.
a) Position the ground lug on top of the grounding bracket.
b) Align the terminal holes in the ground lug with the terminal holes in the ground bracket.
c) Using a #2 Phillips screwdriver, insert and tighten two M5 x 10mm pan-head screws to secure the grounding cable
to the ground bracket.
Cisco UCS X9508 Server Chassis Installation Guide
49
Installation
Connecting Rear-Mount Earth Ground
