When connecting the chassis to facility power, make sure not to overload the capacity of a PDU or power
strip. For example, do not connect all PSUs to one PDU or power strip that is not capable of carrying the total
power draw of the chassis.
Caution
Use the following procedure to install the PSUs.
Step 1 Grasp the PSU with one hand.
Step 2 Use your other hand to support the PSU, and holding it level, orient it with the PSU bay.
The PSU is correctly oriented when the latch is facing you and parallel with the right side of the PSU bay.
Step 3 Holding the PSU level, slide it into the PSU bay.
When the PSU is almost all the way in, you will feel some resistance, which is normal. The resistance is the
connector at the rear of the PSU meeting the power socket inside the chassis.
The PSU will power on when you have successfully seated it in its socket.
Note

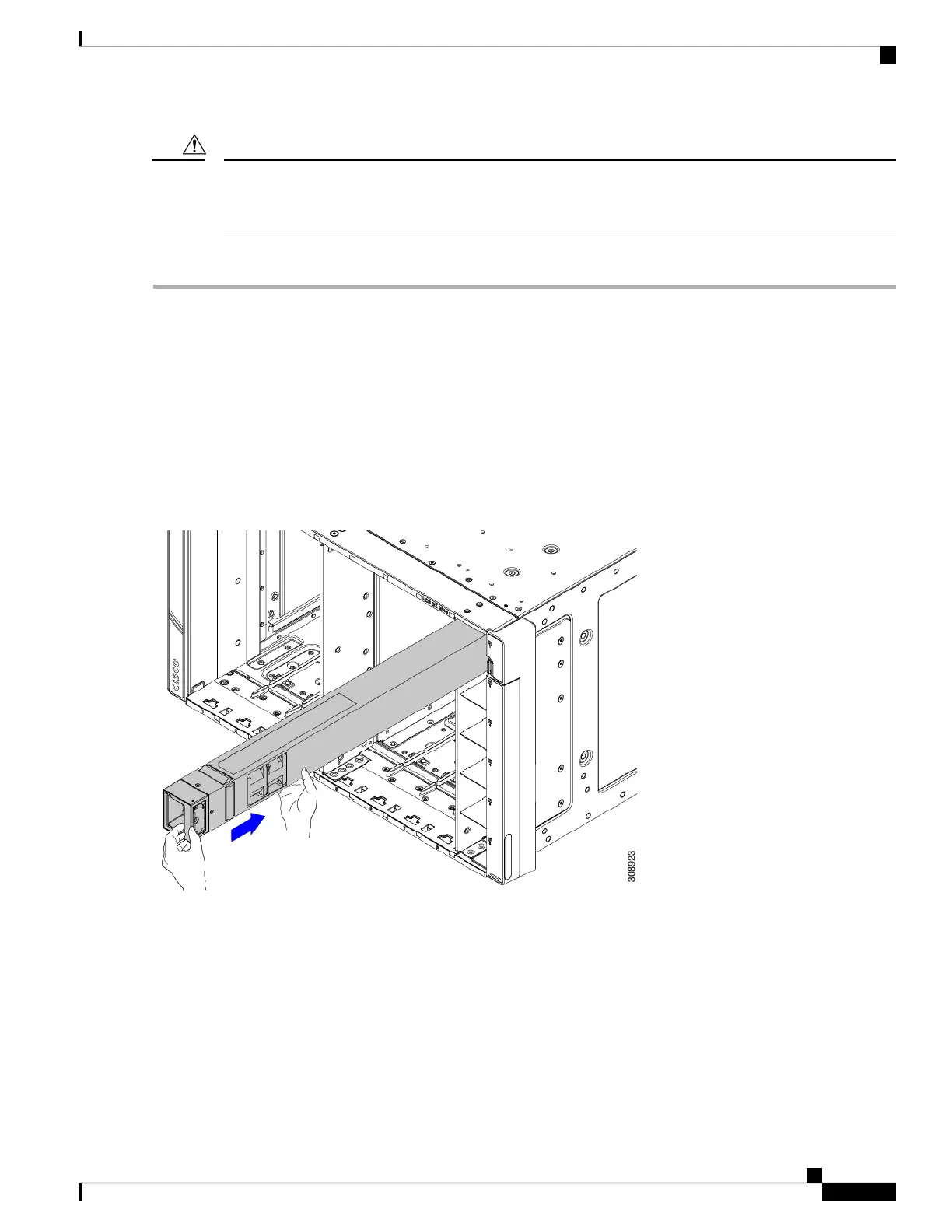

Figure 37: Installing a PSU
Step 4 For each PSU that must be installed, repeat these steps.
Step 5 Verify the power supplies are operating by checking the power supply LEDs. See LED Locations, on page 13 and
Interpreting LEDs, on page 14.
Cisco UCS X9508 Server Chassis Installation Guide
71
Installing and Removing Components
Installing a Power Supply
