Step 1 Place your thumb behind the vertical fingerhold on the right side of the blank's faceplate and allow your other fingers to
rest along the side of the chassis.
Step 2 Using your thumb, grasp the PSU blank by the vertical fingerhold and pull the PSU blank straight towards you.
The PSU should easily slide out of the chassis.

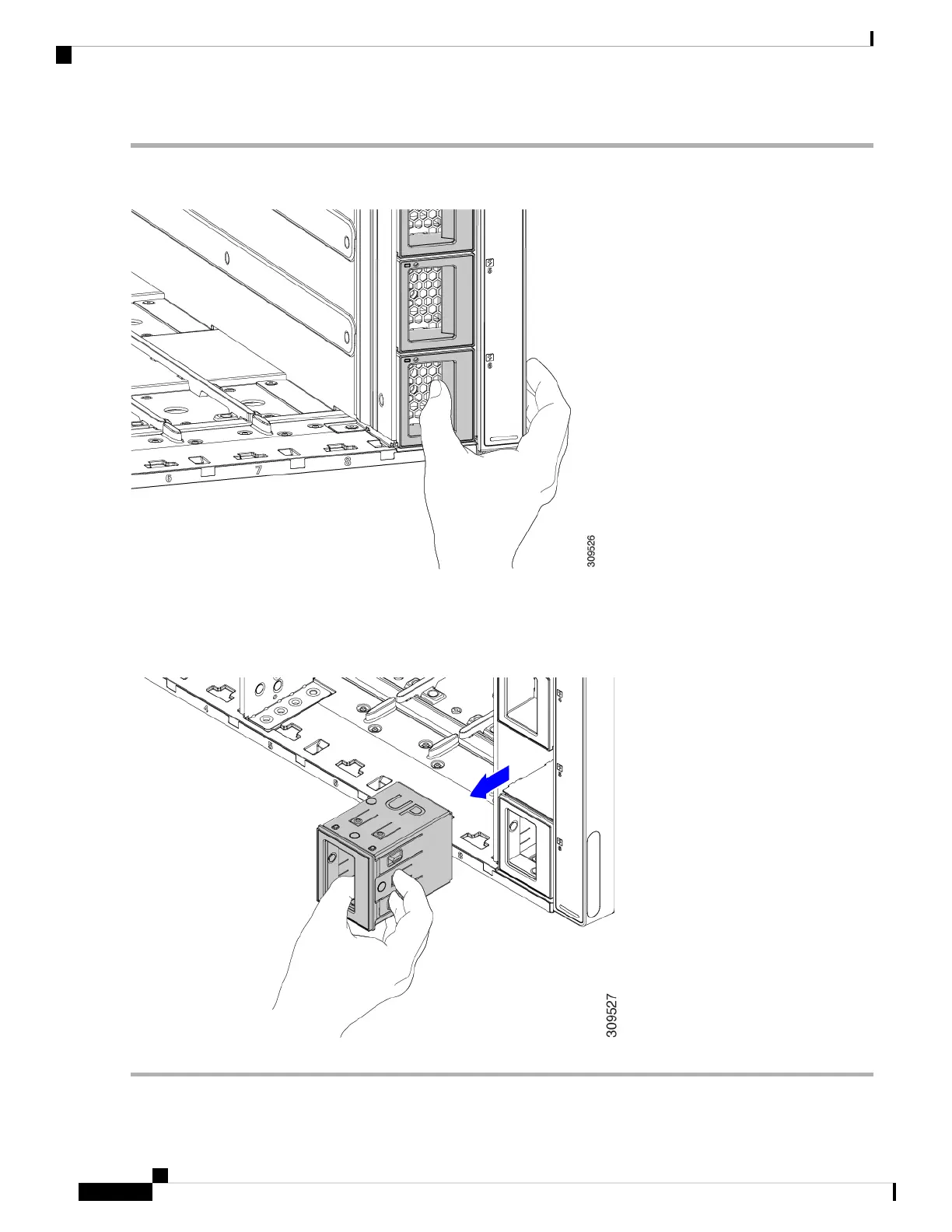

Figure 38: Removing a PSU Blank
Cisco UCS X9508 Server Chassis Installation Guide
74
Installing and Removing Components
Removing a PSU Blank
