Printouts generated when Unit Toggling is done
between Application Unit (Chw), Unit1 and
Unit2 and Reference Weight is changed
Printouts generated when Unit Toggling is done
between Application Unit (Chw), Unit1 and
Unit2 and Reference Weight is changed
When GLP ON When GLP OFF
-----------------------------------
28-Jul-10 03:19PM
Citizen
Model CX 220
Ser.no. 9223102
Ver.no. r0.1.5.3
ID 1234567
-----------------------------------
Target 150.0000 g
Hi 160.0000 g
Lo 140.0000 g
-------LL-------
+ 99.9979 g
+ 149.9979 g
-------HH-------
+ 200.0029 g
-----------------------------------
28-Jul-10 03:23PM
Name:
................
-----------------------------------
Target 150.0000 g
Hi 160.0000 g
Lo 140.0000 g
-------LL-------
+ 99.9979 g
+ 149.9979 g
-------HH-------
+ 200.0029 g
If the balance is connected eternally to PC or Printer through RS 232 C then, whenever user enter into the Target and Tolerance Setting Menu of
Check Weighing Menu & make changes in the setting, automatically printout is generated on the Peripheral attached.
In the printout, Target and Tolerance value are printed. After this user can Press Print Key to Print the reading on the display.
Also user can Toggle to other unit through Toggle key & Press Print Key to get the print out of those corresponding units.
Note : 1) User cannot enter into the external calibration or menu when GLP is ON
2) To print footer user will have to Press <CANCEL> key.
& footer has not been printed.
Load the weight on the pan and the balance will display the results according to the
preset values of target and tolerance.
E.g. If the values are as follows,
TARGET = 150.0000 gm
HI = 155.0000 gm
LOW = 145.0000 gm

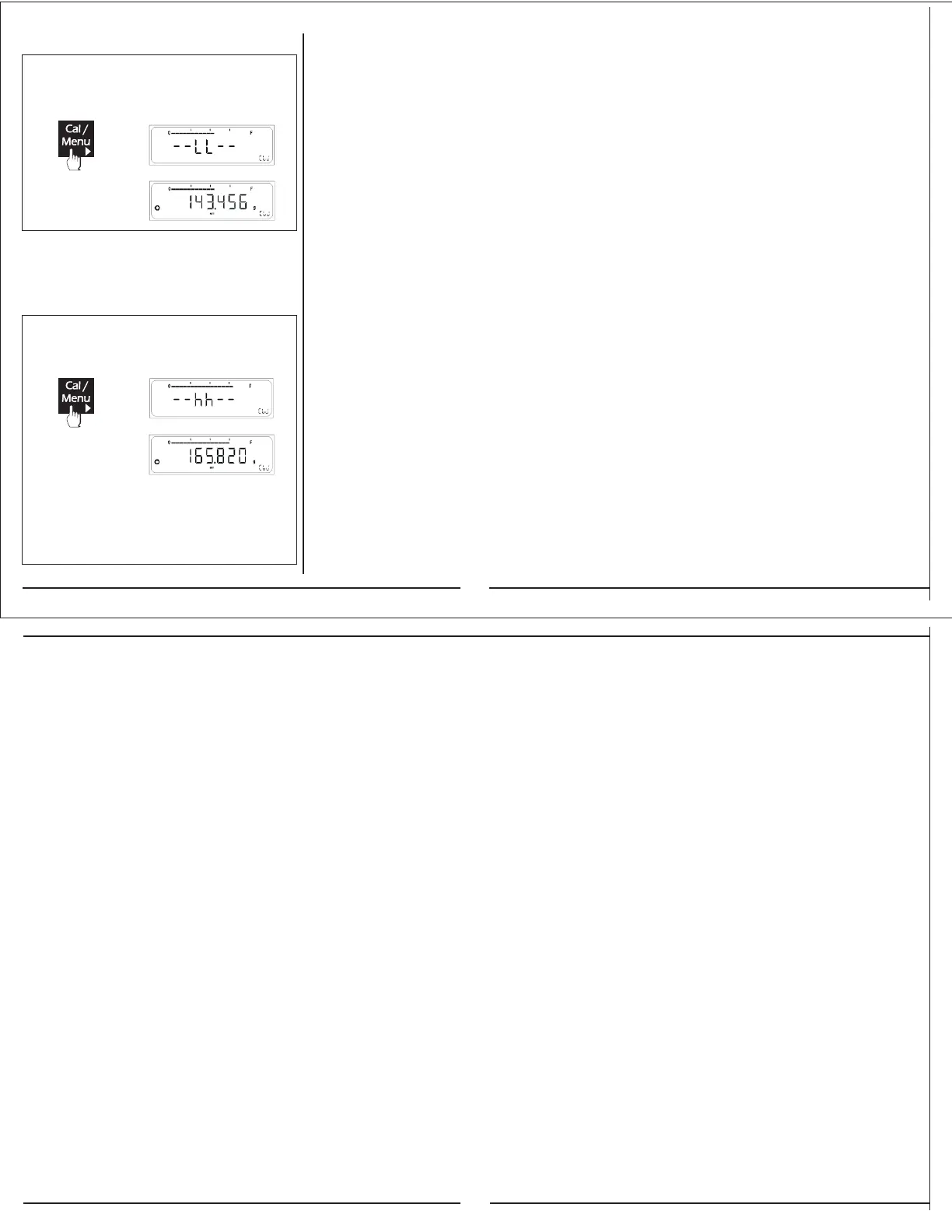

Now if 144.0000 gm is loaded on the pan the display shows LL indicating that the loaded
weight is less than the low value set.
If 156.0000 gm is loaded on the pan the display shows HH indicating that the loaded
weight is greater than the high value set.
While the balance displays LL or HH the buzzer will beep continuously to indicate that the
weight is out of the tolerance band and the corresponding lines on the external will be
enabled.
If the weight is in the tolerance range the balance will display the weight similar to simple
weighing.
You can use the <TOGGLE> key at any time to switch the display between check
weighing, weighing unit 1 and weighing unit 2.
User can go to Standby mode by pressing on/off key and go to Simple Weighing with unit
1 by CANCEL key and balance shows Current weights.
