2. Setting Up the balance
9

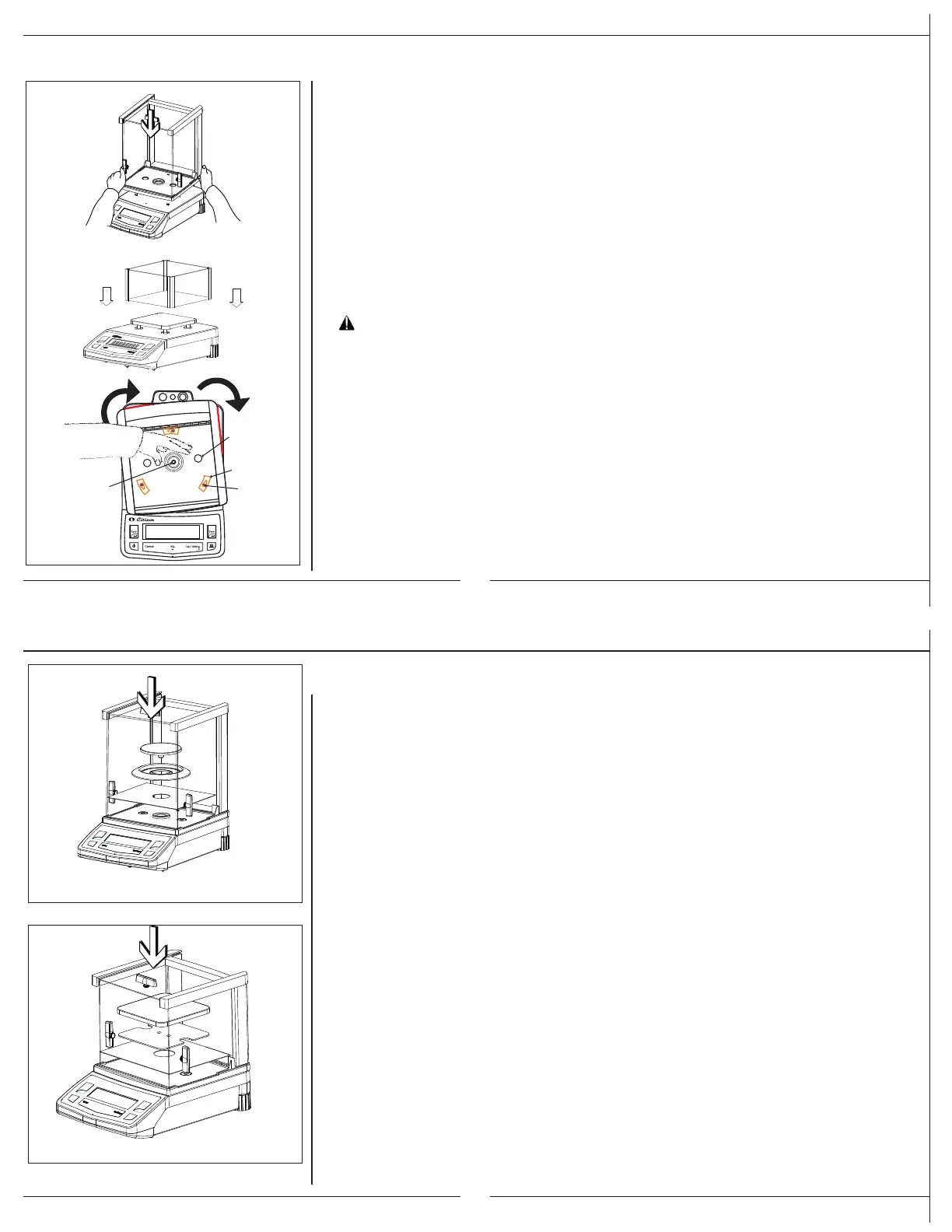

Balance with Analytical Draft-Shield (or Wind Shield) Chamber
• Position the Draft shield carefully on the balance.
Step 1: Open your New balance and draft shield you will see lock mounted on balance
body and lock plate mounted below draft shield .
Step 2: Put your draft shield in same place and direction guided through RED color lines
marked on this sticker, with gentle hand push & rotate draft shield clock wise as shown
in figure.
: While keeping draft shield on balance ensure you do not damage weight loading
point.
Note : Ensure there must not be any gap between balance and draft shield, if incase
there is gap repeat again above procedure.
Step 3: Push fix both corner hole cover on bottom body of draft shield as shown in figure.
• The Procedure for setting up the balance with wind shield is same as that of one with
draft shield
• Place the components listed below inside the chamber in the order given:
(For CX / CY (0.1mg) / CT Series Balances)
– Corner Cover
– Base plate
– Pan Cover
– Weighing pan
• Place the components listed below inside the chamber in the order given:
(For CY (1mg) Series Balances)
– Corner Cover
– Base plate
– Pan Support
– Weighing pan
10
Weight
Loading
Point
Corner
Hole Cover
Lock Plate
Lock
Draft shield
Wind shield
To Next Page
