Setting Up the Model 2010 Appliance
May 16, 2011
The following procedures describe how to set up the Access Gateway Model 2010 appliance for the first time.
To physically connect the Access Gateway appliance
1. Install Access Gateway in a rack if it is rack-mounted.
2. Connect the power cord to the AC power receptacle.
3. Connect either the serial cable to a Windows-based computer, a cross-over cable to a Windows-based computer, or an
RJ-45 network cable to a network switch and Access Gateway.
4. Configure the TCP/IP settings by following the instructions in Configuring the Model 2010 Appliance.

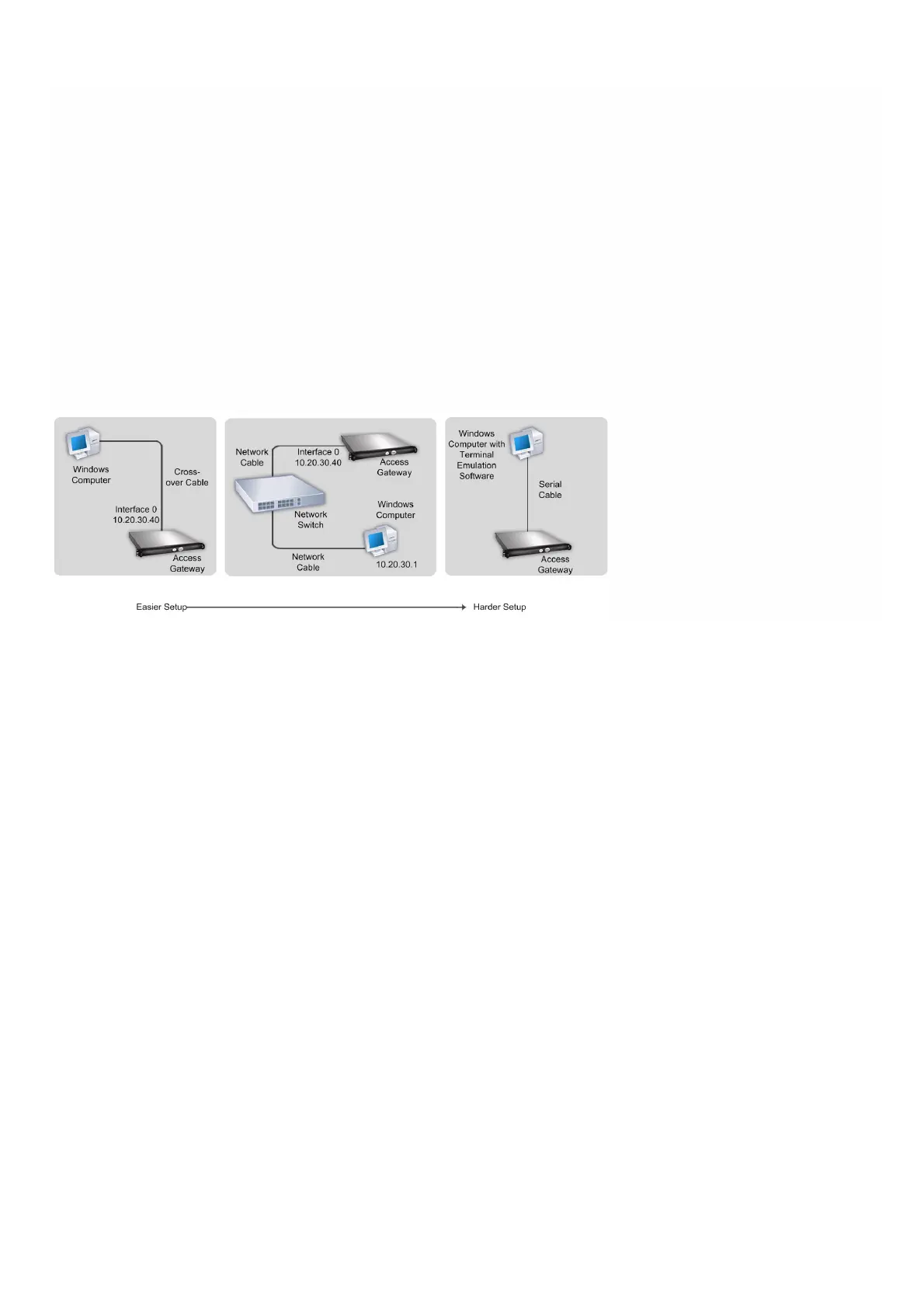

Figure 1. Access Gateway connection options using a cross-over cable, a network switch, or terminal emulation

Citrix NetScaler MPX Specifications

General

Category	Gateway
Throughput	Varies by model
SSL Transactions per Second	Varies by model
Concurrent Users	Varies by model
SSL Throughput	Varies by model
Compression Throughput	Varies by model
Max SSL Transactions Per Second	Varies by model
Max Concurrent Connections	Varies by model
Redundancy	Yes (HA configurations available)
