Note: The illustrations in the following figures are only for reference and might not represent the actual NetScaler
appliance.
To inst all or remove a To inst all or remove a direct at t ach cabledirect at t ach cable
1. To install the DAC, slide it into the 10G port on the appliance, as shown in the following figure. You will hear a click when
the DAC properly fits into the port.

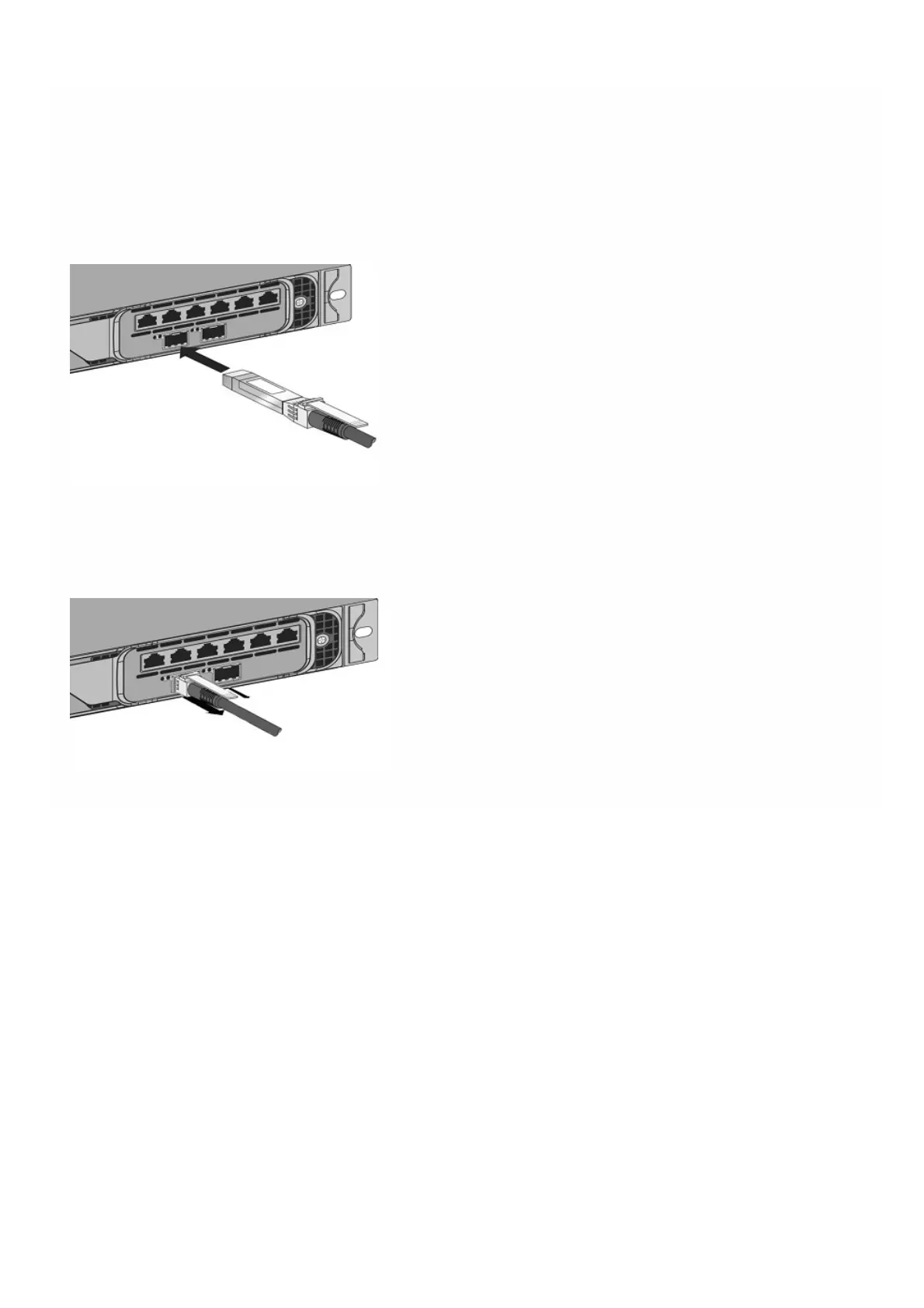

Figure 11. Inserting a DAC into the 10G port
2. To remove the DAC, pull the tab on the top of the DAC, and then pull the DAC out of the port, as shown in the
following figure.
Figure 12. Removing a DAC from the 10G port
