Citrix NetScaler SDX 8015, SDX 8400, and SDX 8600
Aug 01, 2017
The Citrix NetScaler models SDX 8015, SDX 8400, and SDX 8600 are 1U appliances. Each model has one quad-core
processor (8 cores with hyper-threading) and 32 gigabytes (GB) of memory. The SDX 8015/8400/8600 appliances are
available in two port configurations:
Six 10/100/1000Base-T copper Ethernet ports and six 1G SFP ports (6x10/100/1000Base-T copper Ethernet ports + 6x1G
SFP)
Six 10/100/1000Base-T copper Ethernet ports and two 10G SFP+ ports (6x10/100/1000Base-T copper Ethernet ports +
2x10G SFP+)

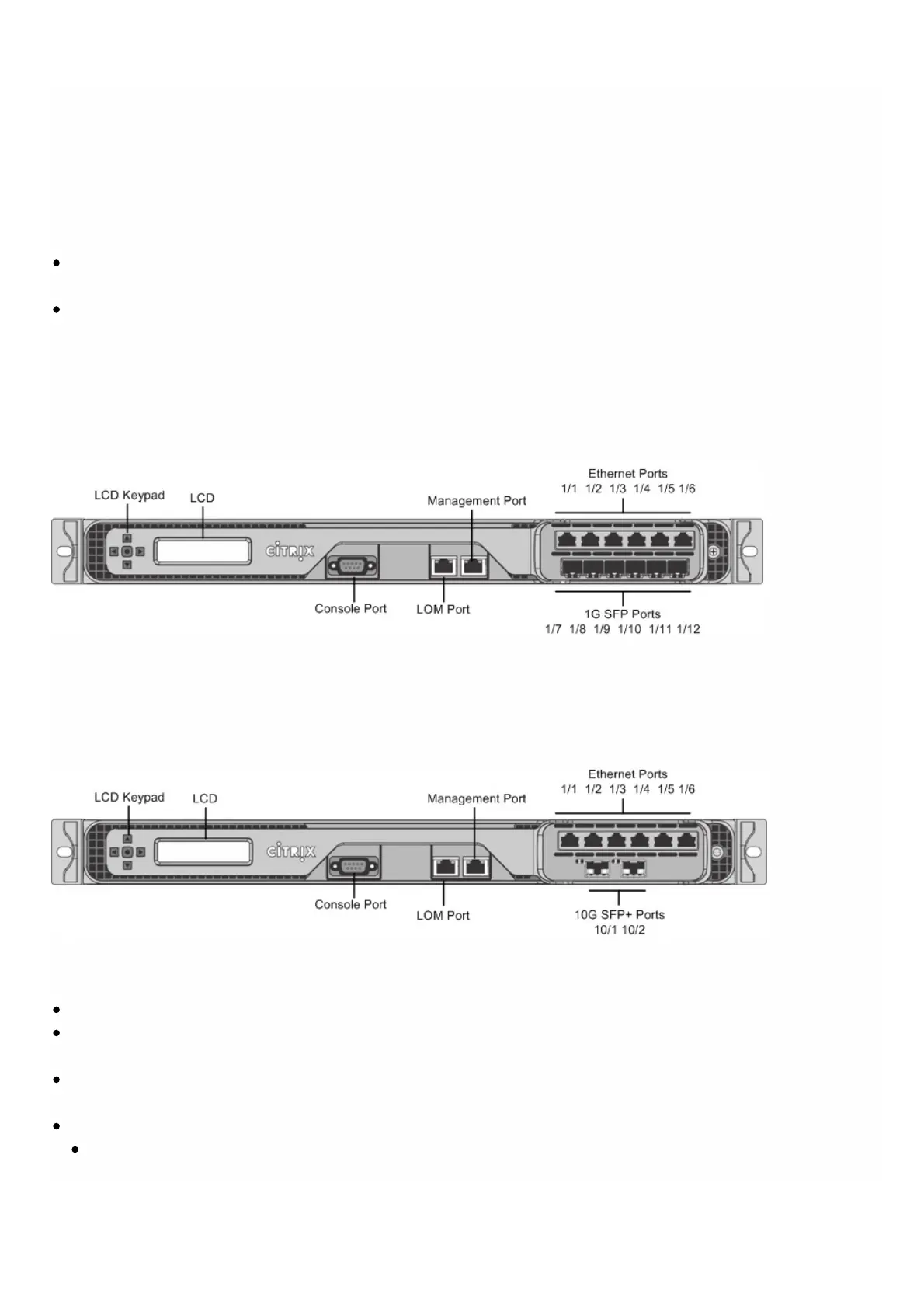

The following figure shows the front panel of the SDX 8015/8400/8600 (6x10/100/1000Base-T copper Ethernet ports +
6x1G SFP) appliance.
Figure 1. Citrix NetScaler SDX 8015/8400/8600 (6x10/100/1000Base-T copper Ethernet ports + 6x1G SFP), front panel
The following figure shows the front panel of the SDX 8015/8400/8600 (6x10/100/1000Base-T copper Ethernet ports +
2x10G SFP+) appliance.
Figure 2. Citrix NetScaler SDX 8015/8400/8600 (6x10/100/1000Base-T copper Ethernet ports + 2x10G SFP+), front panel
Depending on the model, the appliance has the following ports:
RS232 serial console port.
One 10/100Base-T copper Ethernet Port (RJ45), also called LOM port. You can use this port to remotely monitor and
manage the appliance independently of the NetScaler software.
One 10/100/1000Base-T copper Ethernet management port (RJ45), numbered 0/1. The management port is used to
connect directly to the appliance for system administration functions.
Network Ports
SDX 8015/8400/8600 (6x10/100/1000Base-T copper Ethernet ports + 6x1G SFP). Six 10/100/1000BASE-T copper
