Citrix NetScaler SDX 17500, SDX 19500, and SDX
21500
Oct 25, 2013
The Citrix NetScaler models SDX 17500/19500/21500 are 2U appliances. Each model has two 6-core processors and 48
gigabytes (GB) of memory.

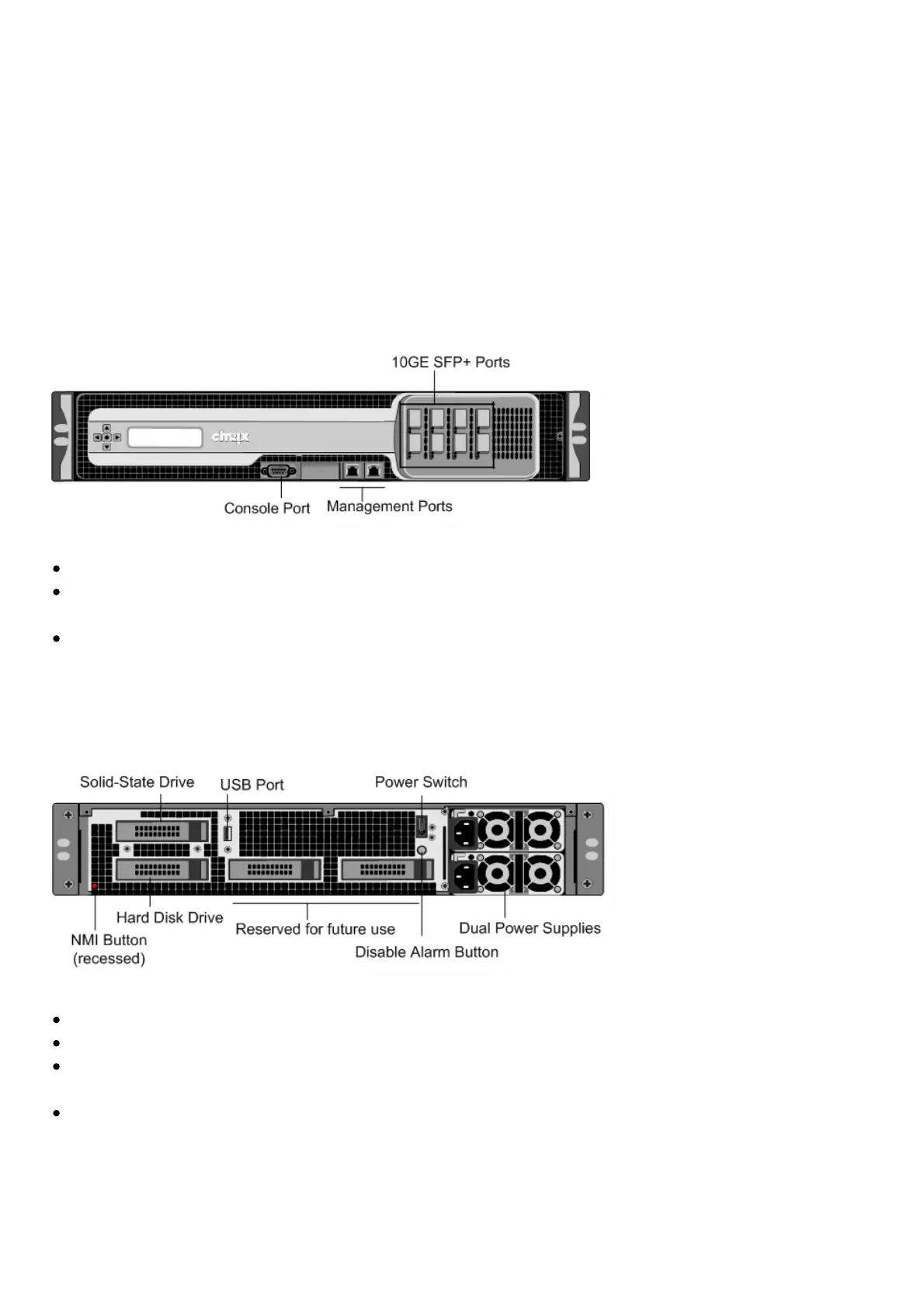

The following figure shows the front panel of the SDX 17500/19500/21500 appliance.
Figure 1. Citrix NetScaler SDX 17500/19500/21500 appliance, front panel
The SDX 17500/19500/21500 appliances have the following ports:
RS232 serial console port.
Two 10/100/1000Base-T copper Ethernet management ports (RJ45), numbered 0/1 and 0/2 from left to right. These
ports are used to connect directly to the appliance for system administration functions.
Eight 10GE SFP+ ports numbered 10/1, 10/2, 10/3, and 10/4 on the top row from left to right, and 10/5, 10/6, 10/7, and
10/8 on the bottom row from left to right.
The following figure shows the back panel of the SDX 17500/19500/21500 appliance.
Figure 2. Citrix NetScaler SDX 17500/19500/21500 appliance, back panel
The following components are visible on the back panel of the SDX 17500/19500/21500 appliance:
160 GB removable solid-state drive that is used to store the NetScaler software.
USB port (reserved for a future release).
Power switch, which turns off power to the appliance, just as if you were to unplug the power supply. Press the switch
for five seconds to turn off the power.
Non-maskable interrupt (NMI) button that is used at the request of Technical Support and produces a core dump on the
NetScaler. You must use a pen, pencil, or other pointed object to press this red button, which is recessed to prevent
unintentional activation.
