Citrix NetScaler SDX 22040, SDX 22060, SDX 22080,
SDX 22100, and SDX 22120
Oct 25, 2013
The Citrix NetScaler SDX 22040/22060/22080/22100/22120 are 2U appliances. Each model has two 8-core processors (32
cores with hyper-threading) and 256 gigabytes (GB) of memory. The SDX 22040/22060/22080/22100/22120 appliances are
available in two port configurations:
Twelve 1G SFP ports and twenty-four 10G SFP+ ports (12x1G SFP + 24x10G SFP+)
Twenty-four 10G SFP+ ports (24x10G SFP+)

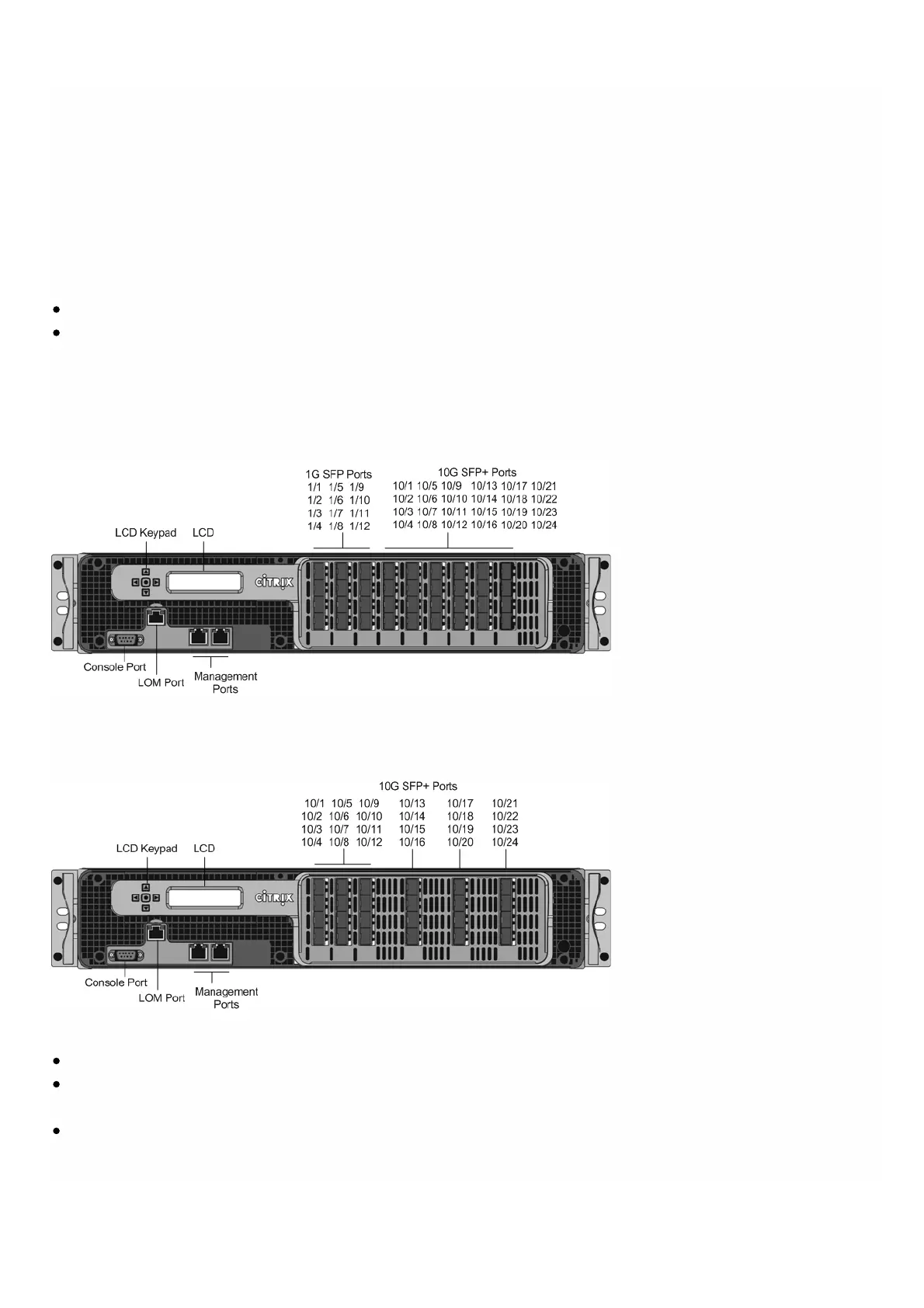

The following figure shows the front panel of the SDX 22040/22060/22080/22100/22120 (12x1G SFP + 24x10G SFP+)
appliance.
Figure 1. Citrix NetScaler SDX 22040/22060/22080/22100/22120 (12x1G SFP + 24x10G SFP+), front panel
The following figure shows the front panel of the SDX 22040/22060/22080/22100/22120 (24x10G SFP+) appliance.
Figure 2. Citrix NetScaler SDX 22040/22060/22080/22100/22120 (24x10G SFP+), front panel
Depending on the model, the appliance has the following ports:
RS232 serial Console Port.
10/100Base-T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to remotely monitor and
manage the appliance independently of the NetScaler software.
Two 10/100/1000Base-T copper Ethernet Management Ports (RJ45), numbered 0/1 and 0/2 from left to right. These
ports are used to connect directly to the appliance for system administration functions.
