ENGINE
AUXILIARY EQUIPMENT DRIVE BELT
XSARA
TOOLS

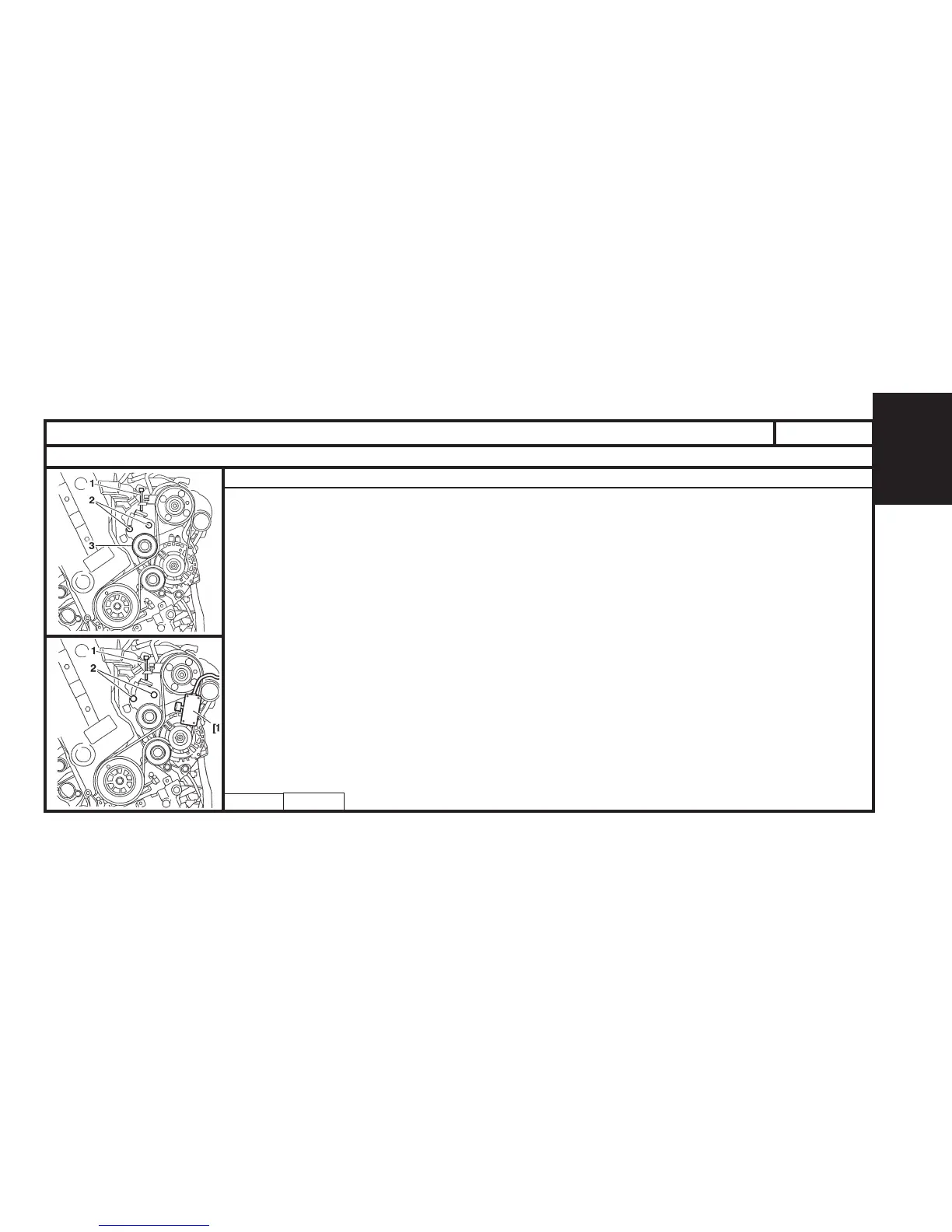

[1] Belt tension measuring instrument 4122-T
- (1) Tensioning screw.
- (2) Roller support fixing screw (3).
- Lightly tighten the screws (2).
- Place the tool [1] on the belt.
- Tension the belt using the screw (1).
• Reused belt 90 SEEM units.
• New belt 120 SEEM units.
- Tighten the screws (2) to 2 m.daN.
- Remove the tool [1].
- Rotate the crankshaft by 3 turns (direction of rotation).
- Check the belt tension using the tool [1], and adjust (if necessary).
Without air conditioning
B1EP12YC
B1EP12XC
Engine : RFS
