Suspension – Front anti-roll bar
FRONT AXLE

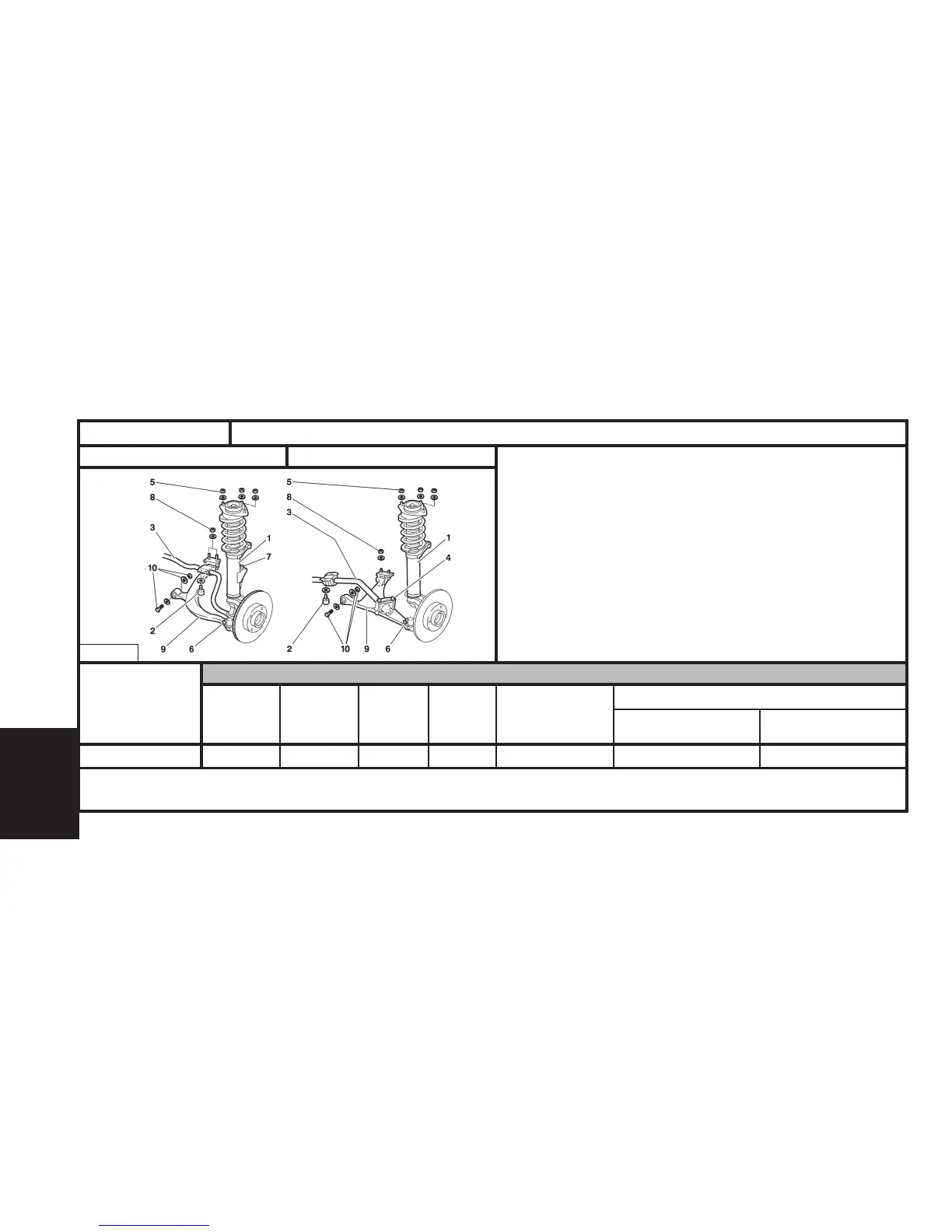

Anti-roll bar Ø 18 and 22 mm Anti-roll bar Ø 19 and 21 mm
(1) Suspension leg.
(3) Front anti-roll bar.
(9) Lower arm.
Tightening torques m.daN
(2) Anti-roll bar bearing fixing on the bodyshell 5.5 ± 0.2
(4) Anti-roll bar bearing fixing on the lower arm 2.2 ± 0.2
(5) Suspension leg upper fixing 2.1 ± 0.2
(6) Lower ball-joint fixing screw 3.8 ± 0.4
(7) Anti-roll bar link rod fixing 7 ± 0.6
(8) Suspension arm rear fixing nut 4.2 ± 0.4
(9) Suspension arm front fixing 8.5 ± 0.8
Ø Anti-roll bar None 21 19 18 22 21 19
HFX (1)
KFW VJX
NFT
Raised suspension
HFX
HFX (3)
KFW (3)
NFX (3)
France
Administration
Export
HFX (2)
(1) = With airbag. (2) = Without option. (3) = VTS level.
B3CP02SD
SAXO - All Types
