CITROEN C3 2003 - Suspension C3

331
AXLES
SUSPENSION
STEERING
SUSPENSION

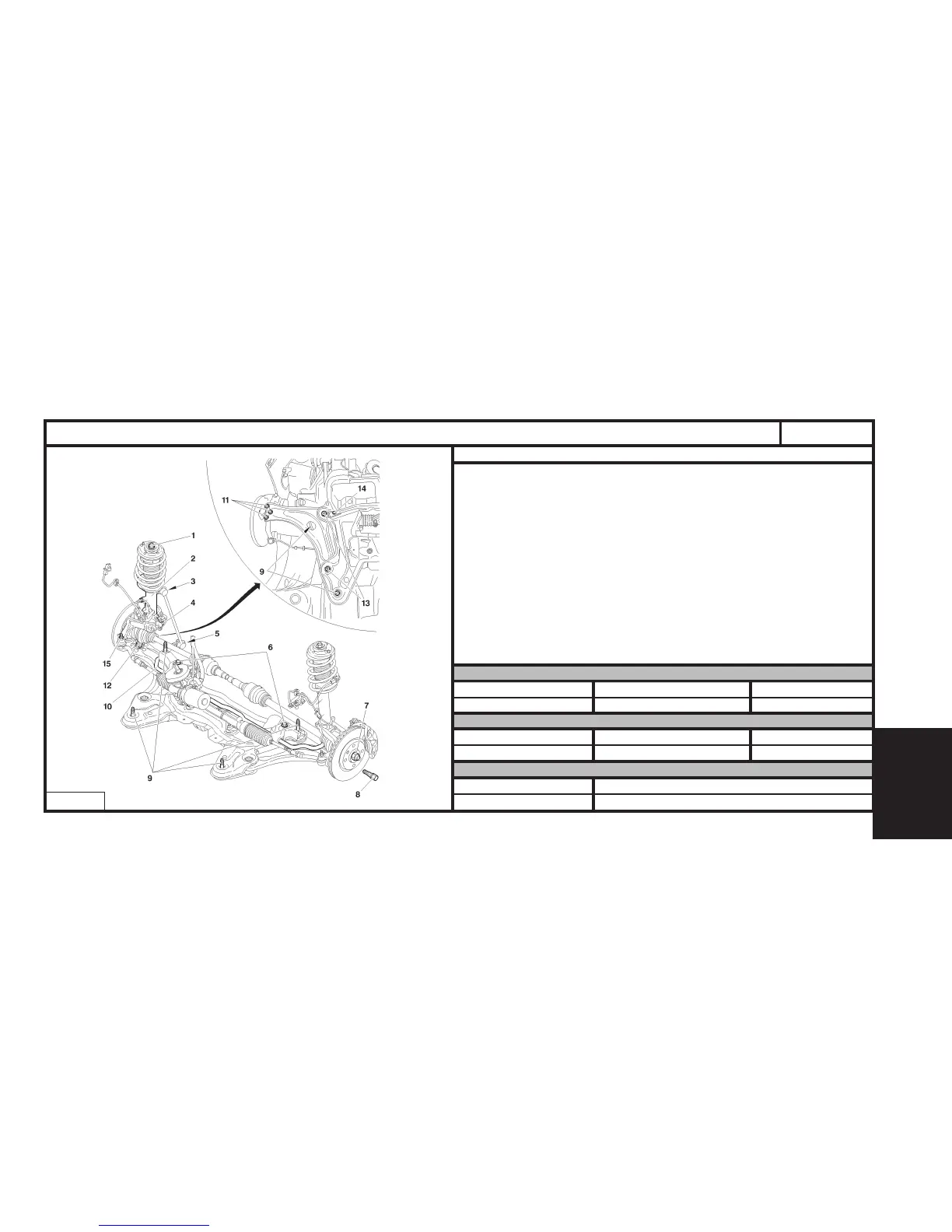

Front axle
(1) Nut fixing suspension leg on body : 6,5 ± 0,6
(2) Damper :
(3) Anti-roll bar link rod upper ball-joint : 3,2 ± 0,3
(4) Suspension leg pivot : 5,4 ± 0,5
(5) Anti-roll bar link rod lower ball-joint : 3,2 ± 0,3
(6) Anti-roll bar bearing fixing on subframe : 8 ± 0,8
(7) Hub nut : 24,5 ± 0,5
(8) Wheel bolt : 9 ± 1
(9) Subframe to bodyshell fixing screw : 10 ± 1
(10) Anti-roll bar :
(11) Pivot lower ball-joint fixing on lower arm : 5,5 ± 0,5
(12) Pivot lower ball-joint fixing : 4 ± 0,4
(13) Lower arm front and rear mounting fixing : 14 ± 0,4
(14) Stabiliser bar screw : 6,6 ± 0,7
(15) Steering ball-joint fixing : 3,5 ± 0,3
Anti-roll bar
Engines Diameter (mm) Colour
All Types 19 Bue
Pivot
Engines Diameter of bearing Type
All Types 72 U (Cast-iron)
Damper
Engines Damping law
All Types R 59 M
B3CP07RP
C3
