CITROEN C3 2003 - Rear Axle XSARA PICASSO - All Types

363
AXLES
SUSPENSION
STEERING
REAR AXLE

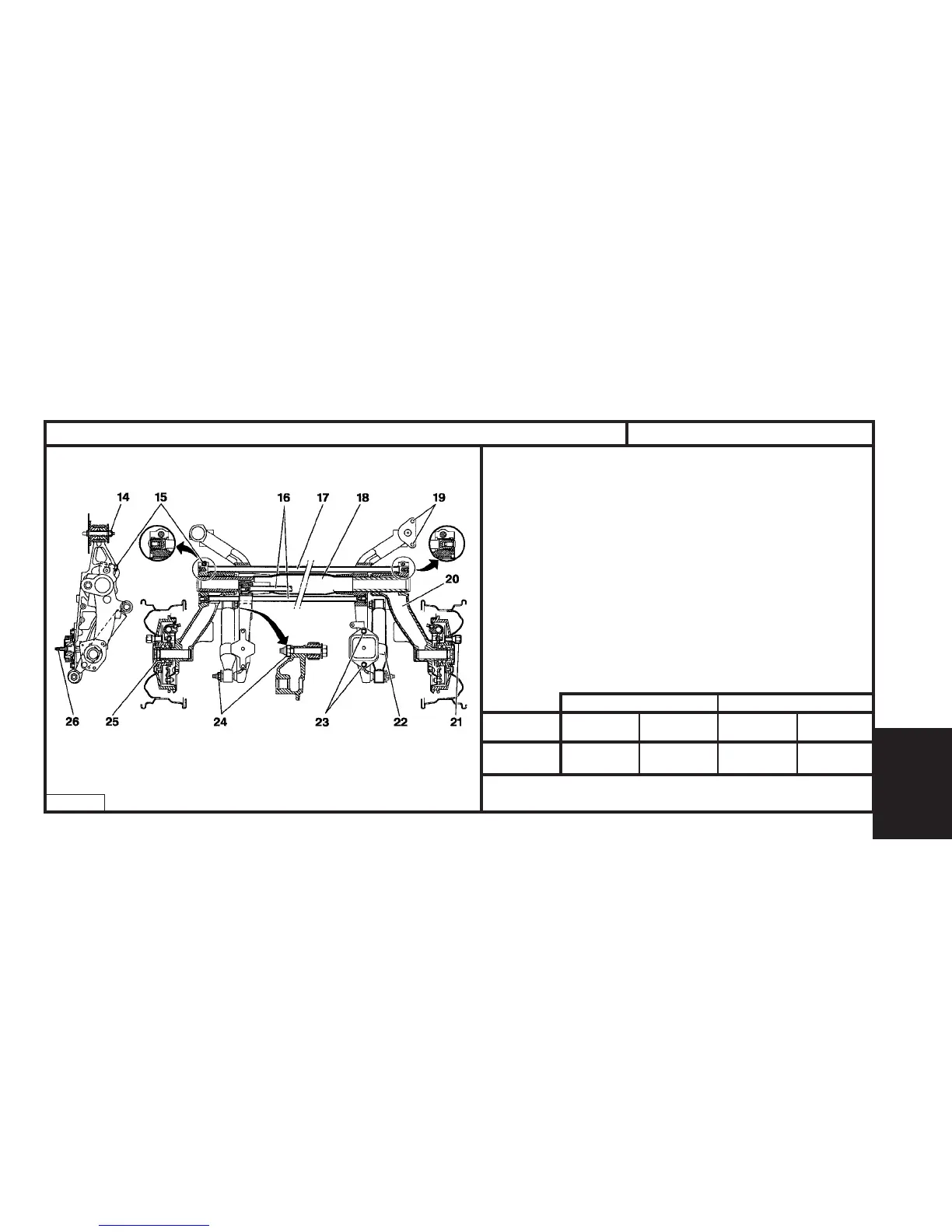

Tightening torques m.daN.
(14) Front silentblock on subframe : 9.5 ± 0.9.
(15) Anti-roll bar bolt : 5.5 ± 0.5.
(16) Rear torsion bar
(17) Anti-roll bar
(18) Tubular axle
(19) Front silentblock on bodyshell : 4 ± 0.4.
(20) Rear upper arm.
(21) Wheel bolt : 9 ± 1.
(Face and threads not lubricated)
(22) Damper
(23) Rear silentblock on subframe : 5.5 ± 0.5.
(24) Damper pin nut : 11 ± 1.
(25) Stub axle nuts (lubricated) : 25 ± 2.
(26) Rear silentblock on bodyshell : 5.5 ± 0.5.
Anti-roll bar
Torsion bar
Engine
NFV-6FZ
RFN-RHY
19.6 PINK
Ø (mm)
Colour
mark
Ø (mm)
21
Colour
mark
ORANGE
B3DP078D
NOTE : - The RH torsion bar can be identified by 1 paint line.
- The LH torsion bar can be identified by 2 paint lines.
XSARA PICASSO - All Types
