BE4/5 GEARBOX - CHECKS AND ADJUSTMENTS
Engines : NFV - 6FZ - RFN - RFS - WJY - 8HZ – RHY - RHZ
Principles of adjusting the gear controls.
WARNING : Cables should be adjusted each time the gearbox,
gear controls or power unit are removed.
Principles.
Lock the gear lever in neutral position,
using tool: 9607-T.
Place the gearbox in neutral.
Couple the cables on the lever.
Fit the ball-joints on the gearbox lever.
Lock the cable lengths with the ball-joint locking
keys.
WARNING : Do not use any tool to unclip the
ball-joints.

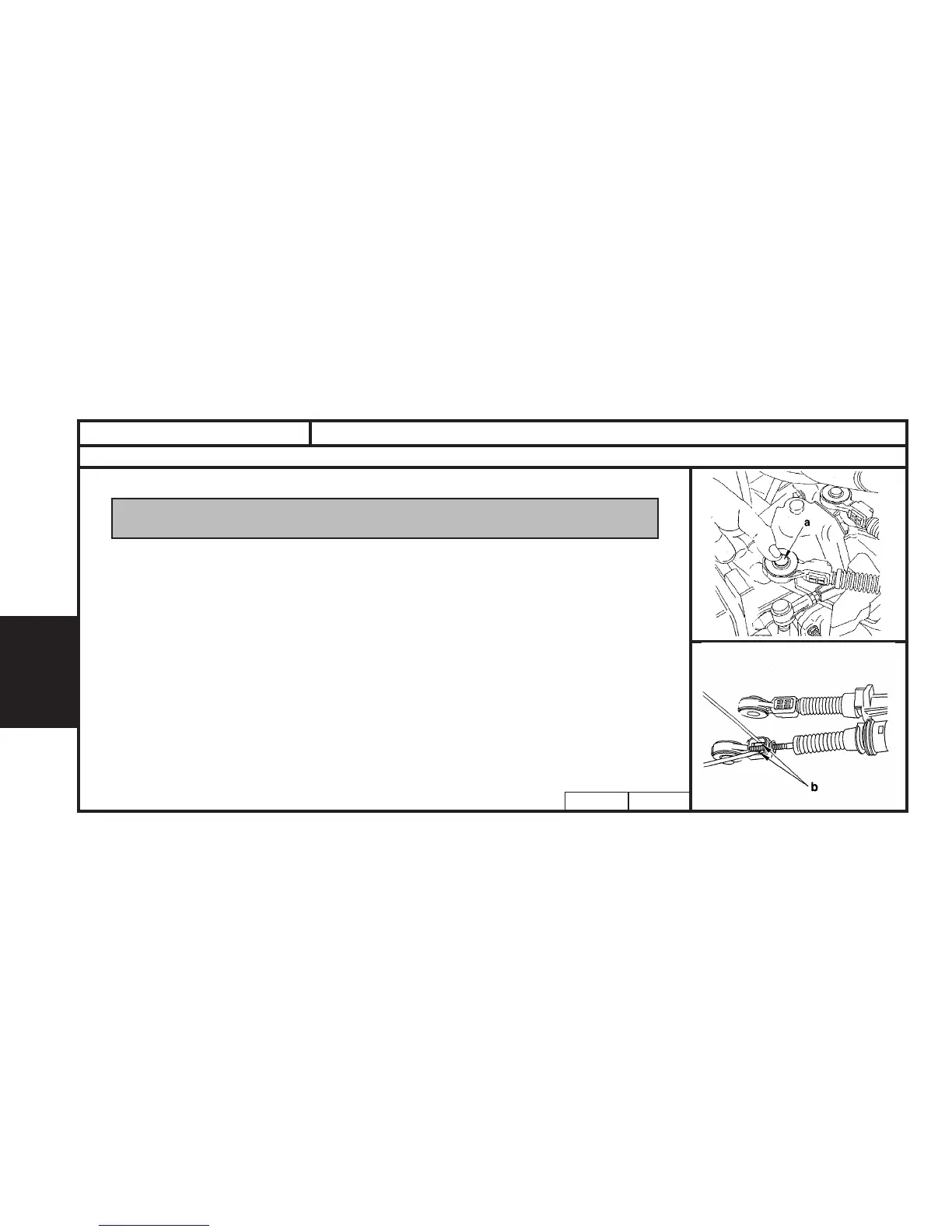

To unlock the ball-joint, press at the centre «a»,
then pull the ball-joint upwards.
NOTE : Changing an individual ball-joint is possible
as long as the locking key is removed.
Unclip at «b», using two small screwdrivers.
