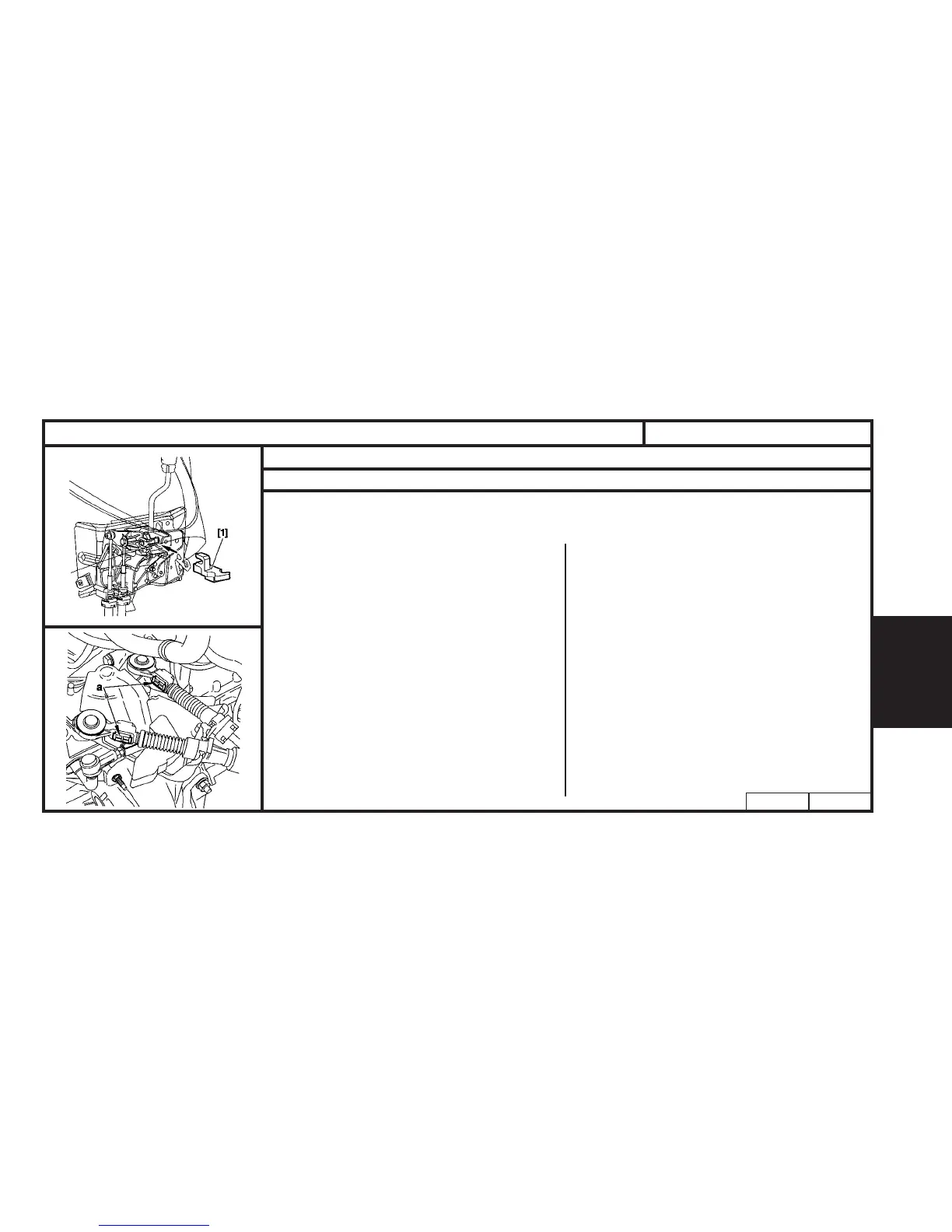

BE4/5 GEARBOX - CHECKS AND ADJUSTMENTS
TOOLS.
[1] Tool for positioning the gear lever : 9607-T.
ADJUSTMENTS.
WARNING : Cables should be adjusted each time
the gearbox, gear controls or power unit are
removed.
Inside the vehicle.
- Remove the trim under the gear lever.
- Lock the gear lever in neutral position, using tool [1].
Under the bonnet.
- Remove the air filter assembly.
- Unlock the ball-joint keys at «a».
- Place the gear selection and control levers neutral.
Lock the cable lengths with the ball-joint locking keys.
CHECKS.
- Remove the tool [1].
- Check that all the gears engage without « tightness ».
- Check that the gear lever moves identically
forwards and backwards and to right and left. If it
does not, repeat the adjustment.
- Refit the trim under the gear lever.
- Refit the air filter assembly.
Adjusting the gear controls.
Engines : NFV - 6FZ - RFN - RFS - WJY - 8HZ – RHY - RHZ
XSARA - XSARA PICASSO
B2CP3C6C
B2CP3C0C
