CITROEN C3 2003 - Front Axle XSARA PICASSO - All Types

362
AXLES
SUSPENSION
STEERING

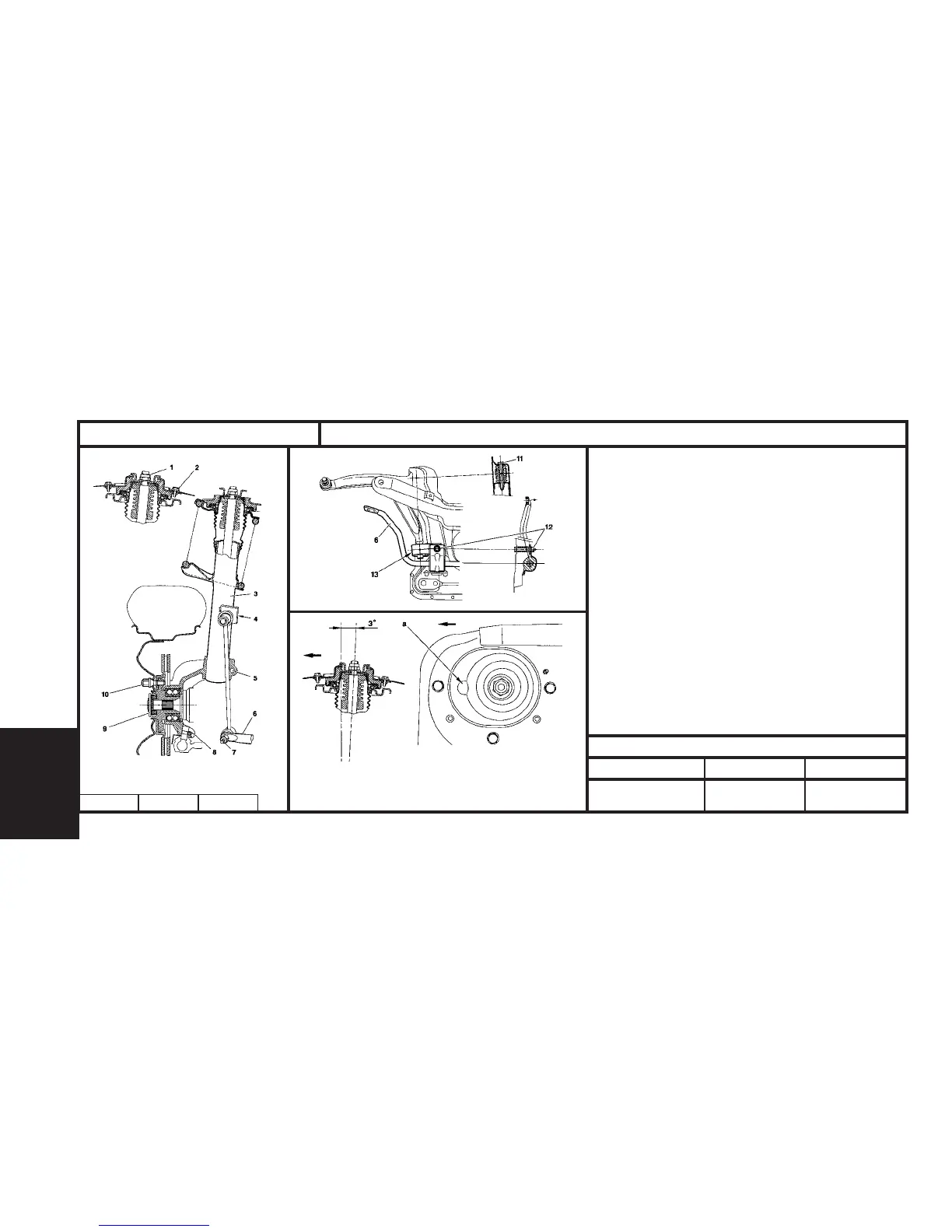

FRONT AXLE
Tightening torques m.daN.
(1) Damper nut : 4.5 ± 0.4.
(2) Cup screw : 2.5 ± 0.2.
(3) Suspension arm.
(4) Anti-roll bar link rod ball-joint : 4 ± 0.4.
(5) Suspension arm swivel : 4.5 ± 0.4.
(6) Anti-roll bar.
(7) Anti-roll bar link rod ball-joint : 4 ± 0.4.
(8) Lower swivel ball-joint : 4 ± 0.4.
(9) Hub nut : 32.5 ± 2 (greased).
(10) Wheel bolts : 9 ± 1
(Face and threads not greased).
(11) Lower arm front pivot : 8 ± 0.8.
(12) Lower arm rear pivot and
anti-roll bar bearing : 6.5 ± 0.6.
(13) Screw under rear pivot : 3.5 ± 0.3.
Fixing bolt : subframe on bodyshell: 8.5 ± 0.8.
Anti-roll bar
Engine
NFV-6FZ
RFN-RHY
Diameter
21
Colour ref.
WHITE
Damper upper bracket :
Lug «a» to the front.
B3CP056P B3CP057D B3CP043D
XSARA PICASSO - All Types
