CITROEN C3 2003 - Valve Clearance Settings

ENGINE
207
ALL TYPES

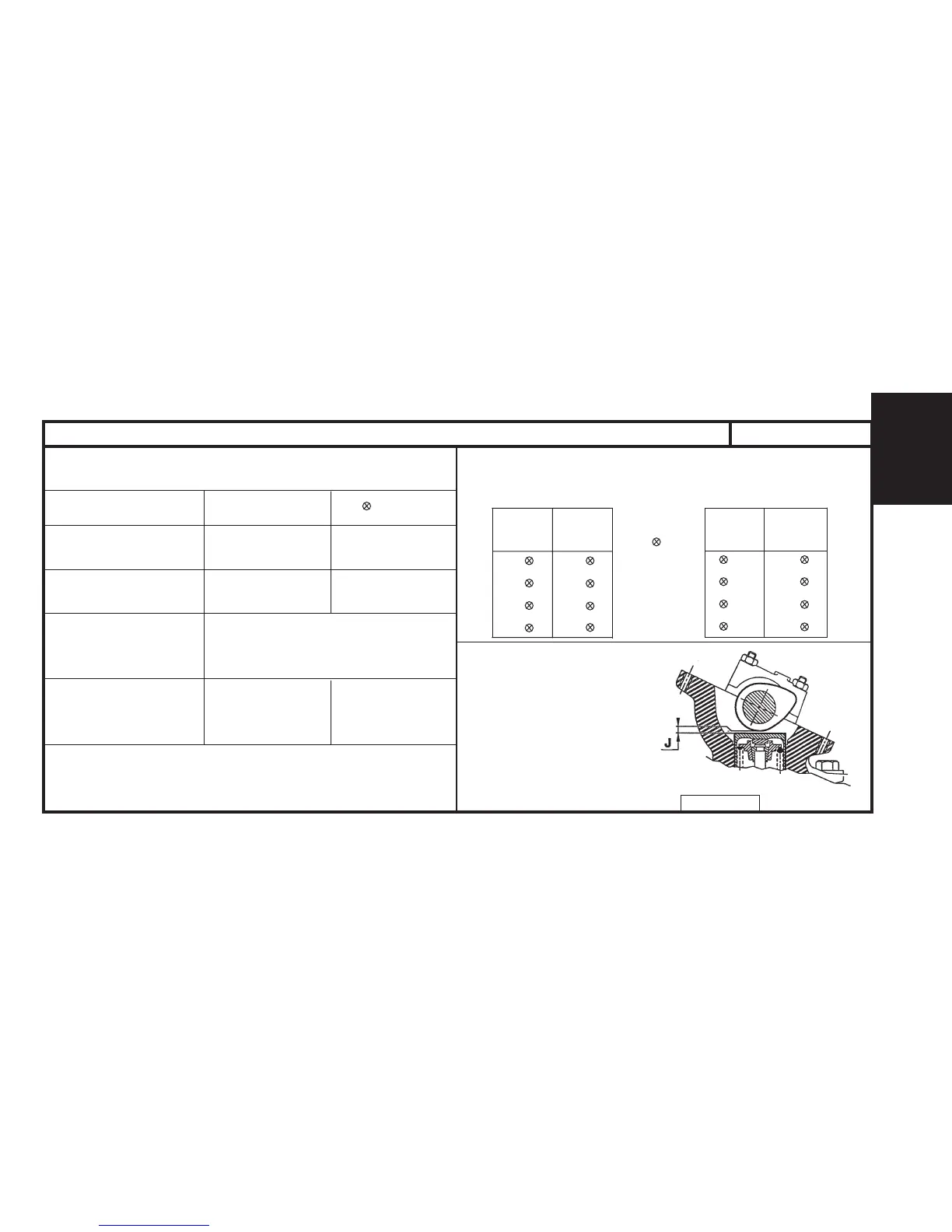

VALVE CLEARANCE SETTINGS
The valve clearances must be checked with the engine cold
● Inlet
Petrol All Types
(except 16V - NFU)
NFU
Petrol - 16V
1.4 HDi
1.4 16V HDi
2.0 HDi
Diesel All Types
(except: 1.4 HDi
1.4 16V HDi
2.0 HDi)
0.20 mm ± 0.05
Exhaust
0.40 mm ± 0.05
Hydraulic adjustment
1 mm ± 0.05
1 mm ± 0.05
Rocking
Adjust
1 ● 1
3 ● 3
4 ● 4
2 ● 2
4 ● 4
2 ● 2
1 ● 1
3 ● 3
Inlet
●
Exhaust
Rocking
Valves fully
open
Adjust
1
3
4
2
3 ● 4
4 ● 2
2 ● 1
1 ● 3
Fully open (Exhaust)
POSSIBLE PROCEDURES
For engines with 4 cylinders in a line (1-3-4-2 )
Engines without hydraulic
adjustment : the clearance (J)
should be checked opposite
the cam.
B1DP13QC
0.15 mm ± 0.08
0.30 mm ± 0.08
