121
ENGINE
XSARA - XSARA PICASSO
AUXILIARY EQUIPMENT DRIVE BELT
Engines : RHY - RHZ
Without air conditioning (continued)
REFITTING.
Re-used belt

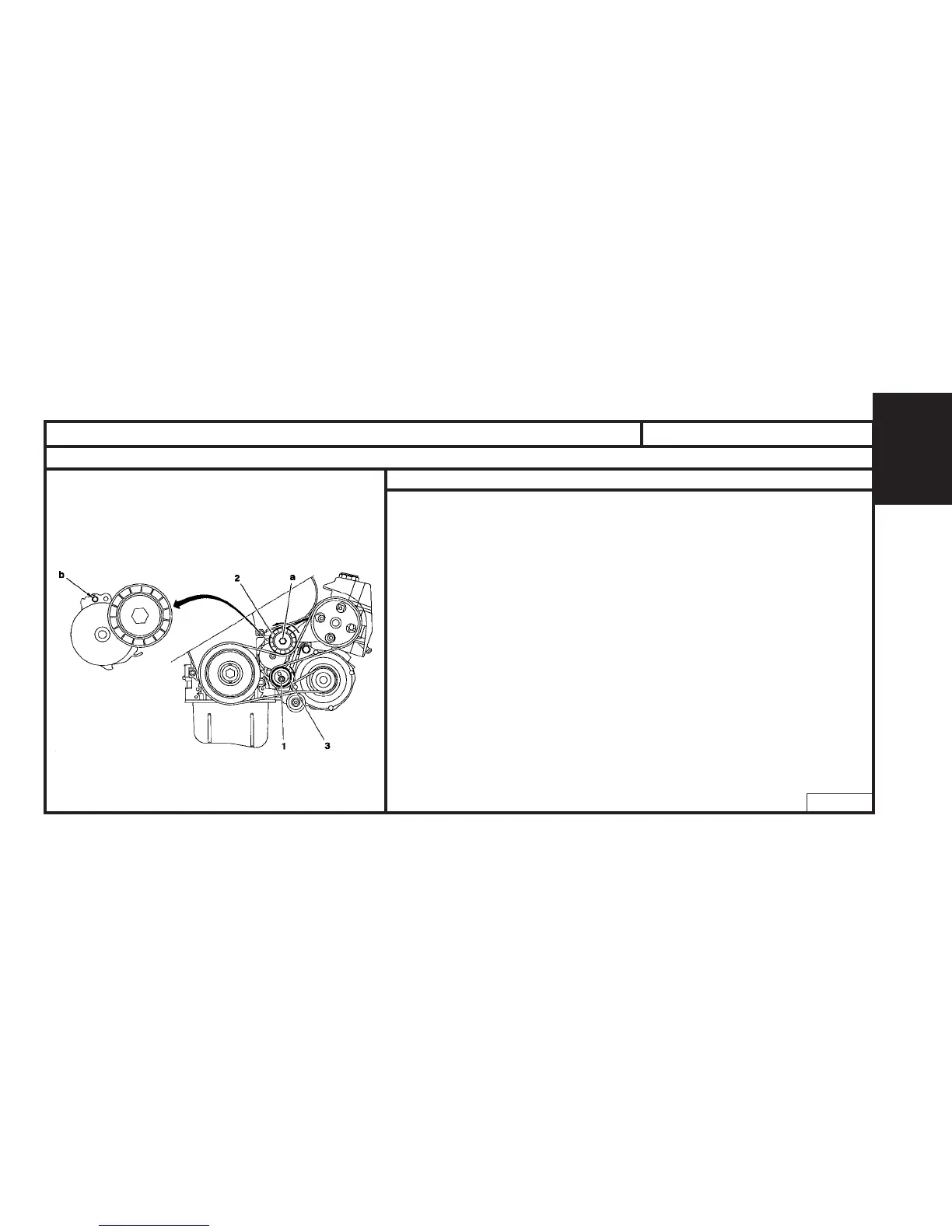

- Compress the tensioner roller (2) by action at « a » (in anti-clockwise direction), tool [4].
- Refit the belt.
WARNING : Respect the belt-fitting direction.
Remove the tool [4].
New belt
Refit the belt.
- Turn the eccentric roller (3), tool [1] (clockwise) to free the tool [2] from its pegging
at « b ».
- Hold the eccentric roller (3), tool [1], and tighten the screw (1) to 4.3 m.daN.
Remove the tool [2].
- Rotate the crankshaft 4 times in the direction of rotation.
- Check that it is possible to peg at « b », tool [3].
- If not possible to peg, restart the adjustment.
B1BP1YMD
