ENGINE
149
CHECKING AND SETTING THE VALVE TIMING
Engines : 8HX - 8HW

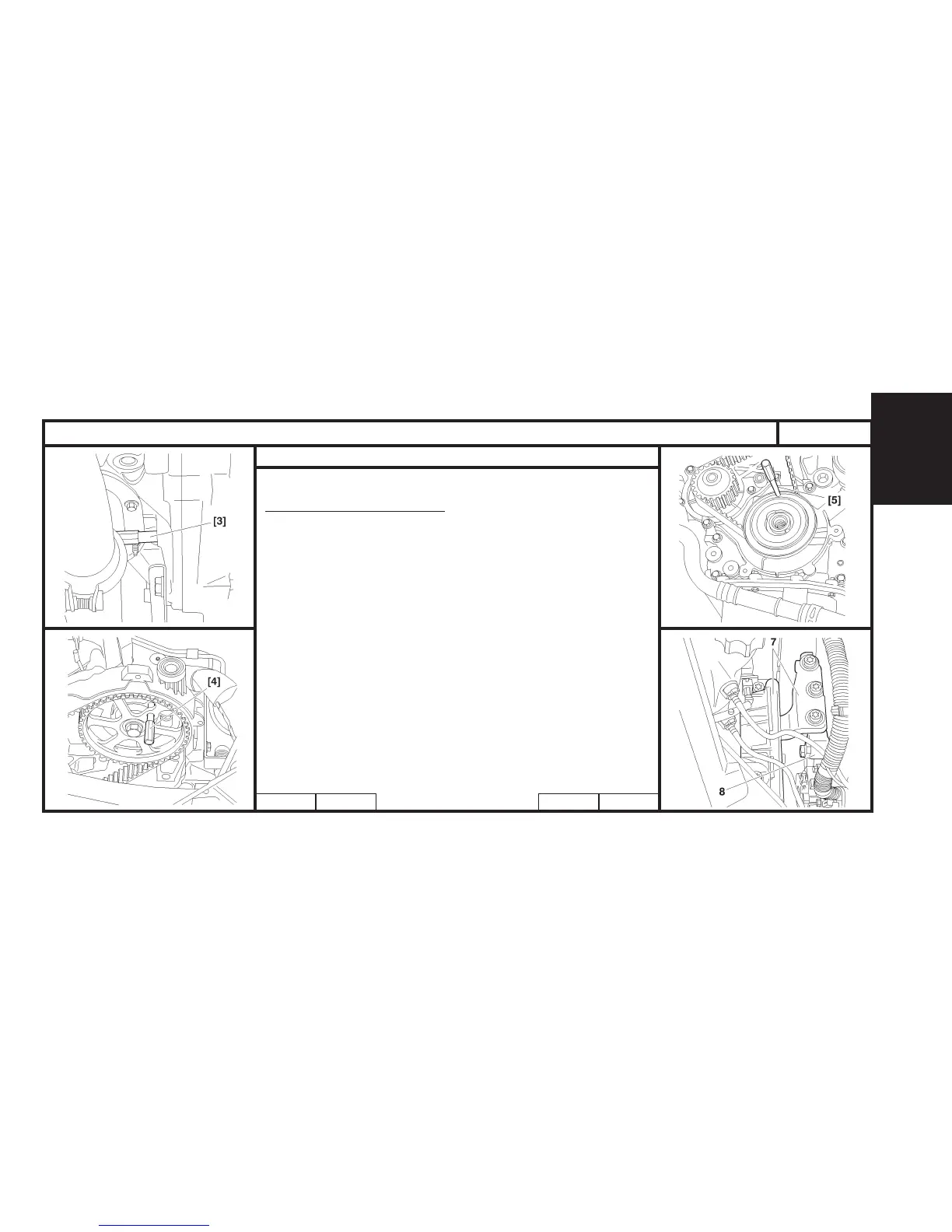

Setting the timing (continued).
Remove the tool [3].
Rotate the engine by means of the crankshaft pinion screw (2)
(clockwise), to bring it to the pegging position.
Peg the camshaft pulley, using tool [4].
Peg :
- The crankshaft pinion (6), using tool [5].
- The high pressure pump pinion, using tool [5].
Support the engine with the aid of a roller jack equipped with a chock.
Remove:
- The RH engine support (7).
- The intermediate engine support (right hand side) (8).
