ENGINE
151
CHECKING AND SETTING THE VALVE TIMING
Engines : 8HX - 8HW
B1EP18JD
Setting the timing (continued).
NOTE : Screw (9) slackened.

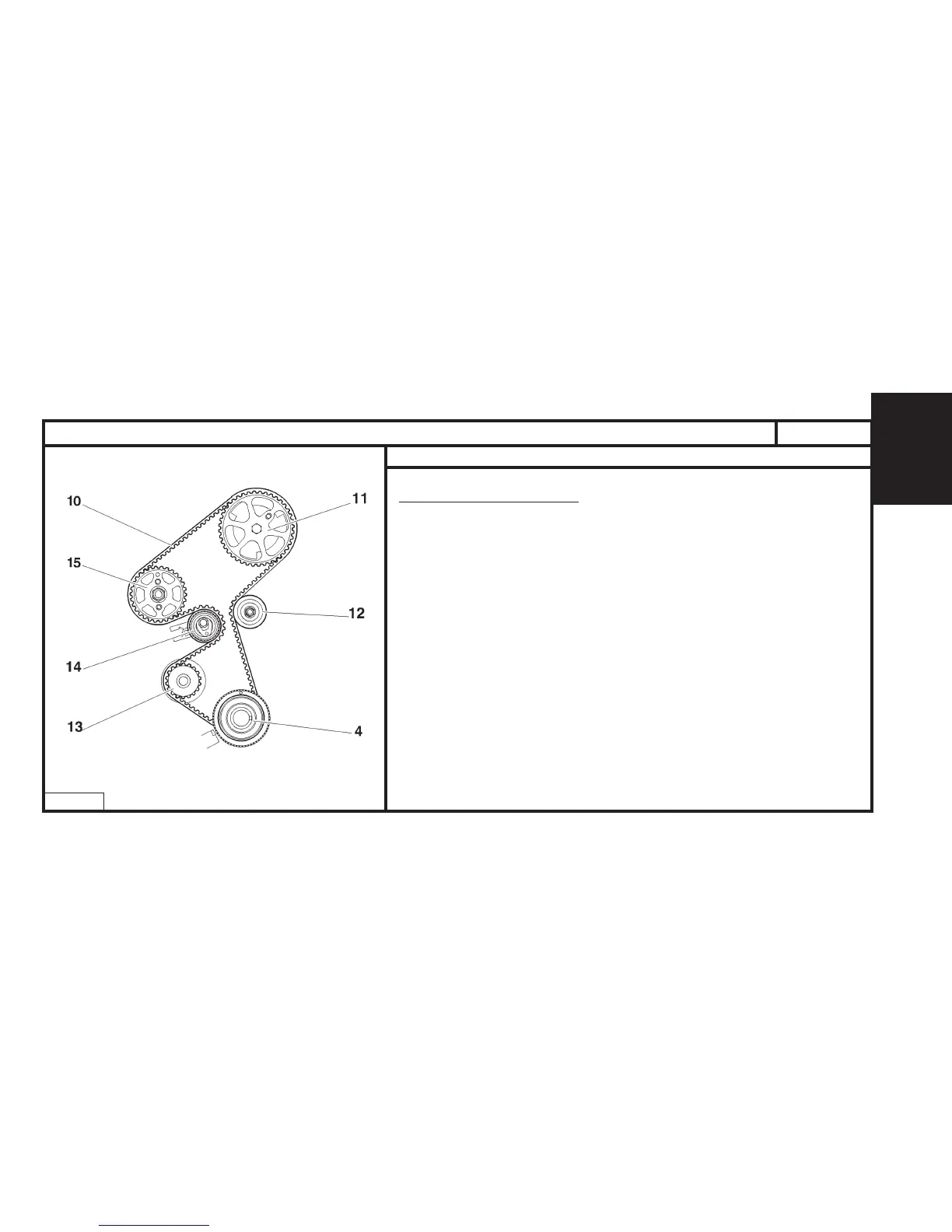

Position the timing belt (10) observing the following sequence:
Crankshaft pinion (4).
Guide roller (12).
Camshaft pulley (11), (check that the belt is held correctly against the roller).
Coolant pump pinion (13).
Fuel high pressure pump pulley (15).
Tensioner roller (14).
C3
