ENGINE
155
CHECKING AND SETTING THE VALVE TIMING
Engines : 8HY - 8HV
B1BP2N1C B1BP2N2C

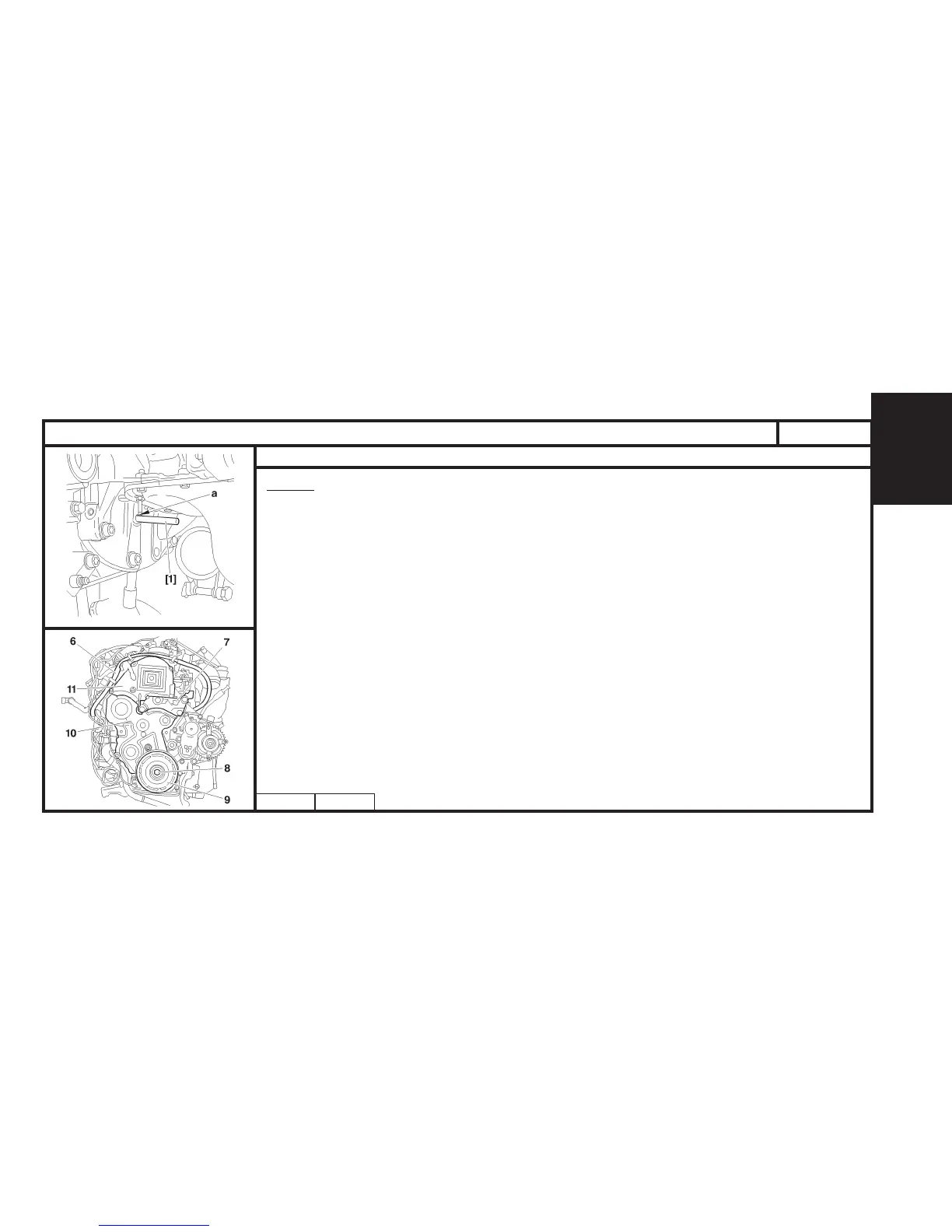

Checks.
Rotate the engine to engage it (normal direction of rotation).
Immobilise the engine flywheel at «a», using tool [1].
Move aside the harness (6).
Remove:
- The engine support (7).
- The screw (8).
- The pulley (9).
- The lower timing cover (10).
- The upper timing cover (11).
- The tool [1].
