CITROEN C3 2003 - Page 187

ENGINE
183
XSARA

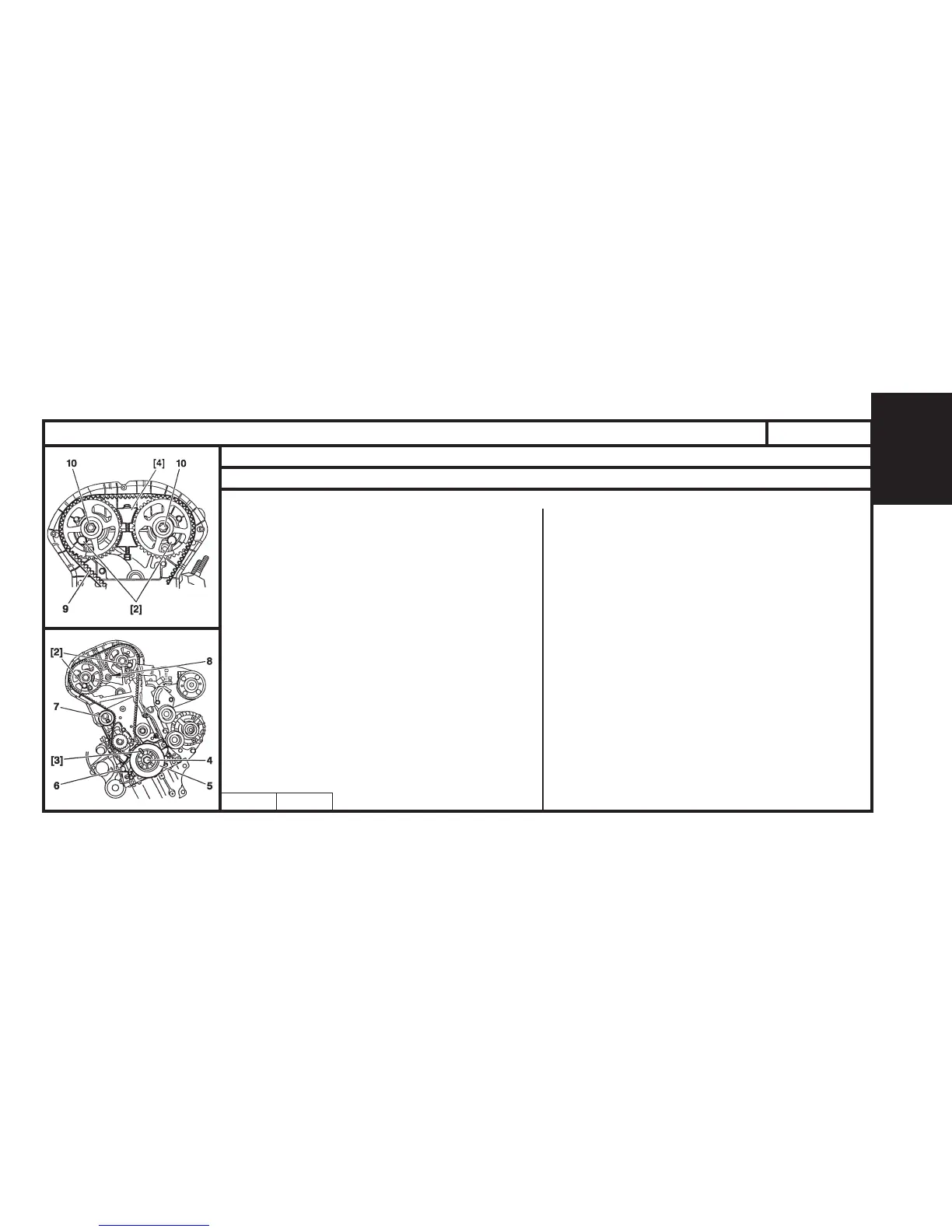

CHECKING AND SETTING THE VALVE TIMING
Engine : RFS
Refit :
- The pulley (5).
- The screw (4) (Tighten moderately).
- The peg [3].
Remove :
- The tool [6].
- The studs (8).
- Fit the tool [4].
- Loosen the screws (10).
- Remove the tool [4].
- Slacken the tensioner roller (7).
- Remove the belt (9).
Peg the crankshaft using tool [3].
- Peg the camshaft pulleys using tool [2].
- Lock the flywheel using the tool [6].
Remove :
- The peg [3].
- The screw (4) (Brush the screw thread).
- The pulley (5).
- The lower cover (6).
B1EP120C
B1EP11ZC
Setting the valve timing.
