ENGINE
205

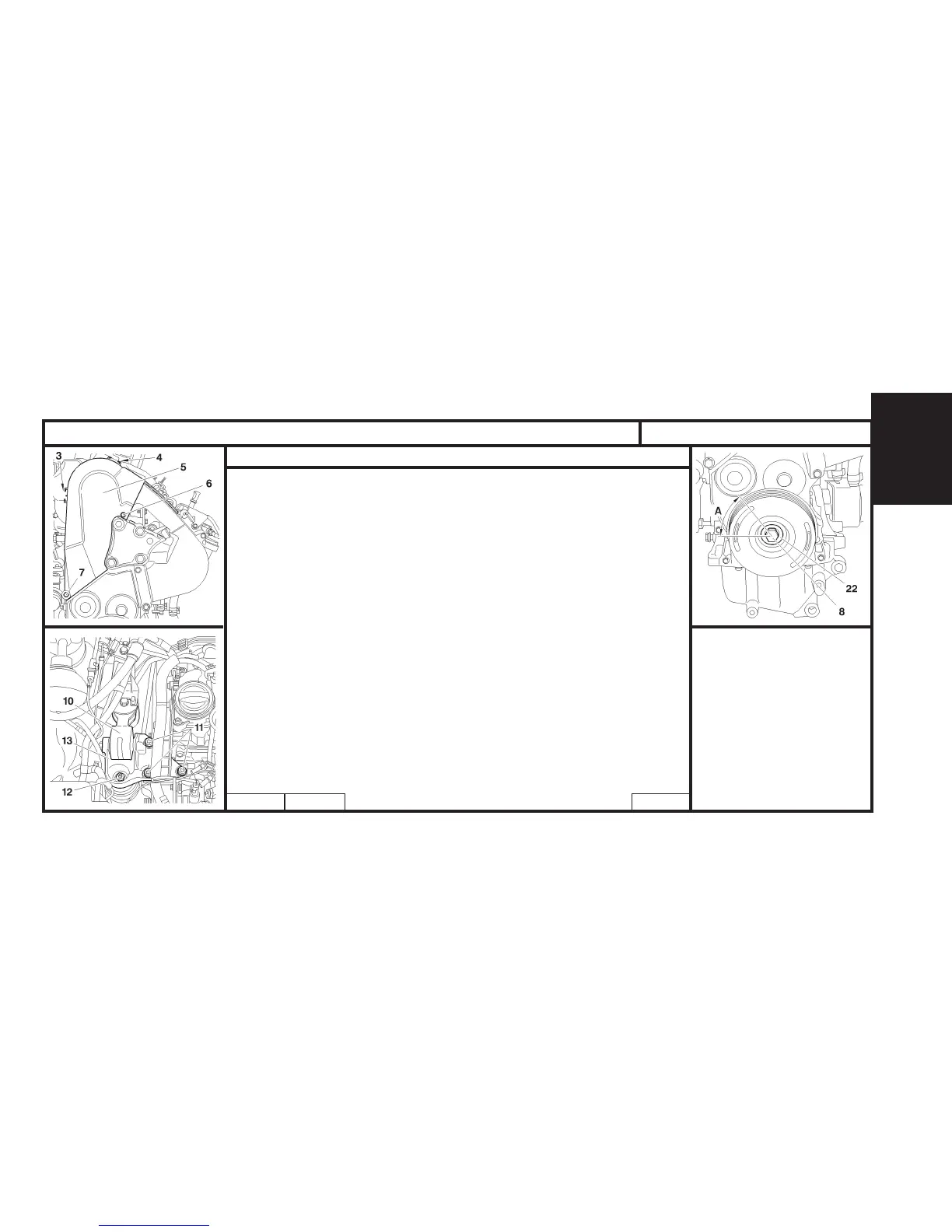

CHECKING AND SETTING THE VALVE TIMING
Engines : RHY - RHZ N° RPO 9128 #
Remove :
Tools [3] and [5].
Screw (7) and the spacer.
Refit :
The lower, intermediate and upper covers (5).
Screw (7), tighten to 1,5 ± 0,1 m.daN.
Screws (3), (4) and (6).
The bracket (13).
Screws (11), tighten to 6,1 ± 0,5 m.daN.
The nut (12), tighten to 4,5 ± 0,5 m.daN.
Fit the bearing shell (10).
Take away the workshop hoist.
Clip the fuel delivery and return pipes.
Remove the tool [7].
Couple :
The fuel delivery pipe (12).
The fuel return pipe (1).
Coat the screw (8) with loctite FRENETANCH.
Refit the tool [6] and the screw (8) with the washer (22),
Tighten to 7 ± 0,2 m.daN and angular tighten to A= 60°±5°
Refit the torque reaction rod on the lower engine support.
Remove the tool [6].
Reposition and reclip the cooling hose.
Complete the refitting of components in reverse order to removal.
B1EP1A7C
B1BP2R4C
B1EP1ADC
XSARA - XSARA PICASSO
