CLUTCH : CHECKS AND ADJUSTMENTS
B2BP03CD
Push-action clutch with automatic adjustment (non-adjustable)
WJY
Gearbox
Engines
BE4/5

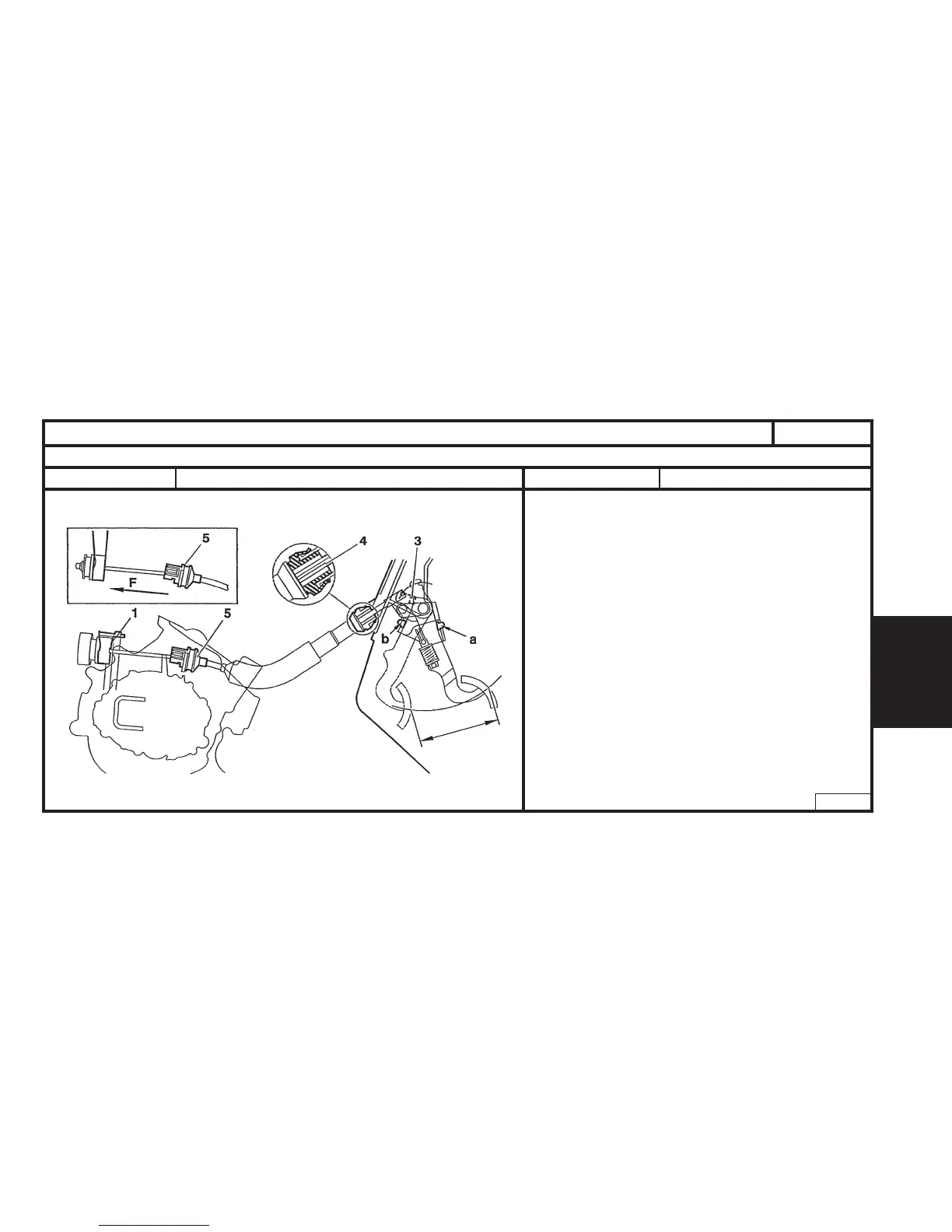

Refitting the clutch cable.
- Set the pedal to the high position (contact at A).
- Attach the cable end-piece to the pedal.
- Refit a new clip (3) to the pedal.
- Fit the end-piece (4) to the bulkhead (G6 grease).
- Clip the end-piece (5) to the gearbox.
- Refit the cable to the lever (1).
- Depress the clutch cable several times to set the
assembly in place.
- Check that the end-piece (4) is properly fitted to the
bulkhead.
- Check the operation of the automatic adjusting device.
1) Pull the lever (in direction F), the lever must move when
pulled by hand.
2) Press the clutch pedal very lightly and repeat the same
operation. The lever should not move back.
