AXLES
SUSPENSION
STEERING
WARNING : Saxo all types except diesel without aircon
POWER-ASSISTED STEERING (continued)SAXO - All Types

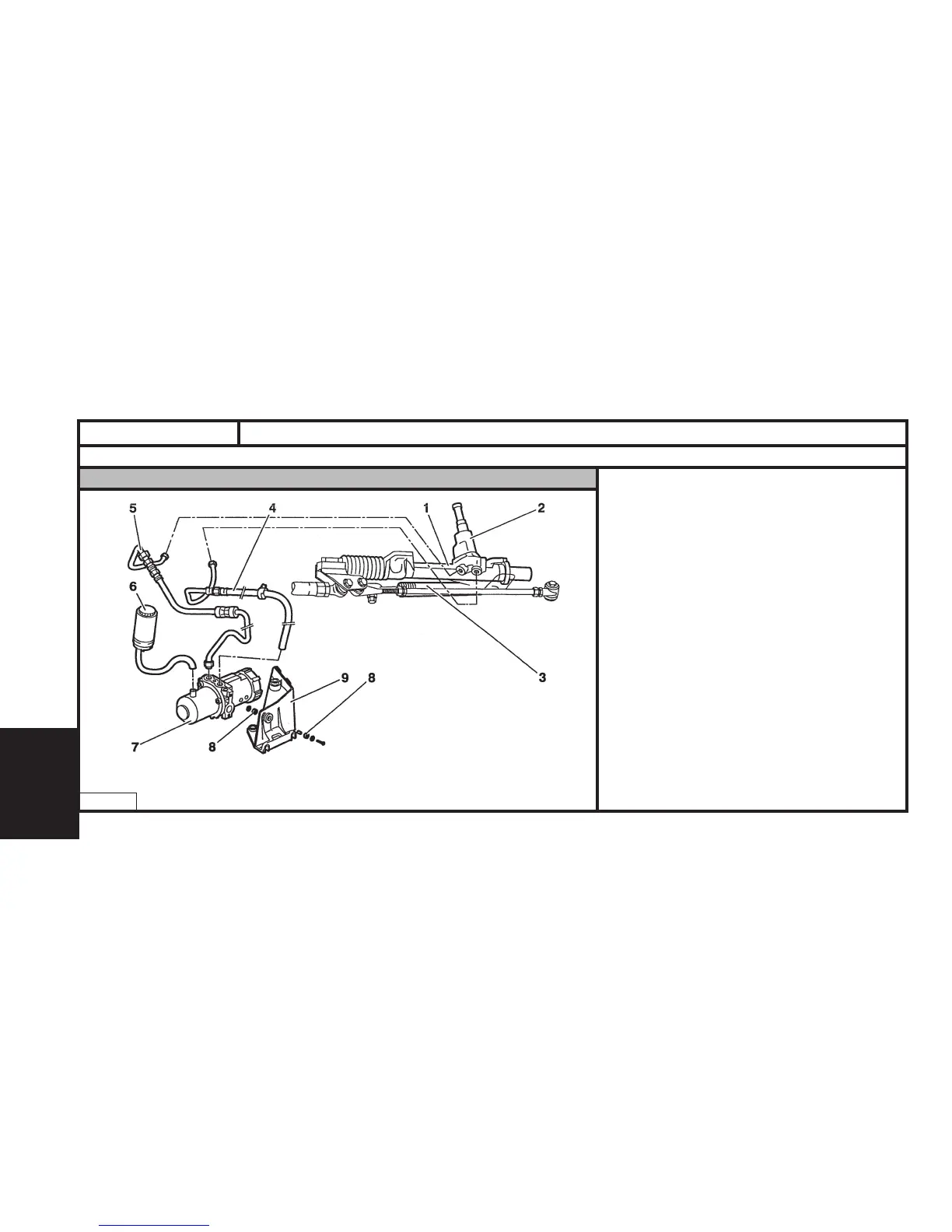

Power steering system
1 - Power steering
2 - Oil dispensing valve
3 - Power-assisted steering ram
4 - Low pressure pipe
5 - High pressure pipe
6 - Upper reservoir
7 - Power steering electro-pump unit and built-in
lower reservoir
8 - Flexible mounting
9 - Electro-pump unit bracket
Tightening torque (m.daN).
Pump support fixing 2
Pump fixing to support 2
High pressure pump
Electro-pump connection 2
Power steering valve connection 2,5
Low pressure pump
Electro-pump connection 2,5
Power steering valve connection 2,5
B3EP09UD
Note : Fluid type TOTAL Fluide ATX capacity : 0.950 L.
