81
ENGINE
CYLINDER HEAD (continued)
Engines : HDZ – HFX – KFW - NFT – NFV - NFX – NFU – VJX

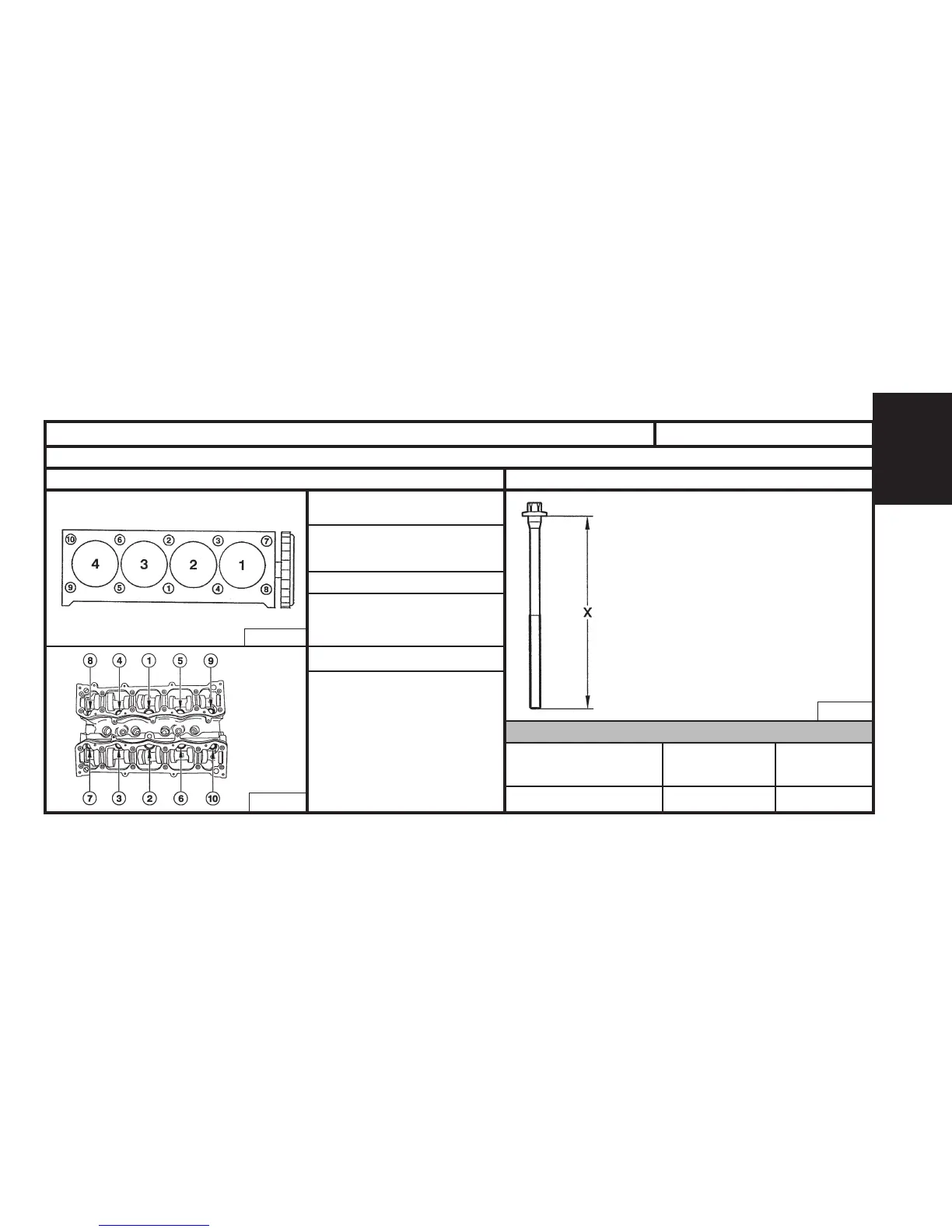

Cylinder head tightening (m.daN) Cylinder head bolts
X = MAXIMUM reusable length
Note : Oil the threads and under the
heads of the cylinder head bolts.
(Use engine oil or Molykote G Rapid Plus).
- Pre-tightening 2
- Angular tightening 260° ± 5°
- Pre-tightening 2
- Angular tightening 240° ± 5°
- Pre-tightening 4
- Angular tightening 300° ± 5°
B1DP059C
B1BP10LC
NFU - NFX
VJX
HDZ-HFX-KFW-NFV-NFT
HDZ-HFX-KFW-NFV-NFT
X= 175.5 ± 0.5 mm X = 197.1 mm X = 122.6 mm
VJX
NFU-NFX
B1DP13NC
SAXO - XSARA - PICASSO
