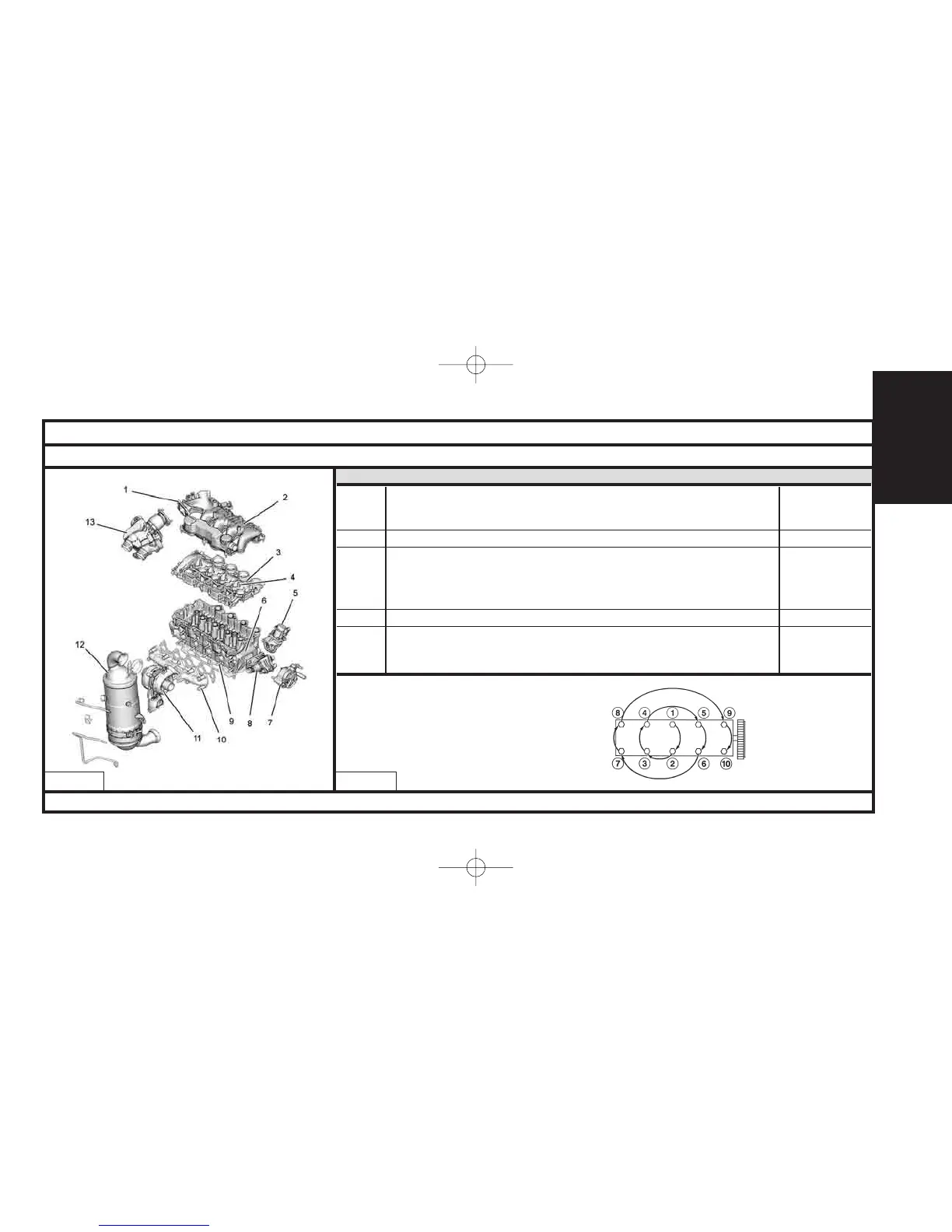

ENGINES
SPECIAL FEATURES: TIGHTENING TORQUES
Cylinder head
Camshaft bearing cover studs
4 Pre-tightening 0,5 ± 0,1
Tightening 1 ± 0,1
5 Exhaust gas recycling electrovalve (EGR) 1 ± 0,1
Cylinder head
6 Pre-tightening 2 ± 0,2
Tightening 4 ± 0,5
Angular tightening 260° ± 5°
7Vacuum pump 1,8 ± 0,2
Coolant outlet housing
8 Pre-tightening 0,3 ± 0,1
Tightening 0,7 ± 0,1
Engines: 9HY - 9HZ
B1DP05BC
(6) Sequence for tightening the cylinder head bolts
B1BP39XP
