CITROEN C4 2004 - Air Conditioning System R 134.A

405
AIR
CONDITIONING

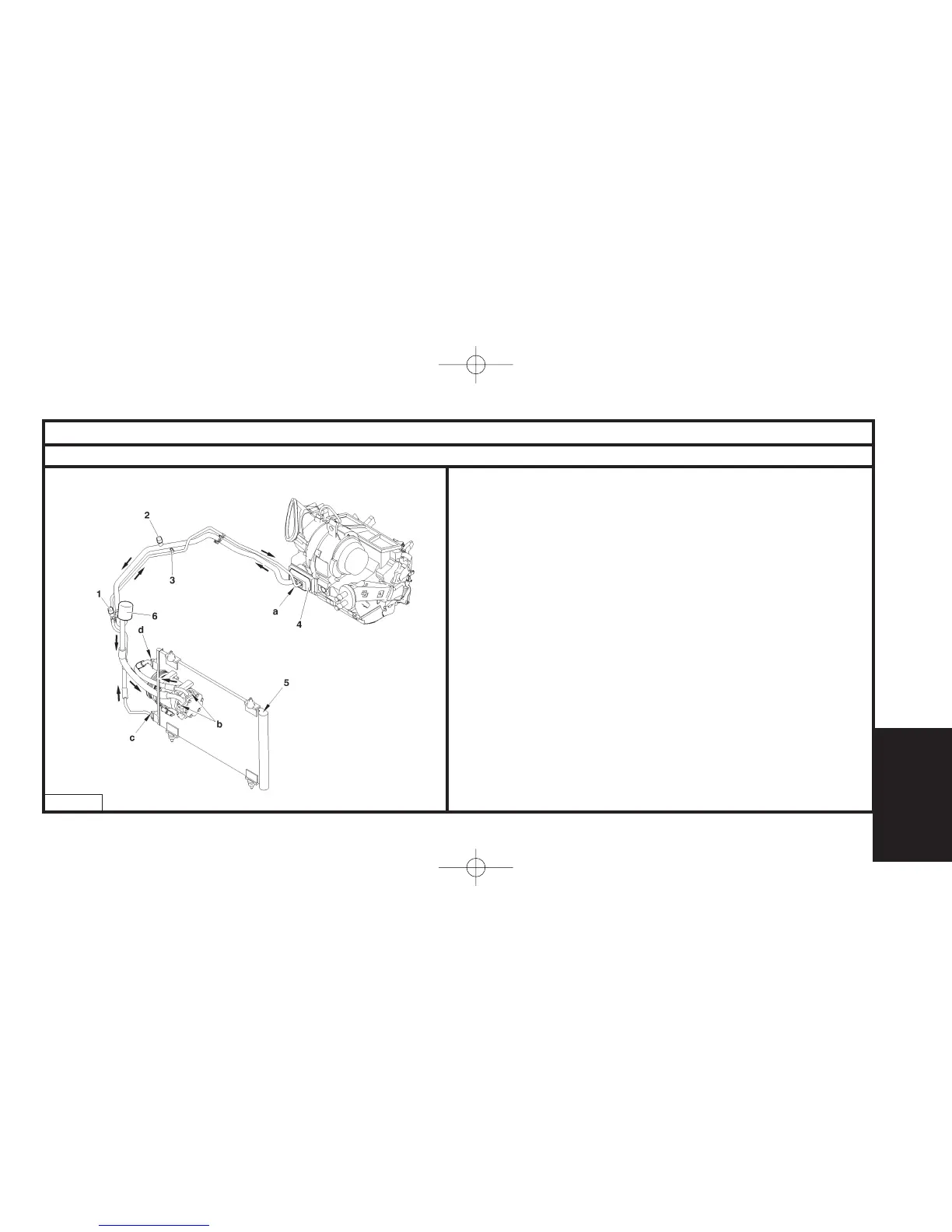

(1) High pressure valve
(2) Low pressure valve
(3) Pressostat (tighten to 0,6 m.daN)
(4) Aircon pressure reducer
(5) Filtering and drying cartridge
(6) Buffer capacity
«a» Outlet and inlet of the aircon pressure reducer, tighten to 0,8 m.daN
«b» Outlet and inlet of the aircon compressor, tighten to 0,7 m.daN
«c» and «d» Outlet and inlet of the aircon condenser, tighten to 0,6 m.daN
AIR CONDITIONING SYSTEM R 134.a
C5HP1BHP
Engines: KFU - NFU
