CITROEN C4 2004 - Steering Mechanism with Integral Ram

354
AXLES
SUSPENSION
STEERING

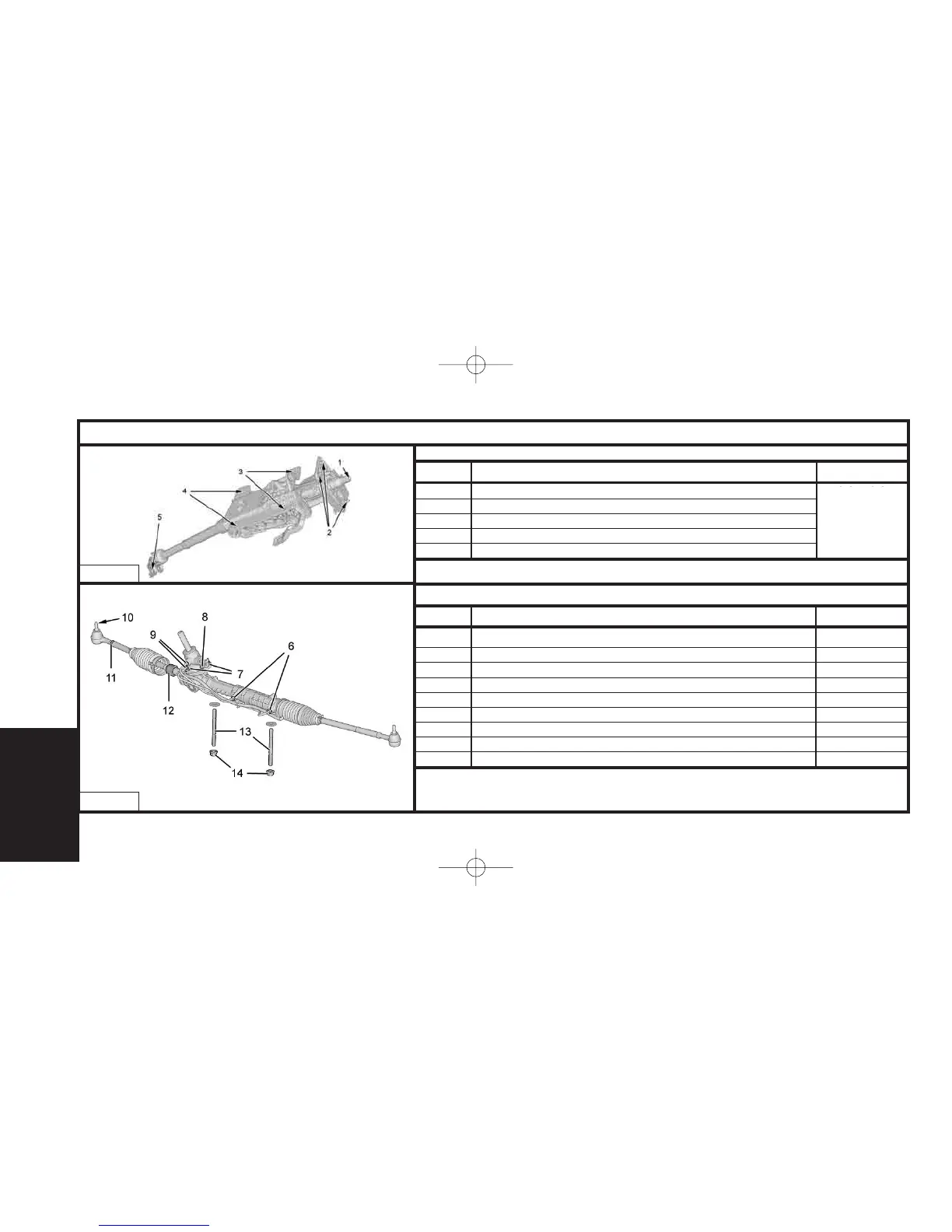

TIGHTENING TORQUES: POWER-ASSISTED STEERING
Steering column
Ref. Description Tightening
1 Fixed central controls steering wheel screw 2,2 ± 0,2
2 Steering column interface nuts
3 Upper nuts
4 Lower nuts
5 Fixing of steering cardan on valve stem
Steering mechanism with integral ram
Ref. Description Tightening
6 Union of hydraulic pipe on ram 0,8 ± 0,1
7 Fixing of distributor valve on steering mechanism 1,5 ± 0,1
8 Fixing of bracket on distributor valve 2 ± 0,2
9 Union of hydraulic pipe on distributor valve 0,8 ± 0,1
10 Steering ball-joint nut 3,5 ± 0,3
11 Locking nut for adjustment of steering track rods 5,5 ± 0,5
12 Fixing of ball-joint on steering rack 7 ± 0,7
13 Stud on steering mechanism 0,8 ± 0,1
14 Nut fixing mechanism on subframe 8 ± 0,8
B3EP177D
B3EP176D
2,2 ± 0,2
