58

ENGINES

CYLINDER HEAD

Engine: KFU

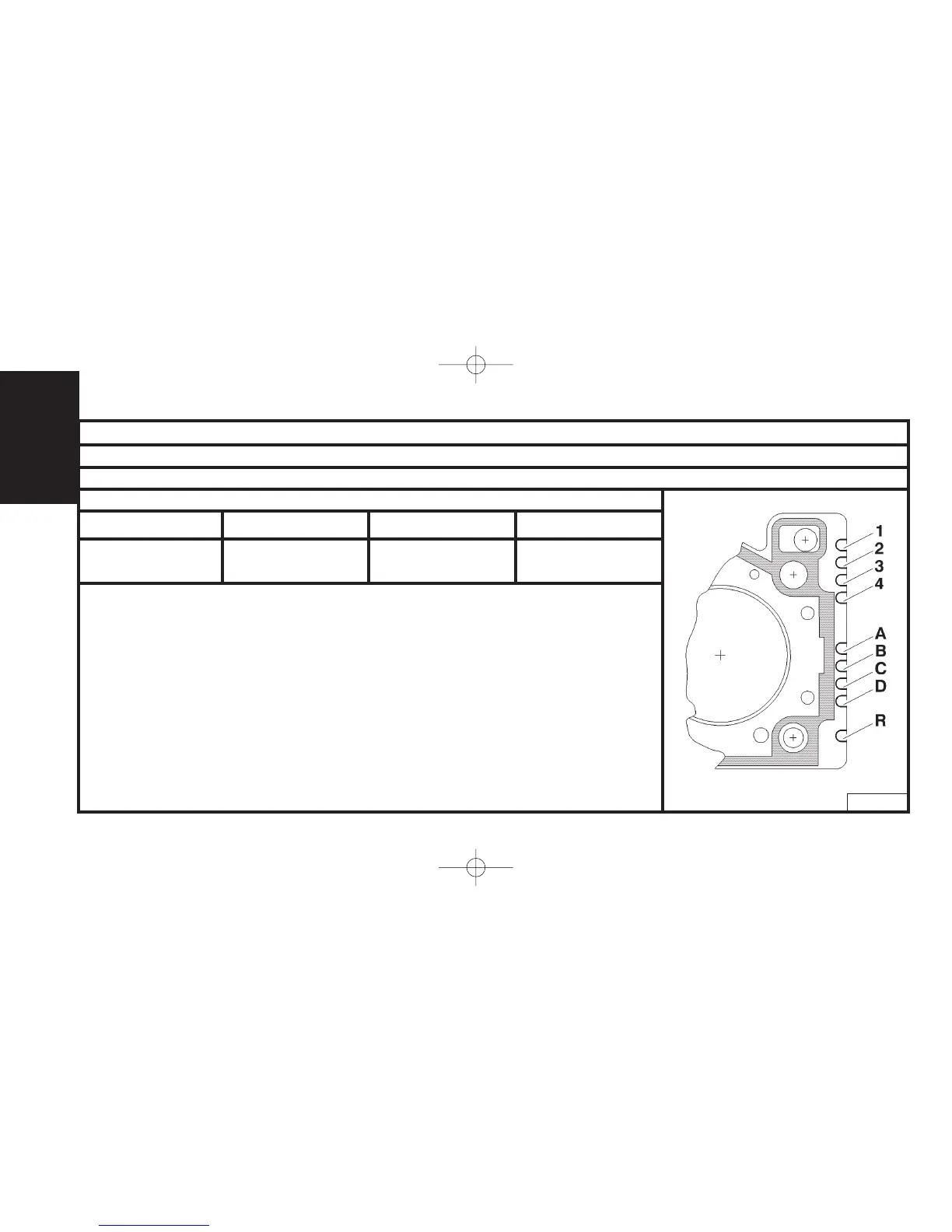

Identification of cylinder head gasket

Engine types

KFU

Thicknesses (Standard)

1,2 ± 0,1

Thicknesses (repair)

1,5 ± 0,1

Thickness references

3

Engine type : 1 to 4

Supplier (MEILLOR) : A B D

Cylinder head gasket without asbestos : Ref. C

Repair ref. : R

B1BP10KC

UK-C4-page048-130-2004 15/11/04 9:23 Page 58
