CITROEN C4 2004 - General Specifications: Rear Axle

342
AXLES
SUSPENSION
STEERING

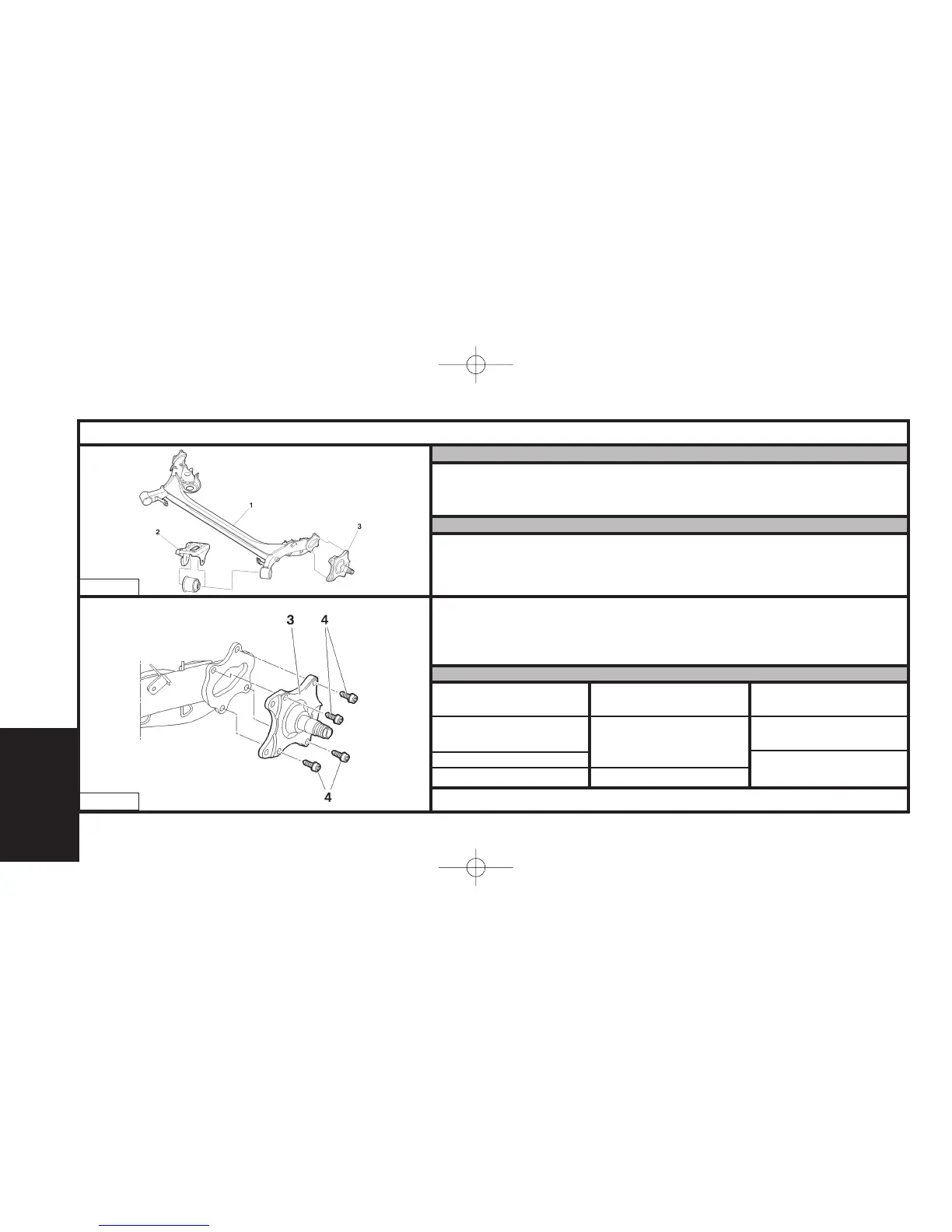

GENERAL SPECIFICATIONS: REAR AXLE
Subframe
(1) Rear axle crossmember
(2) Yo ke fixing rear axle crossmember on body
Rear axle machine-welded, of trailing arm type with rear axle deformable.
Stub axle
(3) Stub axle
Stub axle connected on the rear axle, fixed by 4 screws (4).
Diameter of stub axle: 25 mm.
Anti-roll bar.
The anti-roll bar is inside the rear axle crossmember.
The anti-roll bar is a component that cannot be removed (extremities welded on the
rear axle crossmember).
Anti-roll bars
Engines Diameter (mm) Crossmember plate
(interior x exterior) thickness (mm)
KFU-NFU-RFJ-RFN
9HX-9HY-9HZ 21x27
5
RFK
6
RHR 21x
B3DP0BGC
B3DP0BFD
