ENGINES
CYLINDER HEAD
Engines: 9HX - 9HY - 9HZ

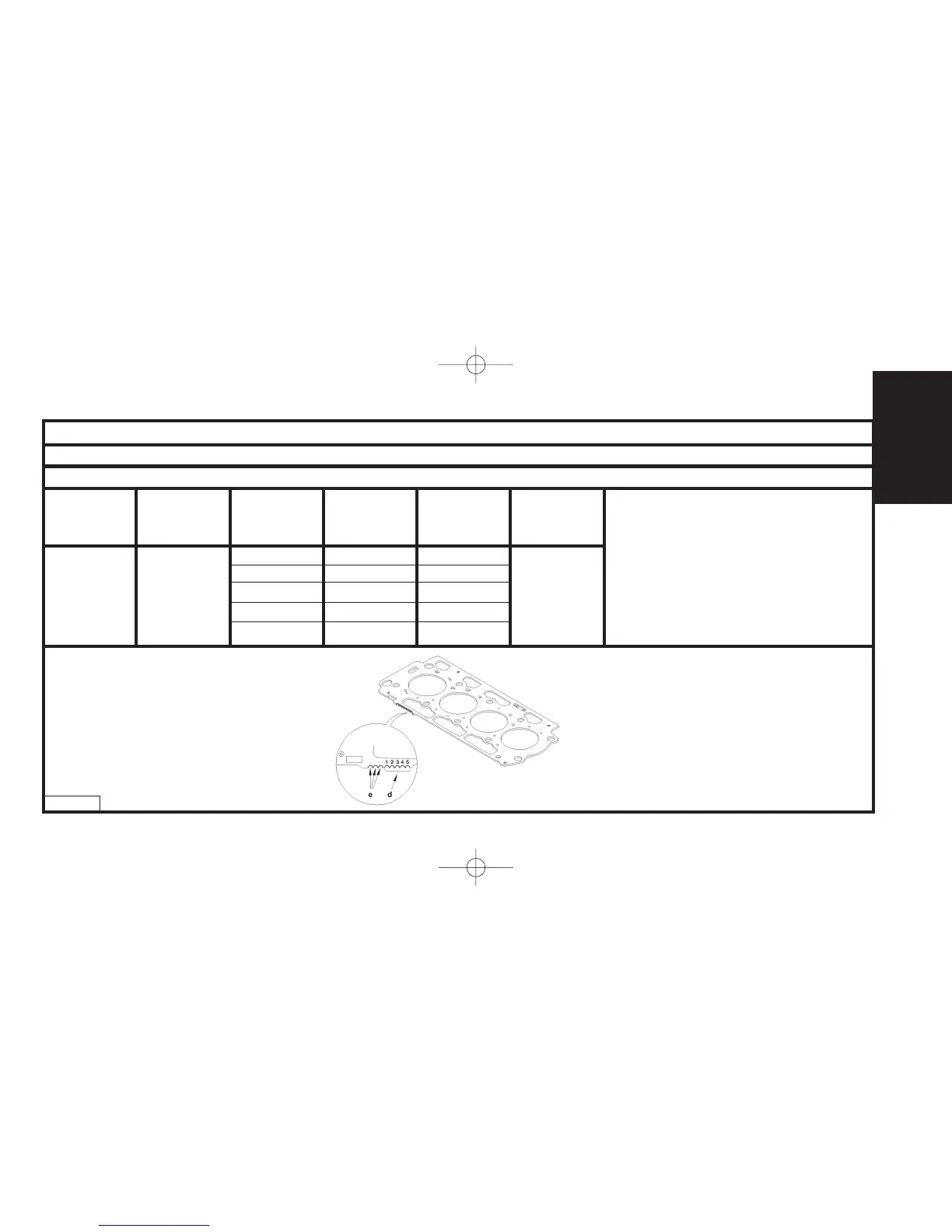

Identification of the cylinder head gasket
B1DP1HOD
Piston No. of No. of
Engine types Supplier standproud thicknesses notches notches
(mm) (mm) at d at e
0,685 to 0,734 1,35 1
9HX 0,533 to 0,634 1,25 2
9HY FEDERAL 0,635 to 0,684 1,30 3 3
9HZ MOGUL 0,735 to 0,784 1,40 4
0,785 to 0,886 1,45 5
Type of gasket: Metallic multilayer
«d» Thickness reference
«e» Engine reference
