67

ENGINES

67

CYLINDER HEAD

Engine: NFU

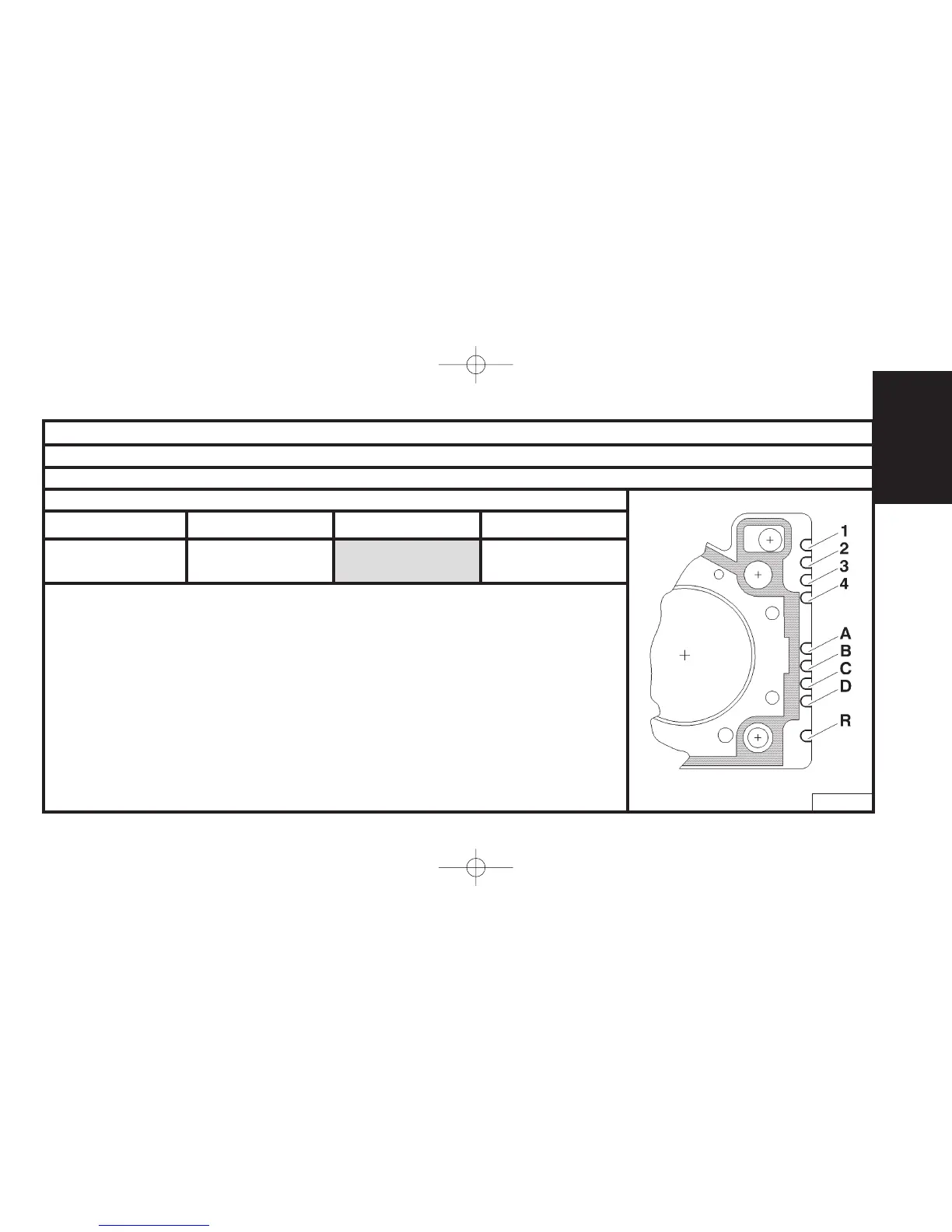

Identification of cylinder head gasket

Engine types

NFU

Thicknesses (Standard)

0,66 ± 0,04

Thicknesses (repair) Thickness references

4

Engine type : 1 à 4

Supplier (MEILLOR) : A B D

Cylinder head gasket without asbestos : Ref. C

Repair ref. : R

B1BP10KC

UK-C4-page048-130-2004 15/11/04 9:23 Page 67
